Installation, operating and maintenance instructions
English
MPC...D.F4 T

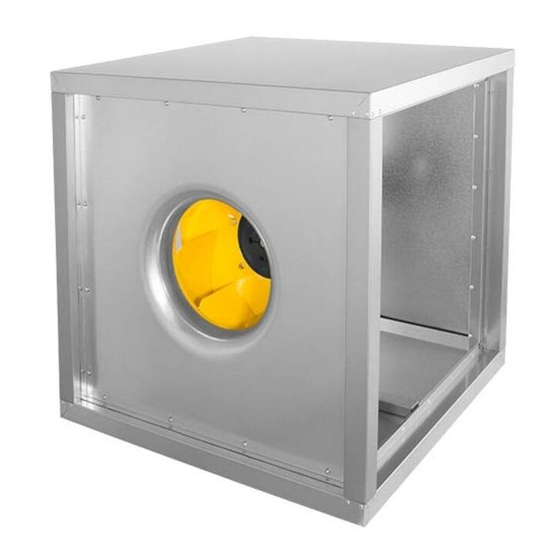

Example configuration shown
CONTENTS
FOREWORD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
1.
IMPORTANT INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
2.
GENERAL SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
3.
ADHERE TO THE FOLLOWING INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
4.
PRODUCT INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
5.
DELIVERY CONTENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
6.
TECHNICAL DATA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
7.
DIMENSIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
8.
DATA IN ACCORDANCE WITH ERP DIRECTIVE 327/2011 OF THE EUROPEAN PARLIAMENT . . . . . . . . . . . . . . . . 9
9.
TRANSPORT AND STORAGE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
10.
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
11.
ELECTRICAL CONNECTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
12.
COMMISSIONING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
13.
MAINTENANCE AND CLEANING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
14.
LIFETIME AND DISPOSAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
15.
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
16.
ruck Ventilatoren GmbH
Max-Planck-Str. 5
D-97944 Boxberg-Windischbuch
Tel.
+49 (0)7930 9211-300
Fax
+49 (0)7930 9211-166
info@ruck.eu
www.ruck.eu
Smoke extract fan
for exhaust air
applications
The original instructions were created in the German language.
2018
Information updated
print 02.12.2019
Subject to change
www.ruck.eu
Advertisement
Table of Contents
Related Manuals for Ruck Ventilatoren MPC D.F4 T Series
Summary of Contents for Ruck Ventilatoren MPC D.F4 T Series
-
Page 1: Table Of Contents
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 ruck Ventilatoren GmbH Max-Planck-Str. -
Page 2: Foreword
FOREWORD Dear customers, Thank you for choosing our device. Before operating the unit, please read carefully these installation, operating and maintenance instructions. If you have any questions, please contact: (Contact details see page 1) The data provided in these installation, operating and maintenance instructions are for the product description only. A statement about a certain condition or a suitability for a certain application cannot be derived from our information. -
Page 3: General Safety Instructions
2.2. Provisions and regulations When properly installed and operated, the device complies with the applicable standards and EU Directive at the time of its placing on the market. In addition, observe generally valid, legal and other binding regulations of the European or national legislation as well as the regulations in your country for accident prevention and environmental protection. - Page 4 3.1. Intended use Our devices are incomplete machineries as defined in the EU Machinery Directive 2006/42/EC (partly completed ma- chinery). The product is a not ready-for-use machine in terms of the machine directive. It is intended exclusively for installation in a machine or in ventilation equipment and installations or for combination with other components to form a machinery or installation.
- Page 5 Safety sign (warning Consequence triangle) General warning! Indicates possible hazardous situations. Failure to observe the warnings may result in perso- nal injury and / or damage to property. Electricity warning (hazardous voltage)! Indicates possible hazards due to electricity. Failure to observe the warnings may result in death, injury and/or damage to property.
-
Page 6: Adhere To The Following Instructions
ADHERE TO THE FOLLOWING INSTRUCTIONS 4.1. General instructions ■ Persons who assemble, operate, disassemble or maintain our devices must not be under the influence of alcohol, drugs or pharmaceuticals that may affect perception and responsiveness. ■ Responsibilities for the operation, maintenance and regulation of the product should be clearly determined and observed so that there can be no unclear areas of responsibility with regard to safety. -
Page 7: Delivery Contents
ved, thereby three different discharge directions are possible (left, right or up). The interior of the housing is completely smooth without protruding screws. The side walls are screwed into the housing frame, so that no screws protrude into the housing interior. Variable design of the discharge, this can be carried out on site by placing the inlet spigot based on the choice of the air flow direction. -
Page 8: Technical Data
TECHNICAL DATA Product name °C °C dB(A) dB(A) dB(A) MPC 225 D2 F4 T30 146426 400V 3~Y 146221 35,0 MPC 250 D2 F4 T30 146434 400V 3~Y 146221 35,0 MPC 280 D2 F4 T30 146443 400V 3~Y 146221 36,0 MPC 315 D2 F4 T30 146446 400V 3~Y 1208... -
Page 9: Data In Accordance With Erp Directive 327/2011 Of The European Parliament
! Year of manufacture see nameplate Manufacturer name / Commercial registration number / Place of establishment ruck Ventilatoren GmbH / Local District Court Mannheim HRB 560366 / Germany Nominal motor power input at optimum energy efficiency point P [kW] 0,33... -
Page 10: Transport And Storage
10. TRANSPORT AND STORAGE Transport and storage should only be performed by specialist personnel in accordance with the assembly and opera- ting manual and regulations in force. The following points should be noted and followed: ■ Check the delivery according to the delivery note to ensure it is complete and correct and check for any damage. Any missing quantities or damage incurred during transport should be confirmed by the carrier. - Page 11 In order to change the discharge side, the panels or a panel must be removed. Discharge right Discharge left Inlet Inlet Rohling_MPC280D4T30 Rohling_MPC280D4T30 Intern General to ruck Ventilatoren Max-Planck-Str. 5 - kg - mm Protection Intern General to ruck Ventilatoren D-97944 Boxberg 1:10 Do not sca Max-Planck-Str.
-
Page 12: Electrical Connection
12. ELECTRICAL CONNECTION • Electricity warning (hazardous voltage)! » Failure to observe the hazard may result in death, injury or damage to property. → Before performing any work on conductive parts, always disconnect the unit completely from the electri- city supply and make sure that it cannot be switched back on again. The electrical installation may only be carried out by qualified electricians in compliance with the installation, operating and maintenance instructions and the applicable national regulations, standards and guidelines: ■... - Page 13 The star circuit must be used if the motor is to be ope- rated directly on the 3-phase supply network with a line voltage of 400V. 140777 Intern Material <nicht festgelegt> General tolerances DIN ISO 2768-mK ruck Ventilatoren Max-Planck-Str. 5 0.001 kg Protection Mark according to ISO16016 D-97944 Boxberg Daniel Andree 12.10.2017...
-
Page 14: Commissioning
12.4. Frequency converter If the fans are placed on the EU market or operated within the EU, they must have a speed control. This is only possible by means of frequency converters. Using other speed controls, such as voltage control, will directly damage the motor. We offer tested and approved frequency converters as accessories. -
Page 15: Maintenance And Cleaning
14. MAINTENANCE AND CLEANING Servicing, troubleshooting and cleaning may only be performed by specialised personnel in accordance with this installation and operating manual and the regulations in force. ■ Make sure that no connections or components are loosened unless the device is disconnected from the mains. -
Page 16: Lifetime And Disposal
14.2. Impeller installation with Taperlock clamping bush The impeller is connected by means of the clamping bush to the shaft end of the drive motor. Assembly 1. Clean all bare surfaces (mating surfaces of the clamping bushings and motor shaft). 2. -
Page 17: Troubleshooting
15.2. Decommissioning and disposal When disassembling, parts under voltage are exposed, which can lead to electric shock when touched. Before dismantling, disconnect the fan from all poles of the mains and secure against being switched on again! Parts and components of the device that have reached their lifetime, e.g. due to wear, corrosion, mechanical stress, fatigue and/or all other, not directly recognizable effects, must be disposed of professionally and properly after disas- sembly in accordance with national and international laws and regulations. - Page 18 Ventilatoren GmbH Max-Planck-Str. 5 D-97944 Boxberg-Windischbuch Tel. +49 (0)7930 9211-300 +49 (0)7930 9211-166 info@ruck.eu www.ruck.eu Information updated print 02.12.2019 mpctg_pb_05_en We reserve the right to make changes Language: English...
