Fountain Components
Item Description
M Weave
Fountain -
Water Feature
M Weave
Fountain -
Spiller Stop
M Weave
Fountain -
Pump House
M Weave
Fountain -
Pump House
Door
M Weave
Fountain - Basin
M Weave
Fountain - Base
Fountain Information:
• Two people are recommended for the installation of this fountain!
• This fountain holds approximately 20 gallons of water.
• This fountain uses a large fountain cover: FTNCOV-LG
• Compatible with Refill Device and LED Kits
• A special stopper is not required to use the refill kit for this fountain.
Pump Information:
OEMPF320 - 320 GPH Pump (16 ft. cord length)
Tools Required:
Bubble Level
Screwdriver
Component
Quantity
Item #
FT-319A
1
FT-319B
1
FT-319C
1
FT-319D
1
FT-319E
1
FT-319F
1

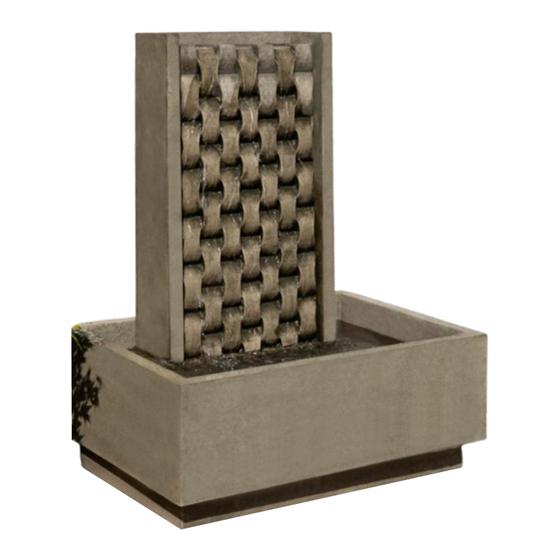

M-Weave Fountain
Assembly Instructions
Pump Kit Parts List
Component
PK300 Pump
(Use adapter indicated)
#7 Drain Stopper
Approx. 8" length of 1/2" black
non-kink tubing
Approx. 1" length of 5/8" clear tubing
Approx. 1" length of 1/2" CPVC pipe
Hose Clamps
FT-319
Proudly
MADE IN USA
Quantity
1
1
1
1
1
Wedges
3
1
rev 10/5/2020
Advertisement
Related Manuals for Campania International FT-319
Summary of Contents for Campania International FT-319
- Page 1 FT-319 M-Weave Fountain Assembly Instructions Fountain Information: • Two people are recommended for the installation of this fountain! • This fountain holds approximately 20 gallons of water. • This fountain uses a large fountain cover: FTNCOV-LG • Compatible with Refill Device and LED Kits •...
- Page 2 FT-319 M-Weave Fountain Assembly Instructions Two people are recommended for the installation of this fountain! Fountain Set-Up: Assembly & Installation - A fountain can be difficult to install without knowing and understanding the steps involved. To ensure your fountain is installed properly, please read our instructions and tips before you begin.
- Page 3 FT-319 M-Weave Fountain Assembly Instructions Step 8 - Place the water feature (FT-319A) on top of the pump cover and ensure that the pump cord exits through the hole provided. Step 9 - Insert the CPVC pipe attached to the preassembled tubing into the coupling protruding from the bottom of the water feature (FT-319A).
- Page 4 Maintenance: Pump Care - The fountain relies heavily on the quality of the pump. A well-maintained pump can last several years. Step 1 - Fully submerge: Ensure the pump is fully submerged at all times to avoid damage. Step 2 - Ensure water level is sufficient: Check water levels regularly as water may evaporate over time, and periodically change water to avoid algae buildup.
