User's manual
Heavy-duty PTO Shaft
61982–61985
64481–64522
Illustration similar, may vary depending on model
Please read and follow the operating instructions and safety information prior to initial operation.
Technical changes reserved!
Illustrations, functional steps, and technical data may deviate insignificantly due to continuous further
developments.
Advertisement
Related Manuals for WilTec 61982
Summary of Contents for WilTec 61982

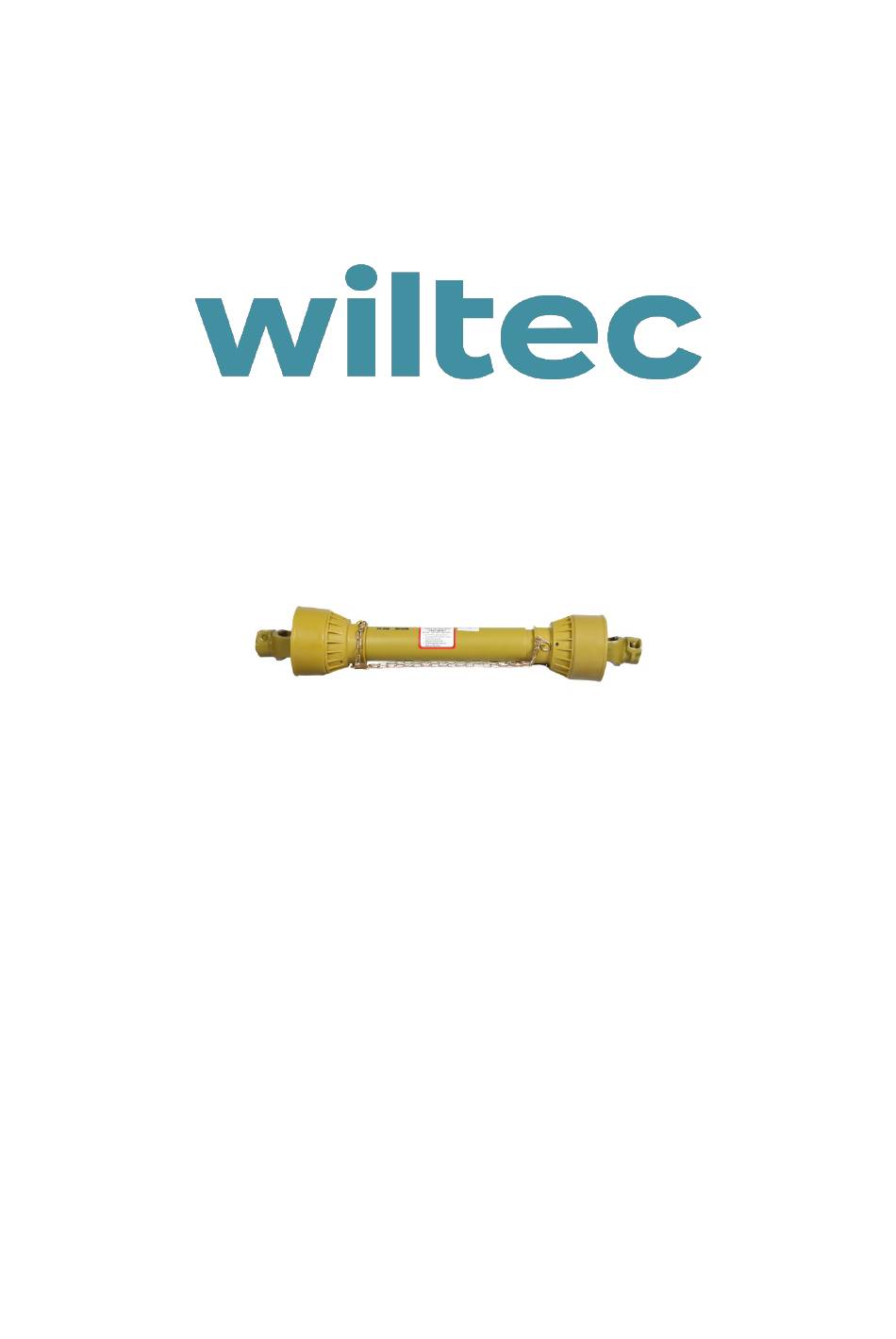

- Page 1 User’s manual Heavy-duty PTO Shaft 61982–61985 64481–64522 Illustration similar, may vary depending on model Please read and follow the operating instructions and safety information prior to initial operation. Technical changes reserved! Illustrations, functional steps, and technical data may deviate insignificantly due to continuous further...
- Page 2 The information contained in this document may alter at any time without prior notice. No part of this document may be copied or otherwise duplicated without prior written consent. All rights reserved. WilTec Wildanger Technik GmbH cannot be held liable for any possible mistakes in this operating man- ual, nor in the diagrams and illustrations shown.
- Page 3 Getting in contact with a turning PTO shaft can provoke serious injuries and even death! All rotating parts must be shielded. The driveline must be securely attached to both ends. Guards must turn freely on the driveline. https://www.wiltec.de Item 61982–61985, 64481–64522 Page 3 07 2023-1...
- Page 4 PTO shaft. Clean and grease the tractor PTO and implement Ensure that the driveline is securely attached to the tractor and the implement before operating it. the shaft before installing the driveline. https://www.wiltec.de Item 61982–61985, 64481–64522 Page 4 07 2023-1...
- Page 5 Conformity Identification of the guard and of the maker Guard Label with safety information on the inner Power take-off guards on machine side pipe Power take-off guards on tractor side https://www.wiltec.de Item 61982–61985, 64481–64522 Page 5 07 2023-1...
- Page 6 Fix the guards to the tractor and to the machine using the chains. Never, under any circum- stance, use the shaft without its protective elements and without fixing it with the chains. https://www.wiltec.de Item 61982–61985, 64481–64522 Page 6 07 2023-1...
- Page 7 The minimum overlap length must not fall below the 3-fold diameter of the inner profile pipe. • Shortening of the drive should be avoided. The device is used best with its original length. https://www.wiltec.de Item 61982–61985, 64481–64522 Page 7 07 2023-1...
- Page 8 Use lithium grease of the L EP1 or L EP2 type. Use the hole in the cowling to grease the ring nuts of the guard (Fig. 5, pos. A) and the special greasers to grease the crosses (Fig. 5, pos. https://www.wiltec.de Item 61982–61985, 64481–64522 Page 8 07 2023-1...
- Page 9 Replace damaged or worn components using only original spare parts. Never modify nor tamper with the components of the guard. To replace damaged components, proceed as follows: https://www.wiltec.de Item 61982–61985, 64481–64522 Page 9 07 2023-1...
- Page 10 “click” into the corresponding holes in the cowling. 5. Make sure that the assem- bly is correctly locked in place. Repeat the same opera- tions for the other half of the guard. https://www.wiltec.de Item 61982–61985, 64481–64522 Page 10 07 2023-1...
- Page 11 Unscrew the fixing screws and remove the hood from the joint. Dismantling of homokinetic joint protection – 2 Prise the collar to free it from its housing and slip it off the joint. https://www.wiltec.de Item 61982–61985, 64481–64522 Page 11 07 2023-1...
- Page 12 Press the push button and push the shaft on the power take-off until it clicks into position and locks. Make sure that the coupling devices have clicked perfectly into place before starting up the shaft. https://www.wiltec.de Item 61982–61985, 64481–64522 Page 12 07 2023-1...
- Page 13 Friction disc torque limiter Limits torque to the taring value which is transmitted continuously. Keep in a sheltered place when not in use. Taring may be varied by adjusting the springs. https://www.wiltec.de Item 61982–61985, 64481–64522 Page 13 07 2023-1...
- Page 14 8 working hours and every period of non- use. Important note: Reproduction and any commercial use (of parts) of this operating manual, requires a written permission of WilTec Wildanger Technik GmbH. https://www.wiltec.de Item 61982–61985, 64481–64522 Page 14 07 2023-1...
