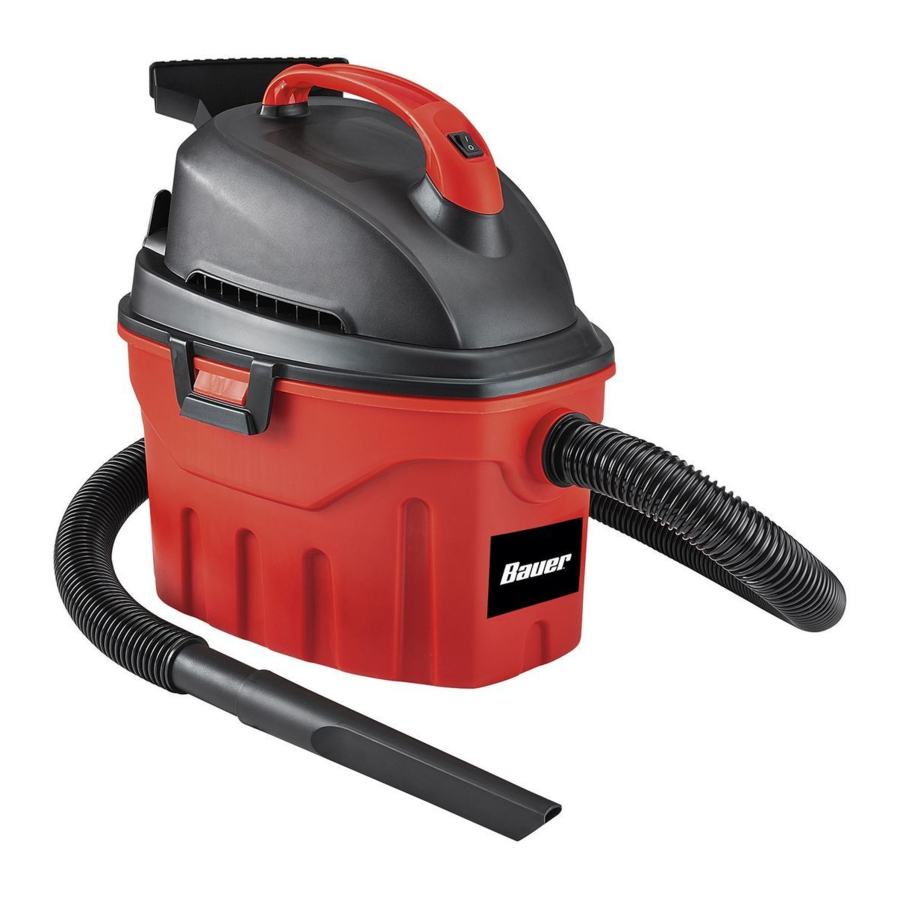

Bauer 1952E-B3, 64753 - 3 Gallon, 3 Peak HP Wet/Dry Vacuum Manual

IMPORTANT SAFETY INSTRUCTIONS

WARNING SYMBOLS AND DEFINITIONS

	This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death.
	Indicates a hazardous situation which, if not avoided, will result in death or serious injury.
	Indicates a hazardous situation which, if not avoided, could result in death or serious injury.
	Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.
	Addresses practices not related to personal injury.

When using an electrical appliance, basic precautions should always be followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE

To reduce the risk of fire, electric shock, or injury:

Do not leave appliance when plugged in. Unplug from outlet when not in use and before servicing.
Do not expose to rain. Store indoors.
Do not allow to be used as a toy. Close attention is necessary when used by or near children.
Use only as described in this manual. Use only manufacturer's recommended attachments.
Do not use with damaged cord or plug. If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to a service center.

Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces.
Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
Do not handle plug or appliance with wet hands.
Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce air flow.
Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
Turn off all controls before unplugging.

Use extra care when cleaning on stairs.
Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.
This appliance is provided with double insulation. Use only identical replacement parts. See instructions for Servicing of Double-Insulated Appliances.
Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
Do not use without dust bag and/or filters in place.
FOR HOUSEHOLD USE ONLY.
Dry your hands and feet before touching plug or switch.
Do not continue to use the vacuum when the tank is full of liquid.
Do not use to pick up water from containers, i.e., sinks, tubs, barrels, etc.

Stay alert, watch what you are doing and use common sense when operating an appliance. Do not use an appliance while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating appliances may result in serious personal injury.
Maintain labels and nameplates on the appliance. These carry important safety information. If unreadable or missing, contact Harbor Freight Tools for a replacement.
People with pacemakers should consult their physician(s) before use. Electromagnetic fields in close proximity to heart pacemaker could cause pacemaker interference or pacemaker failure.
The warnings, precautions, and instructions discussed in this instruction manual cannot cover all possible conditions and situations that may occur. It must be understood by the operator that common sense and caution are factors which cannot be built into this product, but must be supplied by the operator.

Servicing of Double-insulated appliances

A double-insulated appliance is marked with one or more of the following: The words "DOUBLE INSULATION" or "DOUBLE INSULATED" or the double insulation symbol (square within a square):

In a double-insulated appliance, two systems of insulation are provided instead of grounding. No grounding means is provided on a double-insulated appliance, nor should a means for grounding be added to the appliance. Servicing a double-insulated appliance requires extreme care and knowledge of the system, and should be done only by qualified service personnel. Replacement parts for a double-insulated appliance must be identical to the parts they replace.

Polarization instructions

To reduce the risk of electric shock, this appliance has a polarized plug (one blade is wider than the other). This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install the proper outlet. Do not change the plug in any way.

Specifications

Electrical Rating	120 VAC / 60 Hz / 8 A
Tank Capacity	3 Gallons

Setup - Before use

warning Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this manual including all text under subheadings therein before set up or use of this product.

TO PREVENT SERIOUS INJURY FROM ACCIDENTAL OPERATION: Make sure that the power Switch is in the off-position and unplug the tool from its electrical outlet before performing any procedure in this section.

Note: For additional information regarding the parts listed in the following pages, refer to Assembly Diagram near the end of this manual.

Preparation

Remove any stored parts from the Tank before use.

Components and Controls

Operating instructions

warning Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this manual including all text under subheadings therein before set up or use of this product.

Vacuum Operation

TO PREVENT SERIOUS INJURY FROM ACCIDENTAL OPERATION:
Turn the Switch off and unplug the power cord from its electrical outlet before removing the power Head.

Pull out on the tabs on the sides of the Power Head and pull up on it to remove it.
For dry vacuuming: Install Foam Filter completely onto the Filter Cage. Install Cloth Filter over the Foam Filter and secure with the Clamp Ring.

For wet vacuuming: Confirm that the float within the Filter Cage can move freely. Install Foam Filter completely onto the Filter Cage.

Reassemble the Power Head to the Tank, making sure the tabs lock into place.

Note: The Power Head must properly seal onto the Tank and the Tank must be undamaged to allow the vacuum to create suction.

Insert the longer end of the Hose securely into the Vacuum Port.
If desired, slide a Nozzle onto the Hose.

TABLE A: RECOMMENDED MINIMUM WIRE GAUGE FOR EXTENSION CORDS (120VOLT)
NAMEPLATE AMPERES (at full load)	EXTENSION CORD LENGTH
NAMEPLATE AMPERES (at full load)	25'	50'	100'	150'
0 – 6	18	16	16	14
6.1 – 10	18	16	14	12
10.1 – 12	16	16	14	12
12.1 – 16	14	12	Do not use.

USE PROPER EXTENSION CORD.
Make sure your extension cord is in good condition. When using an extension cord, be sure to use one heavy enough to carry the current your product will draw. An undersized cord will cause a drop in line voltage resulting in loss of power and overheating. Table A shows the correct size to use depending on cord length and nameplate ampere rating. If in doubt, use the next heavier gauge. The smaller the gauge number, the heavier the cord.
Make sure that the Switch is in its off position. Plug the Power Cord into the power outlet.
Hold the loose Hose end securely. Turn the switch on to operate the Vacuum.

WHEN WET VACUUMING:

Leave a gap at the tip of the nozzle opening to allow air inflow. Do not immerse the nozzle completely in liquid.

When the Motor sound becomes higher in pitch, the tank is full and the float is closing off the motor intake. IMMEDIATELY:

DRY YOUR HANDS AND FEET
turn the Vacuum off
unplug the Power Cord
empty the Tank.

TO PREVENT SERIOUS INJURY FROM ELECTRIC SHOCK:
Dry your hands and feet before touching plug or switch.
Do not continue to use the vacuum when the tank is full of liquid.

To prevent accidents, DRY YOUR HANDS AND FEET, turn off the appliance and unplug it after use. Empty and clean Tank, dry Tank, clean Filter (see Cleaning Filters), then store the appliance indoors out of children's reach.

Blower Operation

TO PREVENT SERIOUS INJURY FROM ACCIDENTAL OPERATION:
Turn the Switch off and unplug the power cord from its electrical outlet before removing the power Head.

Pull out on the tabs on the sides of the Power Head and pull up on it to remove it.
Clean the Tank out before using the appliance as a Blower.

Any material left in the tank may be blown out, causing injury.
Reassemble the Power Head to the Tank, making sure the tabs lock into place.
Remove the Hose from the Vacuum Port. Locate the Blower Port opening at the rear of the Power Head. Insert longer end of the Hose into the Blower Port.

TABLE B: RECOMMENDED MINIMUM WIRE GAUGE FOR EXTENSION CORDS (120VOLT)
NAMEPLATE AMPERES (at full load)	EXTENSION CORD LENGTH
NAMEPLATE AMPERES (at full load)	25'	50'	100'	150'
0 – 6	18	16	16	14
6.1 – 10	18	16	14	12
10.1 – 12	16	16	14	12
12.1 – 16	14	12	Do not use.

USE PROPER EXTENSION CORD.
Make sure your extension cord is in good condition. When using an extension cord, be sure to use one heavy enough to carry the current your product will draw. An undersized cord will cause a drop in line voltage resulting in loss of power and overheating. Table B shows the correct size to use depending on cord length and nameplate ampere rating. If in doubt, use the next heavier gauge. The smaller the gauge number, the heavier the cord.

Wear ANSI-approved safety goggles before use.
Make sure that the Switch is in its off position. Plug the Power Cord into the power outlet.
Hold the loose Hose end securely. Turn the switch on to operate the Blower.

Do not point Hose toward another person or animal.

To prevent accidents, turn off the appliance and disconnect its power supply after use. Clean, then store the appliance indoors out of children's reach.

User-maintenance and Storage

warning Procedures not specifically explained in this manual must be performed only by a qualified technician.

TO PREVENT SERIOUS INJURY FROM ACCIDENTAL OPERATION:
Make sure that the power Switch is in the off-position and unplug the tool from its electrical outlet before performing any procedure in this section.

TO PREVENT SERIOUS INJURY FROM TOOL FAILURE:
Do not use damaged equipment. if abnormal noise or vibration occurs, have the problem corrected before further use.

Cleaning, Maintenance, and Lubrication

BEFORE EACH USE, inspect the general condition of the tool. Check for:

loose hardware
misalignment or binding of moving parts
air leakage on the Tank or Power Head connection
cracked or broken parts
damaged electrical wiring
any other condition that may affect its safe operation.

AFTER USE, wipe external surfaces of the appliance with clean cloth. Store in an indoor dry area out of reach of children.
All parts are permanently lubricated. Do not use additional lubrication.
If the supply cord of this appliance is damaged, it must be replaced only by a qualified service technician.

Cleaning Filters

To ensure proper operation, clean the filters regularly. Torn filters should be replaced:

CLOTH FILTER:

Gently tap or brush dirt off outdoors.
Wash Cloth Filter using mild soap and water.
Rinse all soap and dust out thoroughly.
Allow the cloth Filter to dry for at least one day before reinstalling.

Installing a wet Filter will increase the risk of electric shock and may damage the vacuum.
Reinstall the Filter. Make sure it covers the Filter Cage completely.

FOAM FILTER:
NOTICE: Do not wring the Foam Filter.
Wringing the Foam Filter will tear its internal structure and ruin it.

Gently wash Foam Filter using mild soap and water.
Rinse all soap and dust out thoroughly.
Allow the Foam Filter to dry for at least one day before reinstalling.

Installing a wet Filter will increase the risk of electric shock and may damage the vacuum.
Reinstall the Filter. Make sure it covers the Filter Cage completely.

Visit our website at: http://www.harborfreight.com
Email our technical support at: productsupport@harborfreight.com

For technical questions, please call 1-888-866-5797.
