User Instructions
CMOD 70 Spreader Frame
The CMOD Spreader Frame is modular in span and every frame consists of 4 Corner Units,
with intermediate Struts that can be bolted into the assembly to achieve different spans.
CMOD 70 has an assembled span ranging from 1m by 1m to 12m by 12m and all spans inbetween.
Assembled
Frame
β
P1
Strut
CMOD 70 Frame Specification
Rated at a maximum of 80 tonnes WLL.
●
●
Please see Table 2 for WLL at specific spans.
'Sling to Vertical' angle, β, 45 degrees or less.
●
●
Corner Units are rated at 20 tonnes each
●
●
(80 tonnes combined capacity).
Bolt tightening torque: 150Nm. Spanner size required: 30mm.
●
●
Recommended additional equipment: Torque Wrench, Podger Spanner and Ring Spanner.
●
●
WARNING!
Personnel using this system should be suitably trained, competent and have a clear
●
●
understanding of Safe Slinging procedures.
The use of Modulift equipment must be in accordance with the procedures laid down in
●
●
'Lifting Operations and Lifting Equipment Regulations 1998' (LOLER).
Never exceed stated WLL
●
●
The top sling length is critical to the safe use of the spreader
●
●
Modulift UK Ltd tel: +44(0)1202 621511 email: sales@modulift.com www.modulift.com

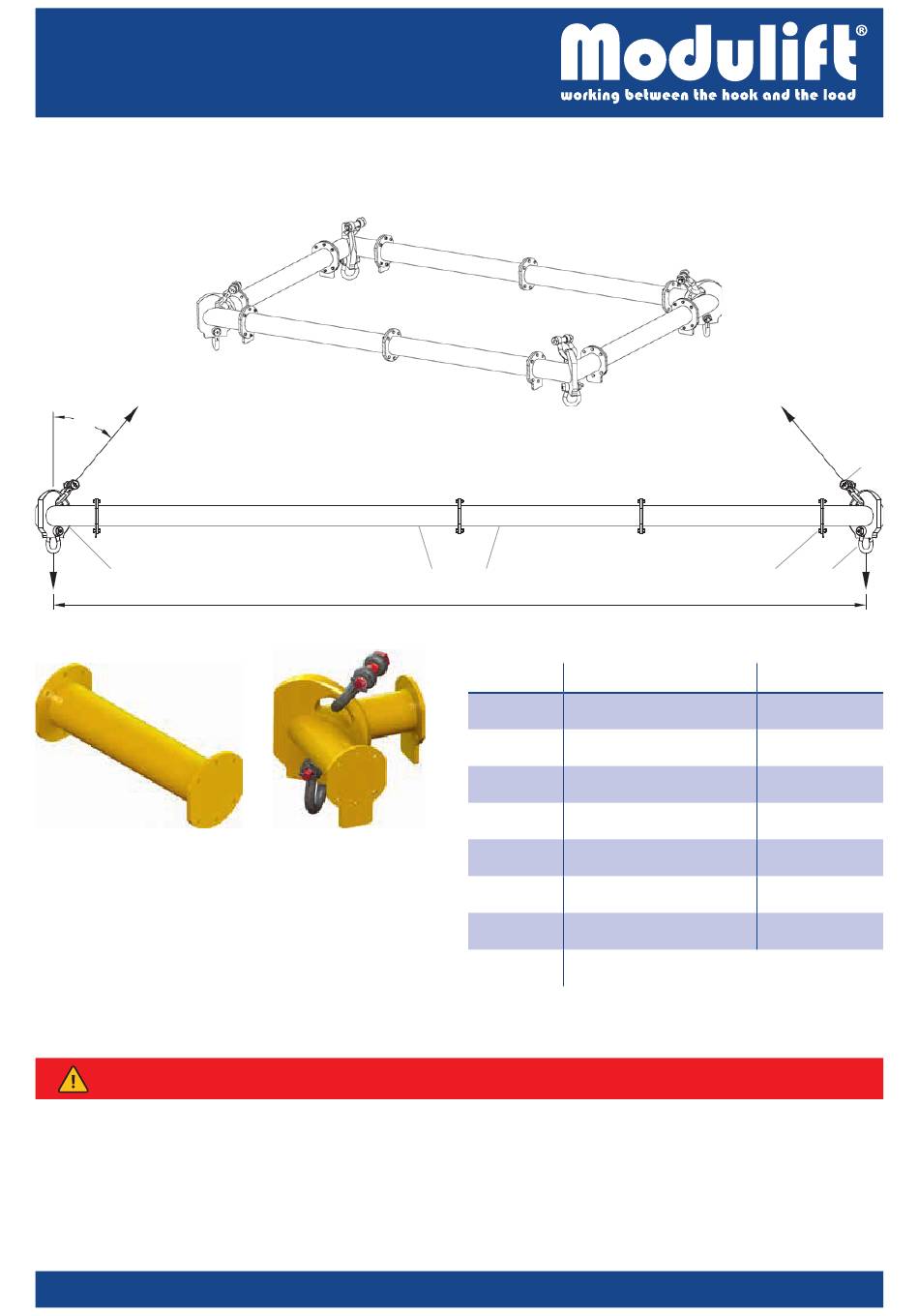

Fig. 1 – Typical CMOD Spreader Frame Assembly
β = Sling to vertical angle (STV)
Span
Corner Unit
– Adhere to WLL in Table 2 for particular sling angle used.
P2–P5
Table 1 – Component List
Part Ref.
Description
P1
Corner Unit
P2
4.0m Strut
P3
2.0m Strut
P4
1.0m Strut
P5
0.5m Strut
P6
42.5t Shackle
P7
35t Shackle
P8
M20 x 65, Grade 8.8, HT Bolts, Nuts & Washers
– Ensure you refer to the correct table.
P8
P7
Weight/item
180kg
(
length 0.5m each)
240kg
136kg
85kg
61kg
29kg
20kg
P6
