Modulift CMOD 110 User Instructions

User Instructions
CMOD 110 Spreader Frame
The CMOD Spreader Frame is modular in span and every frame consists of 4 Corner Units,
with intermediate Struts that can be bolted into the assembly to achieve different spans.
CMOD 110 has an assembled span ranging from 2m by 2m to 16m by 16m and all spans inbetween.
Assembled
Frame
β
P1
Strut
CMOD 110 Frame Specification
Rated at a maximum of 140 tonnes WLL.
● ●
Please see Table 2 for WLL at specific spans.
'Sling to Vertical' angle, β, 45 degrees or less.
● ●
Corner Units are rated at 35 tonnes each
● ●
(140 tonnes combined capacity).
Bolt tightening torque: 150Nm. Spanner size required: 30mm.
● ●
Recommended additional equipment: Torque Wrench, Podger Spanner and Ring Spanner.
● ●
WARNING!
Personnel using this system should be suitably trained, competent and have a clear
● ●
understanding of Safe Slinging procedures.
The use of Modulift equipment must be in accordance with the procedures laid down in
● ●
'Lifting Operations and Lifting Equipment Regulations 1998' (LOLER).
Never exceed stated WLL
● ●
The top sling length is critical to the safe use of the spreader
● ●
Modulift UK Ltd tel: +44(0)1202 621511 email: sales@modulift.com www.modulift.com

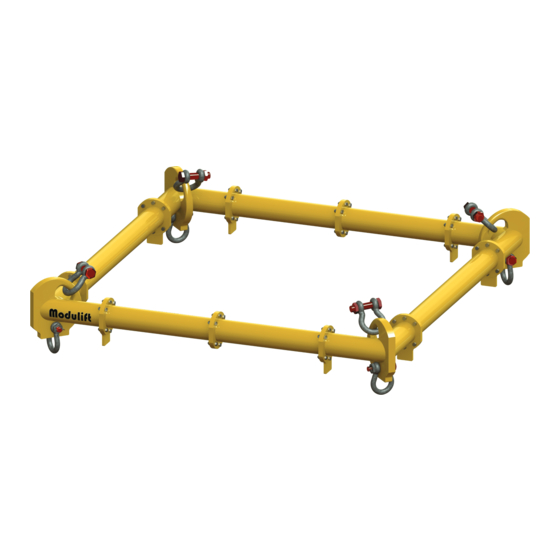

Fig. 1 – Typical CMOD Spreader Frame Assembly
β = Sling to vertical angle (STV)
Span
Corner Unit
– Adhere to WLL in Table 2 for particular sling angle used.
P2–P5
Table 1 – Component List
Part Ref. Description
P1 Corner Unit
P2 4.0m Strut
P3 2.0m Strut
P4 1.0m Strut
P5 0.5m Strut
P6 85t Shackle
P7 55t Shackle
P8
M20 x 65, Grade 8.8, HT Bolts, Nuts & Washers
– Ensure you refer to the correct table.
P8 P7
Weight/item
495kg
(
length 1m each)
367kg
212kg
134kg
96kg
62kg
40kg
P6
