Modulift CMOD 34 User Instructions

User Instructions
CMOD 34 Spreader Frame
The CMOD Spreader Frame is modular in span and every frame consists of 4 Corner Units,
with intermediate Struts that can be bolted into the assembly to achieve different spans.
CMOD 34 has an assembled span ranging from 4ft by 4ft to 26ft by 26ft in 1ft increments.
Assembled
Frame
α
P1
Strut

CMOD 34 Frame Specification

Rated at a maximum of 40 tonnes SWL.
● ●
Please see Table 2 for SWL at specific spans.
'Base to Sling' angle,
● ●
Corner Units are rated at 10 tonnes each
● ●
(40 tonnes combined capacity).
Bolt tightening torque: 110 Pound-Foot. Spanner size required: 30mm.
● ●
Recommended additional equipment: Torque Wrench, Podger Spanner and Ring Spanner.
● ●

WARNING!

Personnel using this system should be suitably trained, competent and have a clear
● ●
understanding of Safe Slinging procedures.
The use of Modulift equipment must be in accordance with the procedures laid down in 'ASME B30.20 - 2013' .
● ●
Never exceed stated SWL
● ●
The top sling length is critical to the safe use of the spreader
● ●
Modulift UK Ltd tel: 011 44 1202 621511 email: sales@modulift.com www.modulift.com

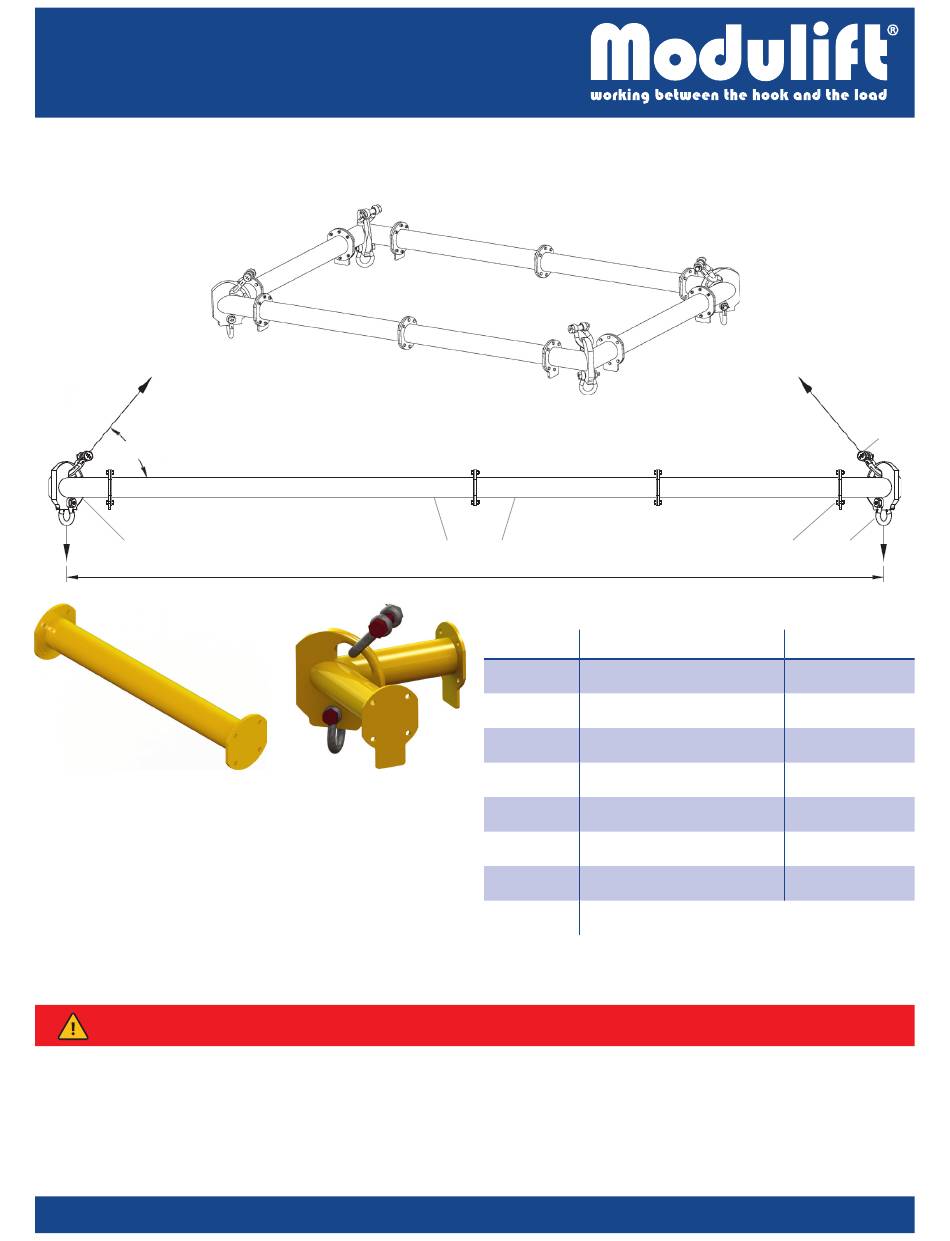

Fig. 1 – Typical CMOD Spreader Frame Assembly
= Base to sling angle (BSA)
α
Span
Corner Unit
, no less than 45 degrees.
α
– Adhere to SWL in Table 2 for particular sling angle used.
P2–P5
Table 1 – Component List
Part Ref. Description
P1 Corner Unit
P2 6ft Strut
P3 4ft Strut
P4 2ft Strut
P5 1ft Strut
P6 25t Shackle
P7 17t Shackle
P8
M20 x 50, Grade 8.8, HT Bolts, Nuts & Washers
– Ensure you refer to the correct table.
P8 P7
Weight/item
150 lbs
(length 2ft each)
103 lbs
71 lbs
48 lbs
34 lbs
31 lbs
18 lbs
P6
