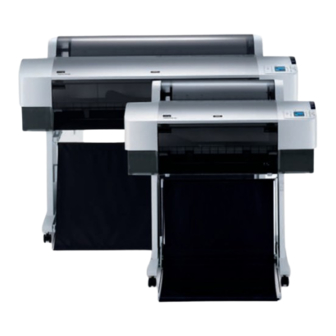

- Page 1 Epson Stylus Pro 7800/9800 ® QUICK REFERENCE GUIDE...
-
Page 2: Loading Roll Paper
Loading Roll Paper Loading Roll Paper Slide the black paper stop off the end of Release the paper lever. the spindle. Note: To use paper with a 3-inch core, attach the gray adapters to the paper stops at each end. See your Printer Guide for details. -
Page 3: Printing On Posterboard
Loading and Using Cut Sheet Paper Loading and Using Cut Sheet Paper Remove any roll paper from the paper path. Make Press the Pause button. The sheet feeds into the printing position automatically and READY sure the printer is on and the roll paper cover is closed. - Page 4 Note: If you’re using stock more than 39 inches long (Epson Stylus Pro 9800 only), load it long edge Run your print job. After it is finished, the first (in landscape orientation). posterboard stays in the printer.
-
Page 5: Aligning The Print Head
Note: You can also run nozzle checks and head cleaning cycles from your computer using the Epson Printer Utility (Macintosh) or the Utility tab in your printer driver (Windows). See your Printer Guide for more information. -
Page 6: Replacing Ink Cartridges
Check the LCD to see which cartridge is low, and make sure you have the correct replacement cartridge. You can install any combination of 110 ml and 220 ml cartridges. Epson UltraChrome K3 ink cartridges Slot no. Ink color 110 ml... - Page 7 E*****F indicates a new cutter. If no stars are displayed, the cutter may need to be replaced. Caution: Cutting the following media may shorten the cutter’s life and is not recommended: • Fine art paper (such as Epson UltraSmooth™ , Textured, or Velvet) • Canvas • Backlight film •...
-
Page 8: Replacing The Maintenance Tank
Hold down the side pin, as shown, then turn the latch to the right. The Epson Stylus Pro 7800 has one maintenance tank (on the right side) and the 9800 has two (one on either side). You need to replace the maintenance tank (part # C12C890191) when you see MAINTENANCE TANK FULL on the LCD. -
Page 9: Control Panel Menus
Control Panel Menus Control Panel Menus Menu button to access the menus. Boldface type indicates the default setting. Press the Menu Item Settings / Explanation PRINTER SETUP ROLL PAPER COUNTER Available only if REMAINING PPR SETUP ROLL PAPER LENGTH is enabled in Maintenance Mode ROLL LENGTH ALERT STANDARD, NARROW, WIDE, WIDER, WIDEST PLATEN GAP... -
Page 10: Where To Get Help
Contact the RIP manufacturer. Epson and Epson Stylus are registered trademarks and Exceed Your Vision is a trademark of Seiko Epson Corporation. Epson UltraChrome K3 and UltraSmooth are trademarks and Epson Preferred is a service mark of Epson America, Inc. - Page 11 Control Panel Lights and Buttons Paper light Ink light Paper Feed up button Power light and button Menu button Hold for 3 seconds to clean the print head. Enter button Hold for 3 seconds Ink cartridge Pause light to cut roll paper after gauges and button printing.
