Summary of Contents for Renishaw TP200

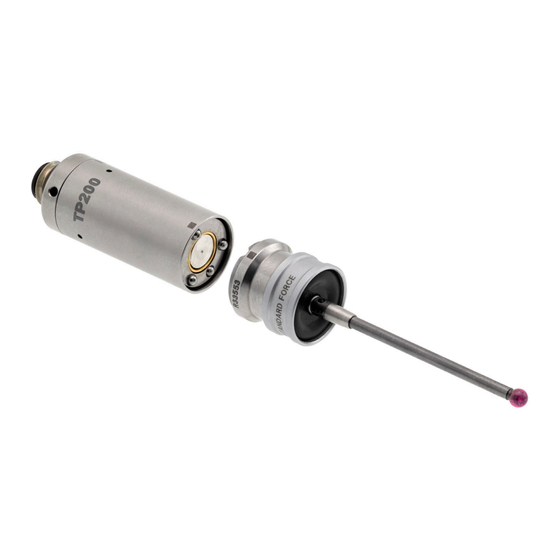

- Page 1 TP200 product care guide www.renishaw.com/TP200 #renishaw...
- Page 2 RENISHAW®, the probe symbol and REVO® and AGILITY® are registered trade marks of Renishaw plc. Renishaw product names, designations and the mark ‘apply innovation’ are trade marks of Renishaw plc or its subsidiaries. Other brand, product or company names are trade marks of their respective owners.
-
Page 3: Table Of Contents
Mounting the probe body on the probe head with M8 connection ..... . 5 Mounting the probe body on the probe head with Renishaw autojoint ....6 Assembling a stylus on a stylus module . -
Page 4: General Information
Renishaw office. Renishaw warrants its equipment and software for a limited period (as set out in the Standard Terms and Conditions), provided that they are installed and used exactly as defined in associated Renishaw documentation. You should consult these Standard Terms and Conditions to find out the full details of your warranty. -
Page 5: Tp200 Installation Procedure
TP200 installation procedure Mounting the probe body on the probe head with M8 connection CAUTION: Take great care not to drop the probe when installing. 1. Mount the probe body on the probe head before fitting the stylus module. 2. Screw the threaded end of the probe body into the M8 connector, on the probe head, until it is finger tight. Do not over tighten with your fingers. -
Page 6: Mounting The Probe Body On The Probe Head With Renishaw Autojoint
Mounting the probe body on the probe head with Renishaw autojoint 1. Before fitting to the probe head, screw the probe body to a PAA series adaptor, as instructed for M8 heads. 2. Locate the adaptor on the probe head and lock autojoint using S10 key. -
Page 7: Mounting The Stylus Module On The Probe Body
(armed) state. Alignment marks Alignment symbols Autojoint mount M2 stylus S7 pin spanner NOTE: An automatic change rack (SCR200) is available which will reduce the risk of damage of the TP200 probe sensor when changing the modules. www.renishaw.com... -
Page 8: Stylus Module Selection
SF / LF modules. It is also suggested that this module should be used when the majority of measurements are in the Z axis of the probe. The extra over travel protection of the EO module may prevent damage to the probe if a crash occurs in the Z axis of the probe. TP200 product care guide... -
Page 9: Dimensions
M2 × 0.4 thread SF / LF 4.5 mm (0.18 in) 14° 14° 12.5 mm (0.49 in) +Z overtravel -Z overtravel by separation of the Maximum module sensor from the probe body XY overtravel All modules = 4 mm (0.16 in) www.renishaw.com... -
Page 10: Maintenance
+44 (0) 1453 524524 uk@renishaw.com © 2008–2023 Renishaw plc. All rights reserved. This document may not be copied or reproduced in whole or in part, or transferred to any other media or language by any means, without the prior written permission of Renishaw.
