QG-PM 51 S B&S; EX; UK

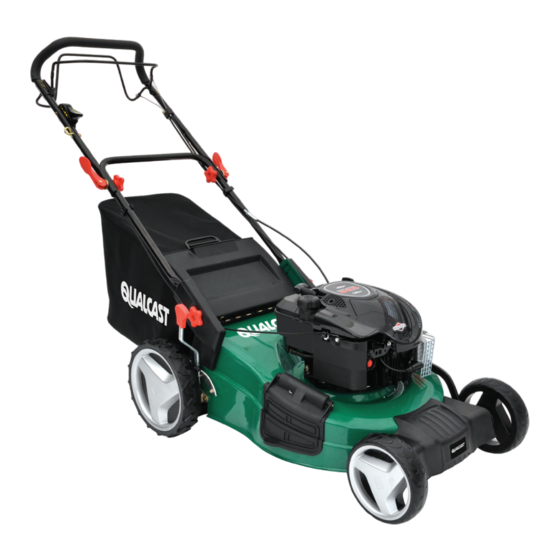

Petrol Lawn Mower

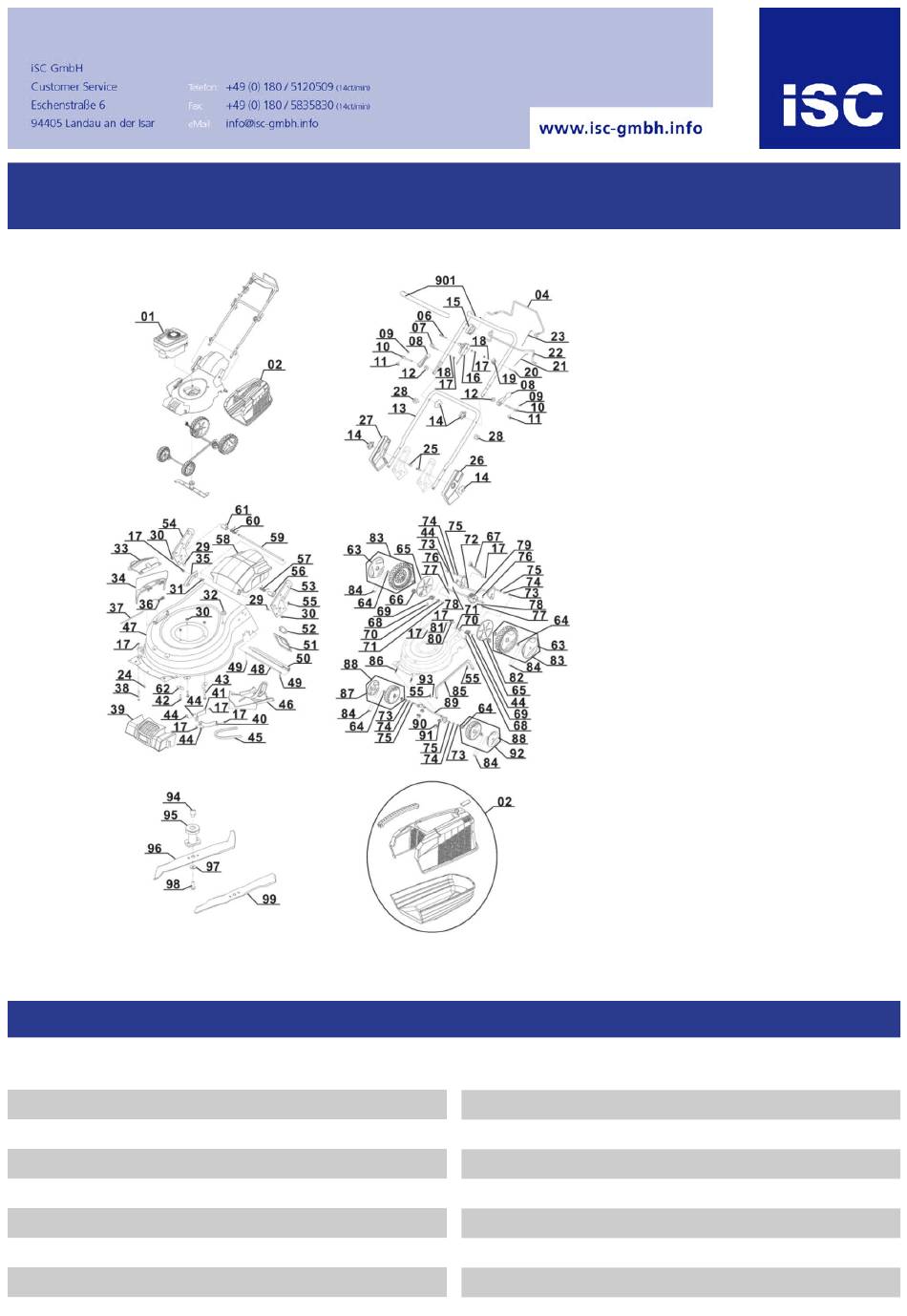

Komponenten / Ersatzteile
Position
Artikel-Nr.
1
340074402001
2
340074401002
4
340074001004
6
340074001006
7
340074001007
8
340074001008
9
340074001009
10
340074001010
Beschreibung
engine B/S 625 ECO 4-Takt; 190 ccm
Grasfangsack
drive clutch lever (Kupplungshebel)
bolt M6x60
hook
quick fix handle
circlip 5
bolt M8
Artikel-Nr.: 3400744
Ident-Nr.:
11021
Position
Artikel-Nr.
11
340074001011
12
340074001012
13
340074001013
14
340074001014
15
340074001015
17
340074001017
18
340074001018
19
340074001019
Beschreibung
roll pin
washer
lower handle
knob nut M8
bracket for handle
lock nut M6
flat washer 6
fix seat für Seilzug
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Qualcast QG-PM 51S B&S
Summary of Contents for Qualcast QG-PM 51S B&S
- Page 1 QG-PM 51 S B&S; EX; UK Artikel-Nr.: 3400744 Petrol Lawn Mower Ident-Nr.: 11021 Komponenten / Ersatzteile Position Artikel-Nr. Beschreibung Position Artikel-Nr. Beschreibung 340074402001 engine B/S 625 ECO 4-Takt; 190 ccm 340074001011 roll pin 340074401002 Grasfangsack 340074001012 washer 340074001004 drive clutch lever (Kupplungshebel) 340074001013 lower handle 340074001006...
- Page 2 Komponenten / Ersatzteile Position Artikel-Nr. Beschreibung Position Artikel-Nr. Beschreibung 340074001020 square neck bolt M6x40 340074001072 rear axle 340074001021 flywheel cable (Motorbremse) 340074001073 washer 12 340074001023 drive clutch cable 340074001074 washer 12 340074001025 square neck bolt M8x30 340074001075 bush 340074001026 left bracket cover für unteren Schubbügel 340074001076 circlip 9 340074001027...
- Page 3 51cm Self Propelled Lawnmower Original Operating Instructions POWERFUL 190CC BRIGGS & STRATTON 625 SERIES PETROL ENGINE Ideal for medium to large gardens ADJUSTABLE AND FOLDING HANDLE Allows for handle to be adjusted for comfort and easy storage 51CM METAL DECK For improved durability and long life 5 CENTRALLY ADJUSTED CUTTING HEIGHTS...
- Page 4 Contents Safety Guide Product Diagrams 1 0. Technical Data Assembly Declaration of Conformity Product Guarantee Packaging The unit is supplied in packaging to prevent its being damaged in transit. This packaging is raw material and can therefore be reused or can be returned to the raw material system. Helpline No.
- Page 5 Preliminary measures Important! When using the equipment, safety precautions must be observed to avoid injuries and damage. 1. Always wear sturdy, non-slip footwear and long Please read the complete operating instructions trousers when mowing. Never mow barefoot or and safety regulations with due care. Keep this in sandals.
- Page 6 Helpline No. UK 0151 649 1500 / IRE 189 094 6244...
- Page 7 Helpline No. UK 0151 649 1500 / IRE 189 094 6244...
- Page 8 Helpline No. UK 0151 649 1500 / IRE 189 094 6244...
- Page 9 Helpline No. UK 0151 649 1500 / IRE 189 094 6244...
- Page 10 Handling 16. Never put your hands or feet near or under any rotating parts. Keep clear of the chute opening at all times. 1. Do not let the combustion engine run in enclosed areas, as dangerous carbon 17. Never lift or carry a lawn mower with the monoxide gas can build up.
- Page 11 Maintenance and storage 2. Layout (Fig. 1+2) 1. Make sure that all nuts, bolts and screws are 1. Engine start/stop lever – engine brake tightened securely and that the machine is in 2. Top push bar safe working condition. 3. Throttle lever 2.
- Page 12 3. Proper operation 4. Technical data The petrol lawn mower is intended for private use Note: The enclosed manual from Briggs & i.e. for use in home and gardening environments. Stratton provides detailed technical data on the engine! Private use of the lawn mower refers an annual operating time generally not exceeding that of Engine type: 50 hours, during which time the machine is...
- Page 13 Assembly - Pull the adjustor lever out and select the desired cutting height. The lever snaps into the desired position. 1. Take the mower and attachment parts out of the packaging and check that all parts are present (Fig. 2). 6.
- Page 14 2. Speed lever (Fig. 6): Move this lever in order to Note: In cold weather, it may be necessary to increase or decrease the engine speed. repeat the starting process several times. (Tortoise = Slow / Hare = = Fast). 12.
- Page 15 the open. Use a filling funnel and a measuring This will prevent the grass blades from fraying and jug. Wipe off any spilled petrol. the lawn from turning yellow. 4. Read and follow the instructions in the Try to mow in straight lines for a nice, clean look in operating manual as well as the information in so doing, the mowing swaths should always regarding the engine and accessory equipment.
- Page 16 they have struck a foreign object or if the cleaned after each use. machine vibrates more than usual. Re-attach the catch bag only when the engine is 6. Do not make any adjustments or repairs until switched off and the blade is stopped. the engine has been switched off.
- Page 17 ignition unit with the engine running. Always pull the blade for damage. Damaged or bent the spark plug boot from the spark plug before blades must be replaced. Never attempt to starting any cleaning or maintenance. Never bend a bent blade back to straight again. Never perform any work on the machine while it is mow the lawn with a bent or heavily worn blade running.
- Page 18 8. Disposal and recycling 4. Be sure to clean the entire machine to protect the paint. The unit is supplied in packaging to prevent its 5. Store the machine in a well-ventilated place. being damaged in transit. This packaging is raw material and can therefore be reused or can IMPORTANT! be returned to the raw material system.
- Page 19 Notes Helpline No. UK 0151 649 1500 / IRE 189 094 6244...
- Page 20 EÚ a noriem pre výrobok og standarder for artikkel A a cikkekhez az EU-irányvonal és Normák szerint a E Lýsir uppfyllingu EU-reglna og annarra staðla vöru következő konformitást jelenti ki Petrol Lawn Mower QG-PM 51 S B&S (Qualcast) 87/404/EC_2009/105/EC 2006/42/EC Annex IV 2005/32/EC_2009/125/EC...
- Page 21 GUARANTEE CERTIFICATE Dear Customer, In the unlikely event that your device develops a fault, please contact our Customer service department on the telephone number shown below. 1. These guarantee terms cover additional guarantee rights and do not affect your statutory warranty rights. Claims must be accompanied by Proof of Purchase.
- Page 22 AFTER SALES SUPPORT UK / IRELAND HELPLINE NO 0151 6491500 REP . IRELAND HELPLINE NO 1890 946244 WEB SUPPORT www.einhell-uk.co.uk MODEL NUMBER: QG-PM 51S B&S MANUFACTURERS ARTICLE NO: 34.007.44...
