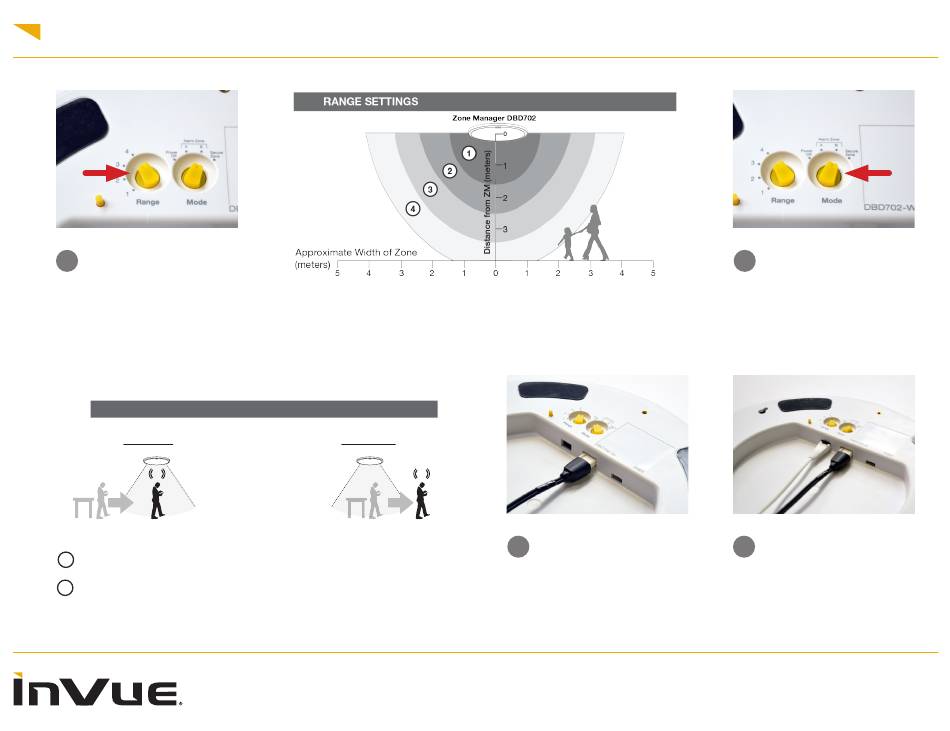

Wireless Zone Manager DBD702 & Optional LED Emitter DBD703
1
Determine your range
settings by consulting the
illustration to the right for
guidance. Turn the knob to
the desired setting by hand
or using the key fob tool
included with a OneKEY.
MODE SETTINGS
Alarm Zone
X
Alarm starts when sensor enters Alarm Zone.
Alarm stops according to chosen mode:
A
Warning Mode
Alarm stops when it leaves Alarm Zone.
B
Continuous Mode
Alarm continues until it times out.
Note: All distances are approximate. The shape and distance of the field can be
altered by ferrous objects near the Zone Manager (such as structural steel pillars).
The field also extends upwards. Keep these factors in mind when installing and
setting the range of the field.
Secure Zone
X
Alarm starts when sensor leaves Secure Zone.
Alarm stops when it re-enters Secure Zone
or when it times out.
3
Plug the power supply into
the 2-pin port in the Zone
Manager.
1
2
Consult the following graphics
to determine your Mode
settings. Turn the knob to
the desired setting by hand
or using the key fob tool
included with a OneKEY.
4
If installing the optional LED
Emitter (DBD703), plug that
into the 3-pin port in the
Zone Manager
For technical assistance call
NA / LATAM // 704.752.6513 • 888.55.INVUE
EMEA // +31.23.8900150
APAC // +852.3127.6811
