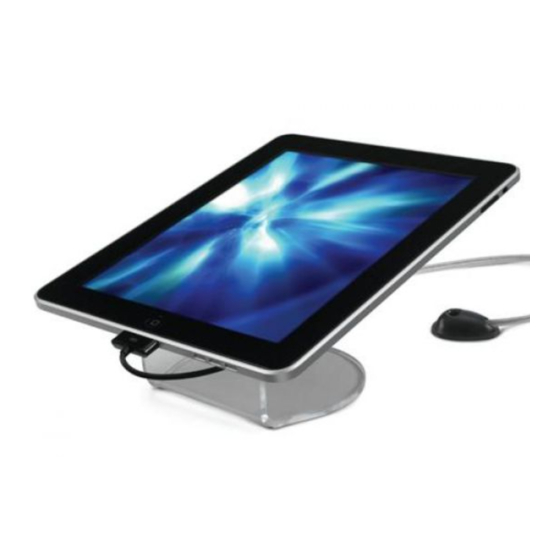

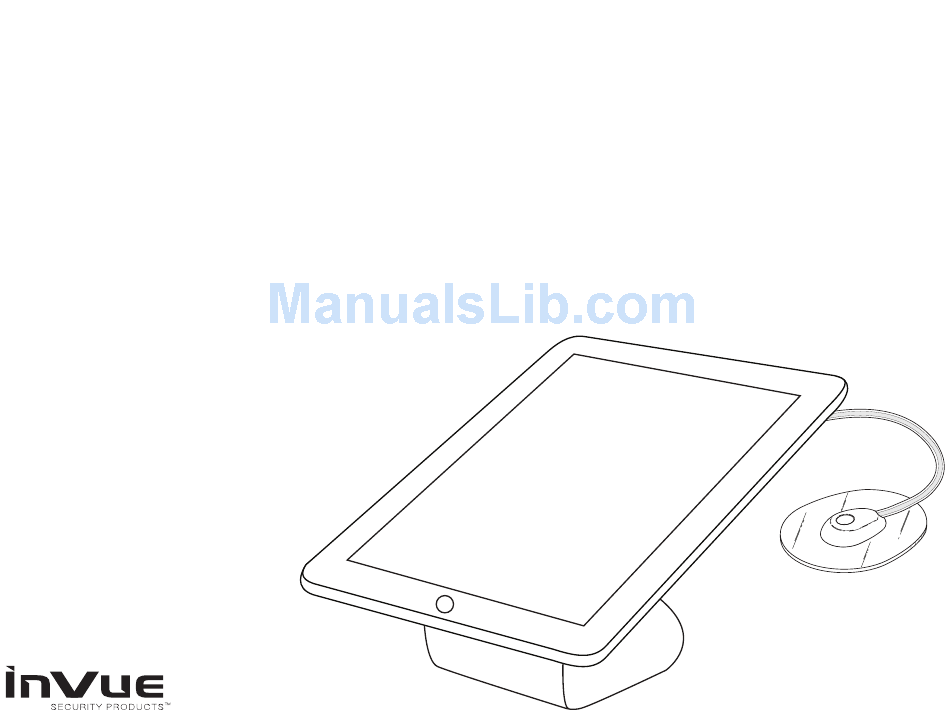

- Page 1 Instruction Manual LTO4905 › LTO with Power Pass...
-
Page 2: Getting Started
3 Power Connector Power-up Options: a. USB charging compliant b. other tablets 1 LTO4905 LTO Module Arm LTO4905 with programmed IR key. LTO Anchor Tools Needed (Screw Mounting Option Only) 4 IR Key 2a Power Supply AF4400... -
Page 3: Mounting Options
a Mounting Options Adhesive Mounting Let alcohol dry completely. Remove adhesive film. Press firmly for 10 seconds. Let alcohol dry completely. Remove adhesive film. Press firmly for 10 seconds. -
Page 4: Screw Mounting
b Mounting Options Screw Mounting Let alcohol dry completely. Remove adhesive film. Press firmly for 10 seconds. -
Page 5: Attaching Power Supply
Attaching Power Supply AF4413 (US) Use OEM power supply AF4415 (EUR) AF4416 (UK & AUS) a. USB charging compliant b. Other tablets (OEM power supply + power connector) OEM power supply... -
Page 6: Key Functions
Key Functions Arming the LTO4905 Activate programming station. Refresh IR Key. Arm LTO4905. AF4402 (US) AF4403 (UK) AF4400 AF4404 (AU) AF4400 AF4405 (EU) AF4401 Green light flashes when unit is ON. Blue light flashes if programming is successful. Disarming the LTO4905... -
Page 7: Battery Replacement
Battery Replacement CAUTION: For safety purposes, make sure to replace with the correct battery. Remove LTO module from merchandise using AF6314. Remove adhesive. AF4400 Remove battery and wait 3 Replace with CR2 battery minutes. ONLY. – 3 minutes –... - Page 8 CUSTOMER SERVICE North America 888.55.INVUE // Europe +31.23.8900150 // Asia +65.6766.4844 SD0061 Rev 03/22/2011...
