inVue ZA3600 Manual

Download this manual

ZA3600 Installation

Orient the bar included with

the ZA3600 sensor so that the

countersinks will face down.

Note: A black bar is shown for

instructional purposes only. The

bar included with the kit will be

white

Insert the screw into the inner

hole on the bar. Use the provided

screwdriver to tighten the screw.

Slide the bar from the left side

over the keyboard attachment.

Insert the bar into the square

opening in the sensor. Ensure that

the screw holes on the bar and

sensor are aligned.

Slide the bar fully onto the

keyboard.

Insert the longer screw into the

hole.

Select the smaller of the provided

screws.

Use the provided screwdriver to

tighten the screw, securing the

sensor to the bar.

For technical assistance call

NA / LATAM // 704.752.6513 • 888.55.INVUE

EMEA // +31.23.8900150

APAC // +852.3127.6811

Need help?

Do you have a question about the ZA3600 and is the answer not in the manual?

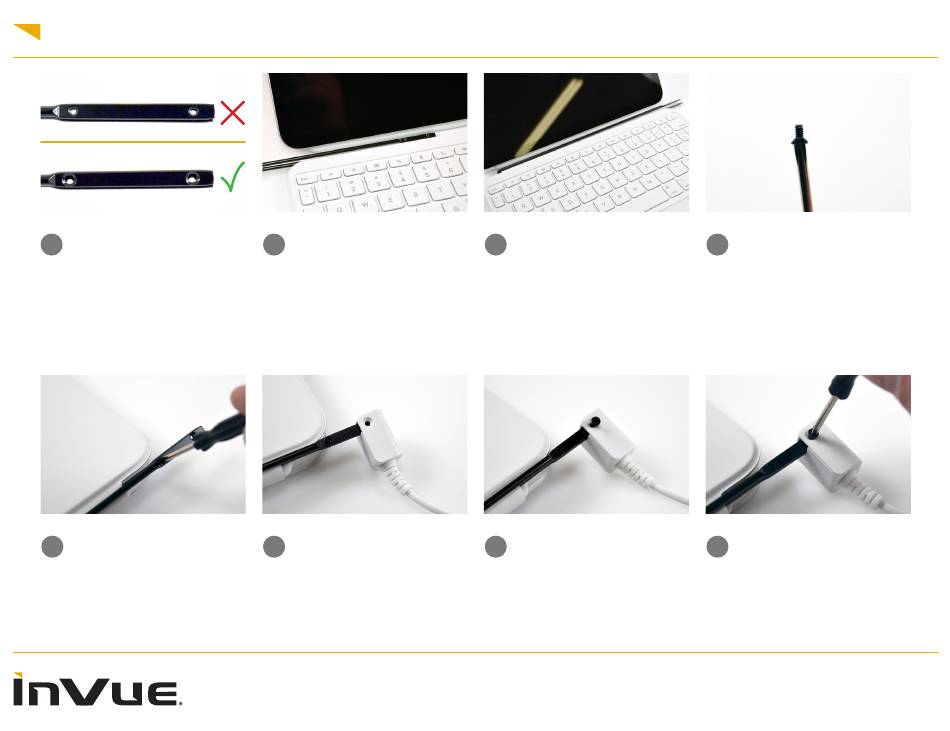

Page 1 Orient the bar included with Slide the bar from the left side Slide the bar fully onto the Select the smaller of the provided the ZA3600 sensor so that the over the keyboard attachment. keyboard. screws. countersinks will face down.
Page 2 Ensure that the cover snaps fully Remove the back cover/kickstand for your installation into the flex the flex sensor. into place. from the tablet. sensor connector cable. For technical assistance call NA / LATAM // 704.752.6513 • 888.55.INVUE EMEA // +31.23.8900150 APAC // +852.3127.6811...
Page 3 The back of the tablet back cover/kickstand as shown. should approximately resemble the above image. For technical assistance call NA / LATAM // 704.752.6513 • 888.55.INVUE EMEA // +31.23.8900150 APAC // +852.3127.6811...
Page 4 S2865 Power/ OEM charger. Plug the charger Alarm box or Zips Alarm Unit. into an outlet. SD0907 Rev0 02/28/23 For technical assistance call NA / LATAM // 704.752.6513 • 888.55.INVUE EMEA // +31.23.8900150 APAC // +852.3127.6811...
