SPECIFICATIONS
Power: 12VDC, 50 mA
Temperature Rating: -40° to +185° F
Model CPWR3 RF Frequency: 315 MHZ
Accessory Transmitters
Visors:
CPT13, CPT23, CPT33, CPT43
Key chains:
CPTK13, CPTK33, CPT13PH, CPT33PH
OVERVIEW

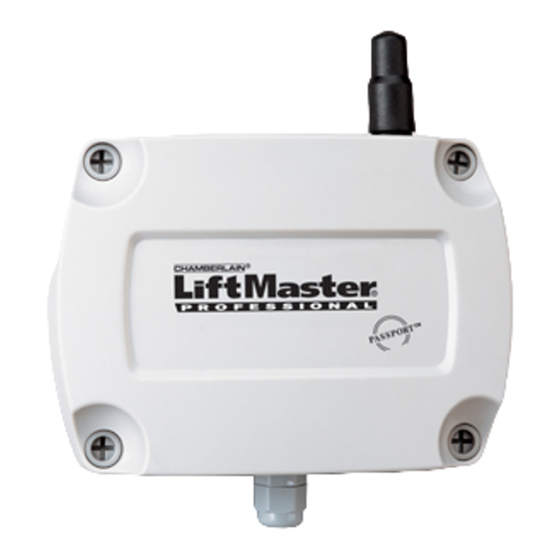

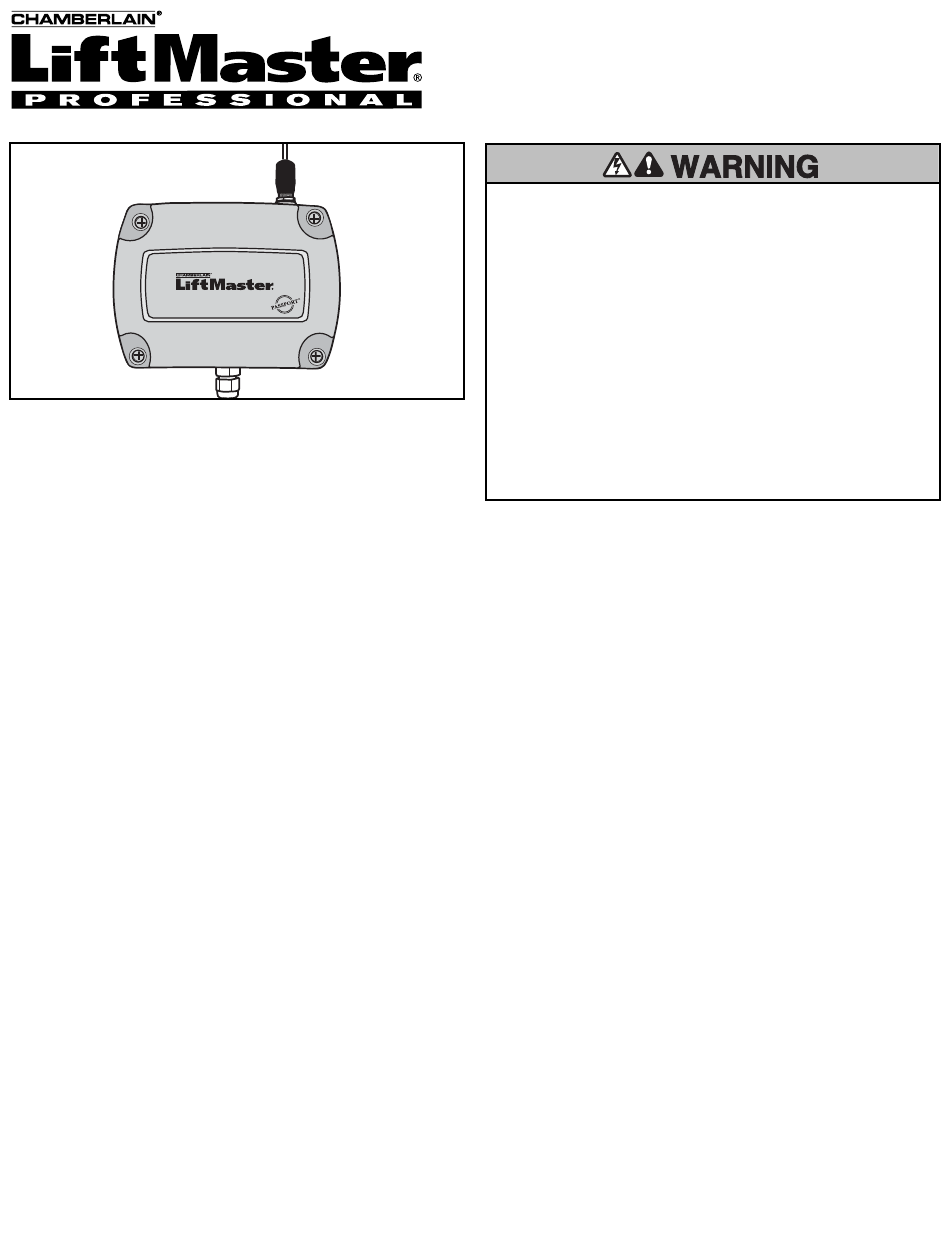

The Wiegand Receiver (CPWR3) is a communication device that
transmits an information packet to an access control unit such as
a Sentex Telephone Entry System. All receiver units utilize the
latest in Chamberlain
®
rolling code technology.
ACCESS CONTROL COMPATIBILITY
The CPWR3 outputs a 26-bit or 30-bit Wiegand format
compatible with Sentex access control systems.
CARTON INVENTORY
Wiegand Receiver
Antenna
Installation and Operation Instructions
PARTS NOT PROVIDED
# 6 Mounting Hardware
5-conductor shielded cable; 22 AWG wire
Extension Kit (Optional)
315 MHz Wiegand Receiver with
To prevent possible SERIOUS INJURY or DEATH from
electrocution:
• Be sure power is not connected BEFORE installing the
receiver.
To prevent possible SERIOUS INJURY or DEATH from a moving
gate or garage door:
• ALWAYS keep remote controls out of reach of children.
NEVER permit children to operate, or play with remote
control transmitters.
• Activate gate or door ONLY when it can be seen clearly,
is properly adjusted, and there are no obstructions to
door travel.
• ALWAYS keep gate or garage door in sight until completely
closed. NEVER permit anyone to cross path of moving gate
or door.
1
MODEL CPWR3
Passport Technology
