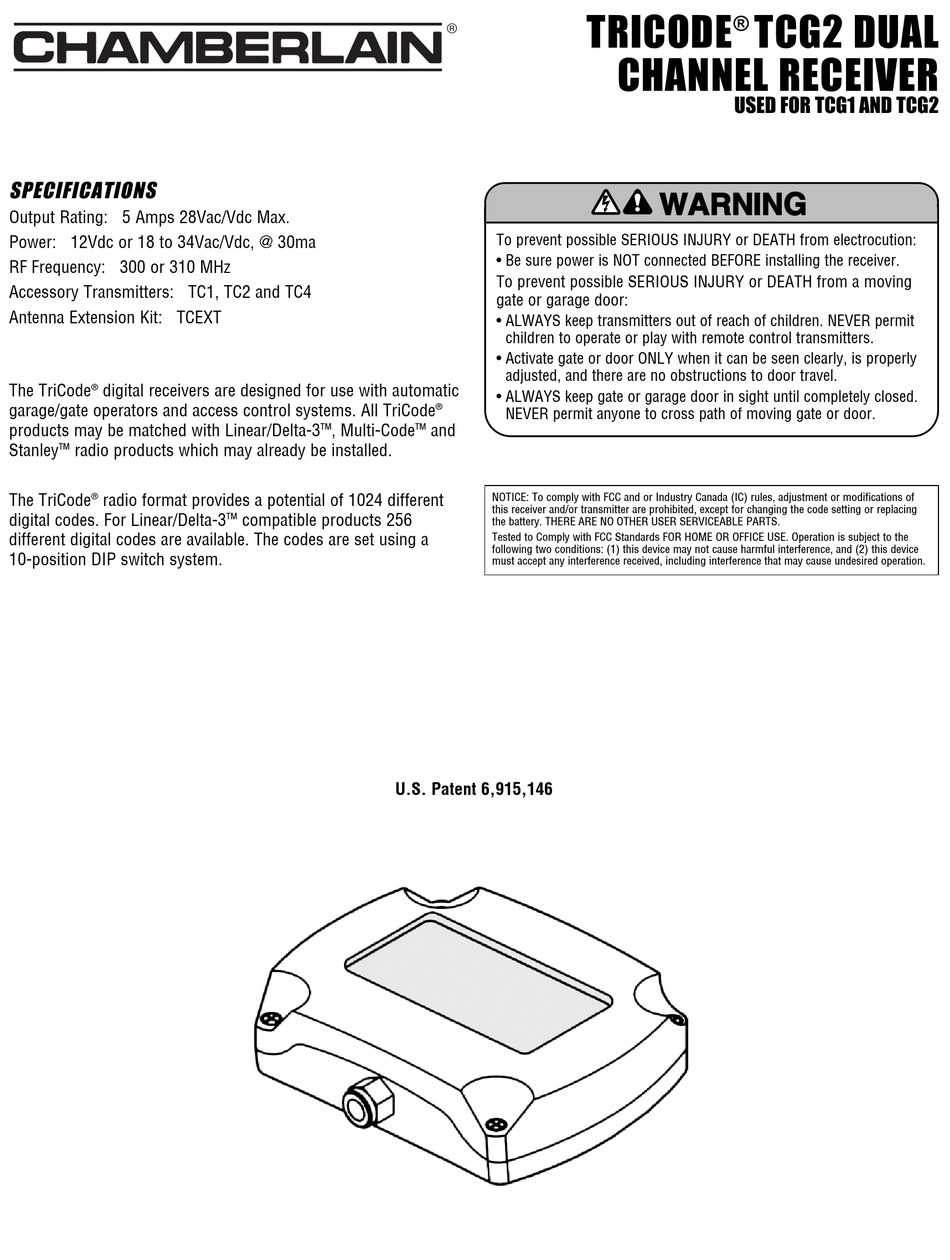

Chamberlain TRICODE TCG2 Manual

WARNING

SPECIFICATIONS

CAUTION
Output Rating: 5 Amps 28Vac/Vdc Max.
Power: 12Vdc or 18 to 34Vac/Vdc, @ 30ma
RF Frequency: 300 or 310 MHz
Accessory Transmitters: TC1, TC2 and TC4
Antenna Extension Kit: TCEXT

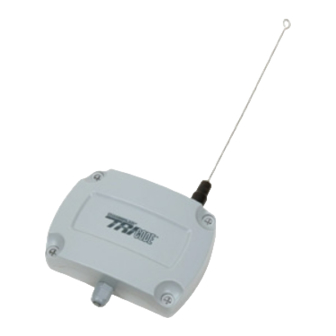

The TriCode ® digital receivers are designed for use with automatic
garage/gate operators and access control systems. All TriCode
products may be matched with Linear/Delta-3
Stanley TM radio products which may already be installed.
The TriCode ® radio format provides a potential of 1024 different
digital codes. For Linear/Delta-3
different digital codes are available. The codes are set using a
10-position DIP switch system.
TM , Multi-Code
TM compatible products 256
U.S. Patent 6,915,146
TRICODE
®
To prevent possible SERIOUS INJURY or DEATH from electrocution:
• Be sure power is NOT connected BEFORE installing the receiver.
To prevent possible SERIOUS INJURY or DEATH from a moving
gate or garage door:
• ALWAYS keep transmitters out of reach of children. NEVER permit
children to operate or play with remote control transmitters.
• Activate gate or door ONLY when it can be seen clearly, is properly
adjusted, and there are no obstructions to door travel.
• ALWAYS keep gate or garage door in sight until completely closed.
®
NEVER permit anyone to cross path of moving gate or door.
TM and
NOTICE: To comply with FCC and or Industry Canada (IC) rules, adjustment or modifications of
this receiver and/or transmitter are prohibited, except for changing the code setting or replacing
the battery. THERE ARE NO OTHER USER SERVICEABLE PARTS.
Tested to Comply with FCC Standards FOR HOME OR OFFICE USE. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired operation.
®
TCG2 DUAL
CHANNEL RECEIVER
USED FOR TCG1 AND TCG2
WARNING
WARNING
