IMPORTANT PRODUCT INFORMATION
GFK-3003AA
May 2023

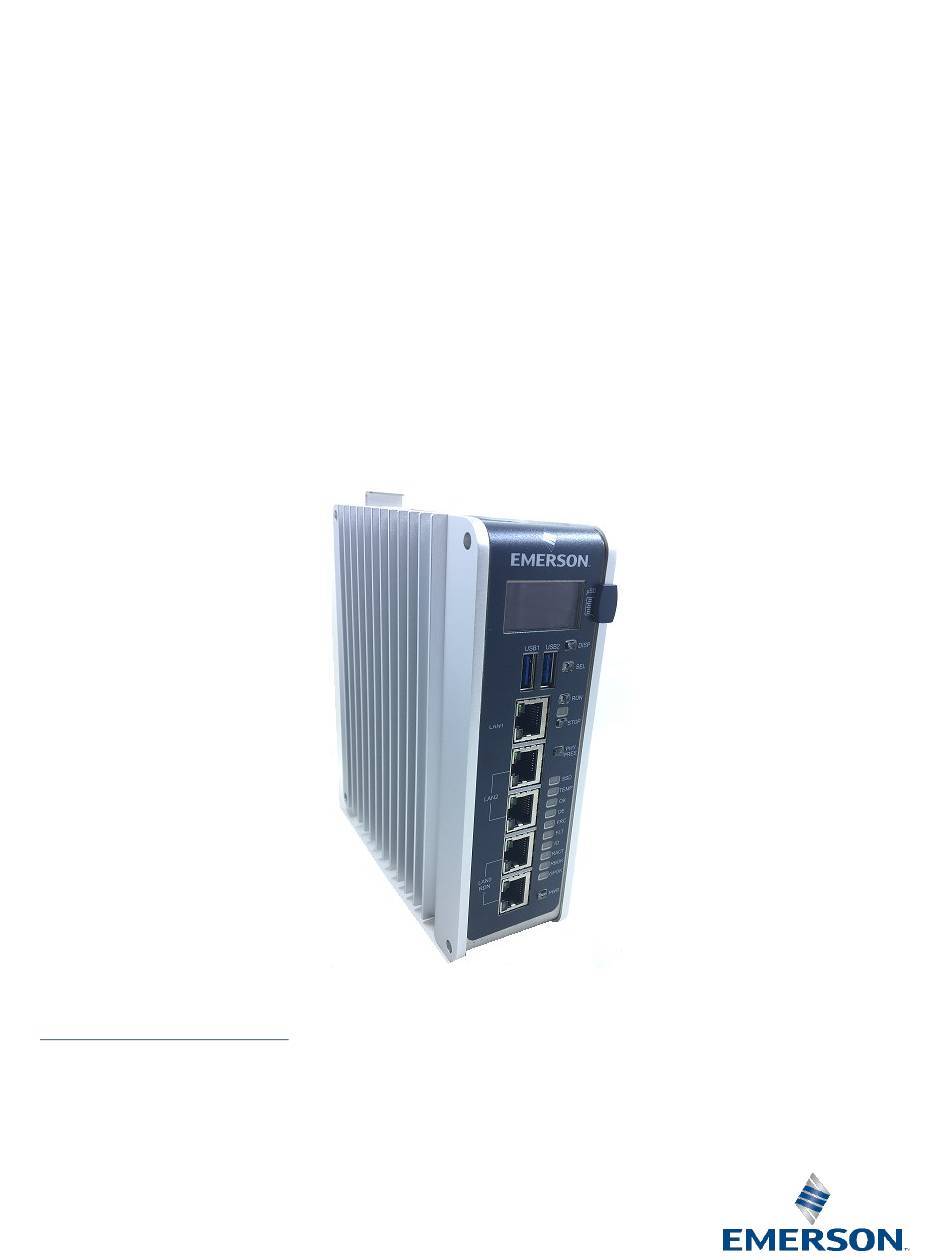

PACSystems™ RX3i IC695CPE400 and
IC695CPL410 IPI
IC695CPE400-ADBA
12
IC695CPL410-ACAN
12
Firmware Version 10.85
1
Includes conformal coat and low temperature module variants, if available.
2
The last two characters of the catalog number suffix may not increment with every
firmware release beginning with IC695CPE400-ACBA and IC695CPL410-ABAN 10.30.

Advertisement

loading

Related Manuals for Emerson PACSystems RX3i IC695CPE400

Summary of Contents for Emerson PACSystems RX3i IC695CPE400

  • Page 1 IMPORTANT PRODUCT INFORMATION GFK-3003AA May 2023 PACSystems™ RX3i IC695CPE400 and IC695CPL410 IPI IC695CPE400-ADBA IC695CPL410-ACAN Firmware Version 10.85 Includes conformal coat and low temperature module variants, if available. The last two characters of the catalog number suffix may not increment with every firmware release beginning with IC695CPE400-ACBA and IC695CPL410-ABAN 10.30.
  • Page 2 These instructions do not purport to cover all details or variations in equipment, nor to provide for every possible contingency to be met during installation, operation, and maintenance. The information is supplied for informational purposes only, and Emerson makes no warranty as to the accuracy of the information included herein. Changes, modifications, and/or improvements to equipment and specifications are made periodically and these changes may or may not be reflected herein.
  • Page 3 GFK-3003AA May 2023 Current Release Information IC695CPE400 64MB Rackless CPU w/PACEdge + Connext and IC695CPL410 64MB Rackless CPU w/PACEdge + WebHMI PACSystems Firmware Release 10.85 adds support for Run Mode Store (RMS) to User Flash, SVC_REQ 63 Logic Driven Data Write to Non-Volatile Storage, three diagnostic %S bits, and Audit Trail.

  • Page 4: Field Upgrades

    All production versions of the CPE400 and CPL410 are field upgradeable to this PACSystems CPU release using the upgrades available for download on the Landing Pages found at https://www.emerson.com/Industrial-Automation-Controls/Support. Release in line with software license compliance requirements. PACSystems CPU Upgrade The RX3i firmware upgrade process may take up to four minutes to complete, depending on the contents of the update.

  • Page 5: Release History

    GFK-3003AA May 2023 Release History CPE400 Firmware Version (Build Number) Catalog Field Upgradeable Elements Date Number ACC403 FPGA CPLD PACEdge/Field Agent Systems EP Base IC695CPE400- 10.85 May 2023 02.03.00 02.03.07 3.03 PACEdge 2.2 + Connext ADBA (ELTH) IC695CPE400- 10.70 Nov 2022 02.03.00 02.03.06 3.03...
  • Page 6 GFK-3003AA May 2023 Firmware Version (Build Number) Catalog Field Upgradeable Elements Date Number ACC403 FPGA CPLD PACEdge/Field Agent Systems EP Base IC695CPE400- 9.75 Mar 2019 02.03.00 02.03.03 3.03 2018_06_15_144951 ABAL (EB8A) IC695CPE400- 9.70 Dec 2018 02.03.00 02.03.03 3.03 2018_06_15_144951 ABAK (EAKR) 9.55 IC695CPE400-ABAJ...
  • Page 7 GFK-3003AA May 2023 CPL410 Firmware Version (Build Number) Catalog Field Upgradeable Elements Date Number ACC403 FPGA CPLD PACEdge/Field Agent Systems EP Base 10.85 IC695CPL410-ACAN May 2023 02.03.00 02.03.07 3.03 PACEdge 2.2 + WebHMI (ELTH) 10.70 IC695CPL410-ACAN Nov 2022 02.03.00 02.03.06 3.03 PACEdge 2.2 + WebHMI (EKPX)
  • Page 8 GFK-3003AA May 2023 RX3i PLC: Functional Compatibility Compatibility Issue Description Feature Minimum Version of PME Required Run Mode Store (RMS) to PACSystems RX3i CPU firmware revision 10.85 (or later). User Flash and %S53, PAC Machine Edition 10.2 (or later) to configure Run Mode %S54, &...
  • Page 9 GFK-3003AA May 2023 Compatibility Issue Description PAC Machine Edition Logic Developer PLC 9.50 SIM 13 and Increased Program Block PACSystems PLC Firmware R9.70, or later are required to Count support user programs with more than 512 blocks, up to a maximum of 768 blocks.
  • Page 10 GFK-3003AA May 2023 Compatibility Issue Description Minimum Minimum Minimum Minimum Feature CPE400 CPL410 3iPNS CEP001 Version Version Version Version IC695CMM002/CMM004 Serial Module Support in 3.35 the IC695PNS001- 10.30 10.30 (-Bxxx hw 2.80 Bxxx/PNS101 and and PNS101) IC695CEP001 Increased PROFINET Device Support (up to 10.15 64 simplex or 32 Hot Standby Redundancy)
  • Page 11 GFK-3003AA May 2023 Compatibility Issue Description The IC695ACC403 Energy Pack automatically saves user memory to nonvolatile storage when the CPE400/CPL410 is powered off and restores it to RAM when the CPE400/CPL410 is turned on. Consequently, the CPE400 and CPL410 do not support Service Request 56 &...
  • Page 12 GFK-3003AA May 2023 Compatibility Issue Description The only energy pack compatible with the IC695CPE400 and CPL410 is the IC695ACC403. The CPE400 and CPL410 are not compatible with the ICRXIACCEPK01 RXi Controller Energy Pack, the IC695ACC400 CPE305/310 Energy Pack, or the IC695ACC402 CPE330 Energy Pack.
  • Page 13 GFK-3003AA May 2023 Compatibility Issue Description The Primary and Secondary CPUs in a redundant system must be the same model. For Supported Primary and example, two CPE400s may be paired together as the Primary and Secondary CPUs. Secondary CPUs Likewise, two CPL410s may be paired together. Pairing CPE400 and CPL410 as Primary and Secondary CPUs in a redundant system is not permitted.
  • Page 14 GFK-3003AA May 2023 PACEdge: Functional Compatibility Note: For a complete list of PACEdge functional Compatibility, please consult GFK-3198, PACEdge Important Product Information. RX3i PLC: Problems Resolved in Current Release Subject ID code Description DE9500 Cyber Security DE9617 Added security enhancements to harden the product against a malicious Updates SFDC actor.
  • Page 15 It is recommended that users thoroughly test their flash application before writing it to flash and disabling the RUN/STOP switch. RX3i CPUs that experience this issue must be returned to Emerson Automation Solutions for repair. Using OEM Passwords...
  • Page 16 GFK-3003AA May 2023 Open Issue ID code Description Normal sweep allows the configuration of the Controller Communications Window Timer for Limited operation and a time range from 0 to 255 ms Controller (default 10 ms). However, the system is currently ignoring settings in the Communication 0 to 9 ms range which results in an effective window time of 10 ms for this Window Timer settings...
  • Page 17 GFK-3003AA May 2023 Open Issue ID code Description Performing a RUN Mode Store of a project where the total number of variables in EGD exchanges is near the maximum of 30,000 may result in a Run Mode Store of EGD DE4130 Controller Sequence Store Failure (Group: 137;...
  • Page 18 GFK-3003AA May 2023 Open Issue ID code Description The OPC UA Server in PACSystems controllers with firmware versions 10.10 and later, on controllers that are configured for OPC UA Non-Transparent Redundancy (IC695CPE330, IC695CPE400, and IC695CPL410) and in a redundant server pair, do not populate the information necessary to OPC UA Server Non- automatically connect to the remote OPC UA server using the built-in OPC Transparent...
  • Page 19 GFK-3003AA May 2023 Open Issue ID code Description In certain instances, where User Logic is of sufficient size and a COMMREQ is issued on the first logic sweep, a race condition exists between the determination of the CPU Run/Stop state and logic-driven issuance of a Ethernet COMMREQs COMRREQ which may cause the COMMREQ to be aborted before its not always delivered on...
  • Page 20 GFK-3003AA May 2023 Open Issue ID code Description Do not attempt to store In a system in which the hardware configuration is stored from one target logic and configuration and logic is stored from a different target, powering up from flash will not CR-6450 to a PLC from multiple work.
  • Page 21 GFK-3003AA May 2023 Open Issue ID code Description SRTP channel transfers When SRTP communications are interrupted by a power cycle, the Ethernet may take up to 20 ISS155214 interface may require up to 20 seconds to re-establish the TCP connection seconds after the used for SRTP communications.
  • Page 22 GFK-3003AA May 2023 Open Issue ID code Description STXPNS001 Firmware revision is not Firmware revision information for the STXPNS001 does not display correctly displayed correctly DE568 using PAC Machine Edition. The correct firmware revision information can be when viewed using ISS182843 viewed on the module using HyperTerminal.
  • Page 23 GFK-3003AA May 2023 Open Issue ID code Description Rarely, a CPE330, CPE400, or CPL410 may log an INFO_CPU_SOFTWR – CPU software event fault. (Group140; Error 430; Extra Data 01 28 0a 91 80 4a 00 02 INFO CPU 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00) SOFTWR –...
  • Page 24 GFK-3003AA May 2023 Operational Notes: CPE400/CPL410 CPU & Embedded Ethernet Operational Note Description The IP Address of any CPE400/CPL410 LAN may be viewed via the OLED menu. The default IP Addresses programmed at the factory are: Default IP Addresses LAN1 LAN2 LAN3 for Embedded Ethernet...
  • Page 25 GFK-3003AA May 2023 Operational Note Description The CPE400 and CPL410 power up as follows: When an IC695ACC403 Energy Pack is not connected, the CPU requires • approximately 75 seconds to complete power-up. When power is applied, all the Ethernet Port LEDs turn on and the status indicator LEDs on the front of the unit flash several times and turn off.
  • Page 26 GFK-3003AA May 2023 Operational Note Description The rackless CPUs have four independent Ethernet LANs with six auto-negotiating, full- duplex 10/100/1000 Ethernet Ports: LAN 1 & LAN 2 support two IP Addresses and the following protocols: OPC UA Server with support for up to 5 concurrent sessions with up to 10 •...
  • Page 27 GFK-3003AA May 2023 Operational Note Description Modbus/TCP & SRTP Client COMMREQ Modbus/TCP and SRTP Client Channels are supported. Set the COMMREQ SYSID to Function Block SYSID & 0x0000 and TASK to 0x10000 to use these functions on the CPU. TASK During power-up, when a CPE400 or CPL410 is configured as a secondary redundancy Secondary CPU, it waits up to 70 seconds to detect the primary unit.
  • Page 28 GFK-3003AA May 2023 Operational Note Description The CPU’s Time-of-Day Clock may be set by the PACSystems Runtime or the PACEdge operating system: The clock may be set from PACSystems using utilities in PAC Machine Edition. • Setting the Time-of-Day The CPL410’s clock may be set using standard Linux commands or a network •...
  • Page 29 GFK-3003AA May 2023 Operational Note Description "ECC jumper should be A "System Configuration Mismatch" or "ECC jumper should be disabled but is enabled" disabled but is enabled" fault is recorded in the PLC fault table after downloading hardware configuration to a Fault After CPE400/CPL410.
  • Page 30 GFK-3003AA May 2023 Operational Notes: All RX3i CPUs The following apply generically to any RX3i CPU: Operational Note Description SRTP & Modbus TCP Channel commands on RX3i CPUs with embedded Ethernet SRTP or Modbus (IC695CPE3xx and IC695CPE4xx) and the IC695ETM001 RX3i Ethernet module provides Channel COMMREQ different COMMREQ error codes whenever a request is sent to an unreachable server.
  • Page 31 GFK-3003AA May 2023 Operational Note Description In Release 5.00 or later, if an attempt is made to download a C block containing undefined symbols, the download will fail. Machine Edition will display the following message in the Undefined Symbols in Feedback Zone: Error 8097: Controller Error –...
  • Page 32 GFK-3003AA May 2023 Operational Note Description Changing the IP Storing a hardware configuration with a new IP Address to the RX3i while connected via Address of the Ethernet will succeed, then immediately disconnect because the RX3i is now using a Ethernet Interface different IP Address than the Programmer.
  • Page 33 GFK-3003AA May 2023 Operational Note Description Send Information Report (COMMREQ Send Information Report COMMREQ requests, with a minimum interval between host 2010) requests may accesses of 200 ms or less, may fail if issued from the CPU’s embedded Ethernet port. A fail at minimum COMMREQ Status Word value of 0290H, Period expired before transfer completed;...
  • Page 34 GFK-3003AA May 2023 Operational Note Description The PACSystems CPU receives requests to change between a stop and run mode from many different sources. These include (but are not limited to) PAC Machine Edition, HMIs, the user application, and the RUN/STOP switch. Since there are many potential sources for a mode change request, it is possible to receive a new mode change request while another is already in progress.
  • Page 35 GFK-3003AA May 2023 Operational Notes: Embedded PROFINET Controller Operational Note Description PROFINET Command Line The Embedded PROFINET Controller does not support the Command Line Interface Interface (CLI). Mirroring a Primary CPE400’s hardware configuration to the Secondary in PAC Machine Edition (PME) version 9.50 SIM 6 or earlier results in a hardware configuration containing two Media Ring Managers (MRM) if the Primary is configured as an MRM in a PROFINET MRP ring.
  • Page 36 GFK-3003AA May 2023 Operational Note Description The PNIO_DEV_COMM function block may require multiple logic scans to return the status of an I/O device. It must continue to receive power flow until: The ENO output turns on indicating that the function block’s parameters •...

  • Page 37: Product Documentation

    PACSystems RX3i Sequence of Events User Manual GFK-3050 PACEdge Important Product Information GFK-3198 PACEdge User Manual GFK-3178 User manuals, product updates, and other information sources are available on the Emerson support site. Please see the link located at the end of this document.

  • Page 38: Support Links

    © 2023 Emerson. All rights reserved. Emerson Terms and Conditions of Sale are available upon request. The Emerson logo is a trademark and service mark of Emerson Electric Co. All other marks are the property of their respective owners.
