3 INSTALLATION

3.1 Connections

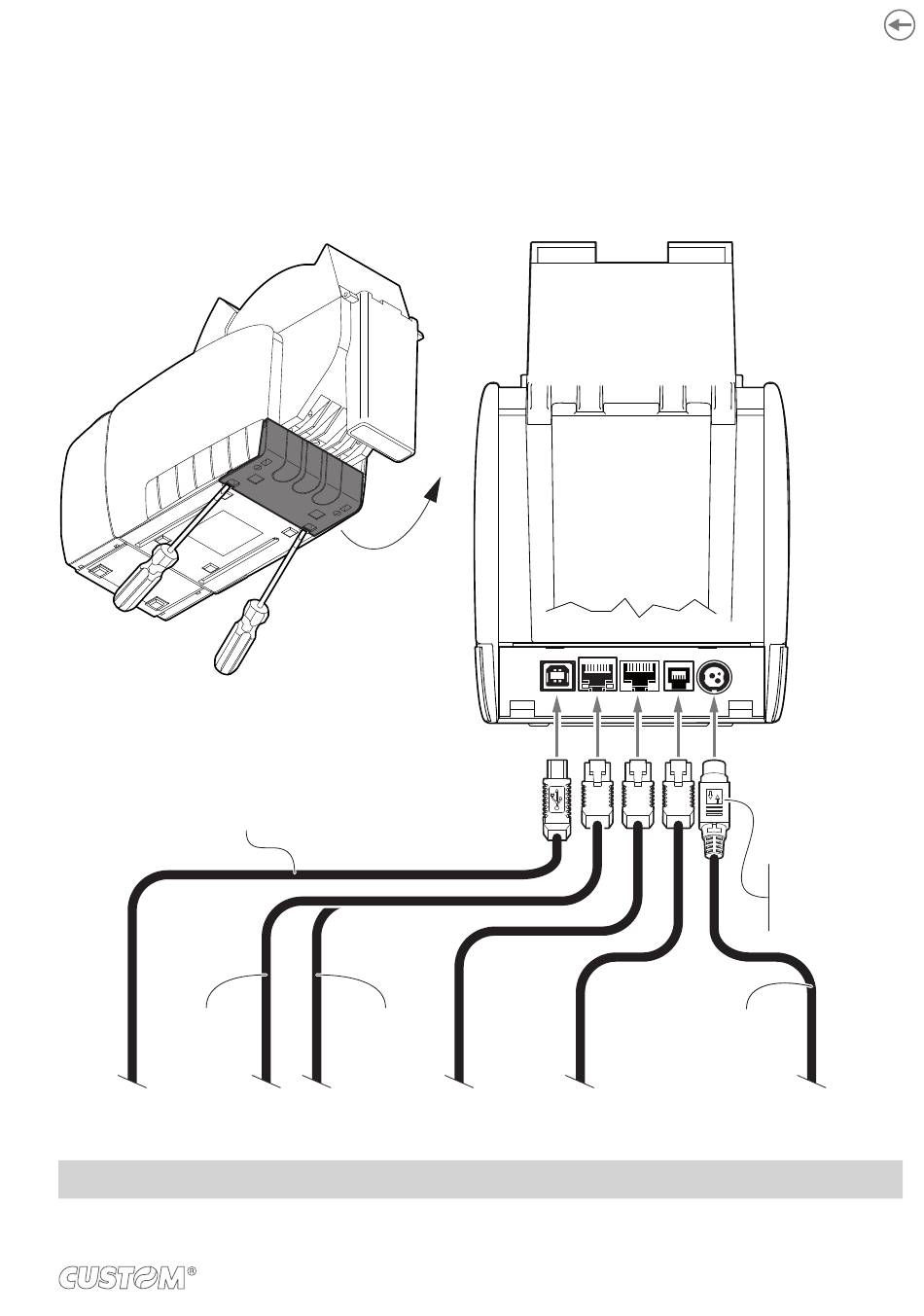

The following igure shows the possible connections for the device. When the RS232 and USB communication cables are
connected to the device at the same time, communication takes place via the USB port.
USB standard cable
(included)
Ethernet
CrossOver
standard cable
PC
USB device
ATTENTION: In some using conditions, we recommend the installation of a ferrite core on the power supply cable.
Ethernet UTP
standard cable
(pin-to-pin)
PC Network
HUB Barcode reader
USB ETH
PC Cash drawer
RS232 DK VIn 24 Vdc
Correctly insert the
power supply
connector with the flat
side upwards
Power supply cable
(included)
Power supply
