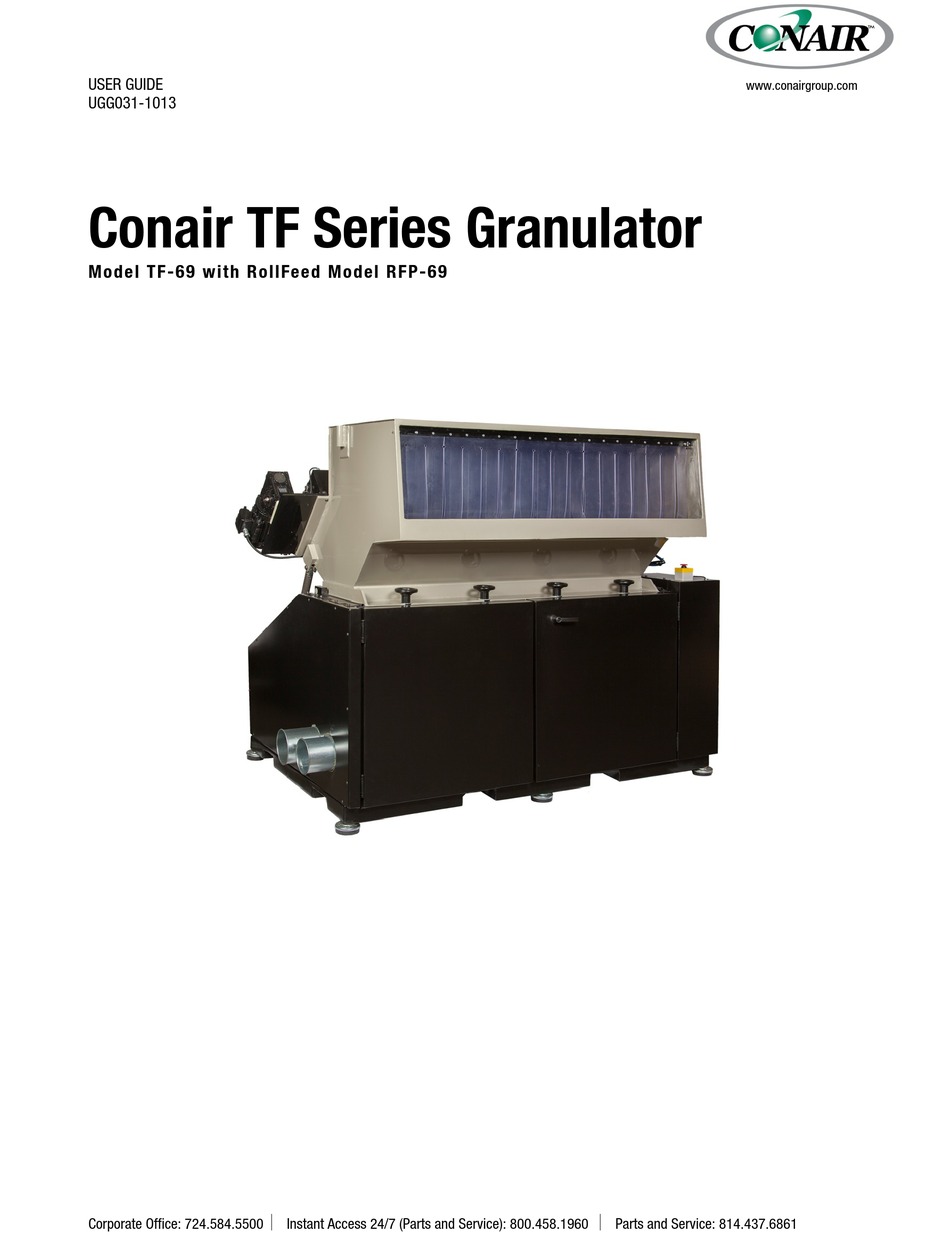

- Page 1 USER GUIDE www.conairgroup.com UGG031-1013 Conair TF Series Granulator Model TF-69 with RollFeed Model RFP-69 Corporate Office: 724.584.5500 Instant Access 24/7 (Parts and Service): 800.458.1960 Parts and Service: 814.437.6861...
- Page 2 Disclaimer: Conair shall not be liable for errors contained in this User Guide or for incidental, consequential damages in connection with the furnishing, performance or use of this information. Conair makes no warranty of any kind with regard to this information, including, but not limited to the implied warranties of merchantability and fitness for a particular purpose.
-
Page 3: Table Of Contents
TABLE OF CONTENTS SAFETY .......................... 1 MACHINE DESCRIPTION AND SPECIFICATIONS ............2 PRE-INSTALLATION ..................... 3 ELECTRICAL INSTALLATION ..................4 VERIFYING ROTATION ....................4 FIRST TIME OPERATION ..................... 5 MAINTENANCE ......................6 SCREEN REMOVAL AND INSTALLATION ..............6 BLADE / KNIFE SHARPENING ..................8 BLADE / KNIFE REPLACEMENT .................. -
Page 4: Safety
SAFETY: CONAIR EQUIPMENT IS DESIGNED AND CONSTRUCTED WITH STATE OF THE ART PRECISION, FROM THE FINEST MATERIALS, TO GIVE YEARS OF SERVICE AND SAFE OPERATION. WARNING SIGNS AFFIXED TO THE MACHINES ARE FOR YOUR PROTECTION AND MUST BE ADHERED TO. -
Page 5: Machine Description And Specifications
MACHINE DESCRIPTION: This machine is a knife granulator specially designed for thermoplastic materials. The thermoplastic material to be granulated enters the infeed hopper and falls into the cutting chamber where the blades cut the material between the rotating and fixed knives. The cut material then drops into the discharge hopper. Granulated material size depends exclusively on the screen hole size and not on blade design or quantity. -
Page 6: Pre-Installation
PRE-INSTALLATION CHECK: Insure the proper electrical voltage supply is provided. Refer to the serial tag on the granulator. With electrical power off and locked out, open the machine completely. Visually inspect the hopper and screen cradle for any foreign objects. Close machine completely. -
Page 7: Electrical Installation
ELECTRICAL INSTALLATION: Upon receiving the equipment, verify that the voltage supply corresponds to the data plate as specified for the granulator. We recommend installing a disconnect between the power supply and the granulator starter in order to energize the equipment and to protect the electrical system. Always disconnect the electrical supply before cleaning the machine, performing maintenance or adjusting blades. -
Page 8: First Time Operation
FIRST TIME OPERATION: Before operating the granulator it is necessary to perform a careful inspection, checking that there are no materials inside the cutting chamber, especially metallic parts or debris that might have fallen into it during transportation. After verifying this, spin the rotor manually using the pulley or flywheel as an aid, to check for free spinning. Verify blade adjustment. -
Page 9: Maintenance
GRANULATOR OPERATION: Conair recommends running the granulator for the first time, with low quality material and giving it two or three passes through the granulator, so that the internal walls of the machine can be cleaned from quantities of rust inhibitor grease or dust. - Page 10 SCREEN INSTALLATION: Remove all regrind and foreign material from the screen, cradle and its mating surfaces. In order for the screen to hold firmly in place, the cradle must close without interference. NOTE: This is a non- reversible type screen. Screen part number stamp on the edge should face the front in the screen cradle.
-
Page 11: Blade / Knife Sharpening
Remove and sharpen blades after checking the condition (if necessary). If metal fragments have accidently fallen into the granulator and chipped the cutting edges Conair advises blades be replaced as sharpening will not remove traces of the chipping. The sharpening angles are given on the next page. -
Page 12: Blade / Knife Replacement
BLADE / KNIFE REPLACEMENT: Disconnect and lock out power per standard procedures. Open sound enclosure doors, if applicable. Remove sound panels from the rear of the machine, if applicable. Open rear cutting chamber door. Make sure the hopper hold down bolts are loosened, swung free from the hopper frame first. Open hopper using the powered actuator. -
Page 13: Stationary Knife Adjustment
STATIONARY KNIFE ADJUSTMENT: Using a 0.006 up to a 0.010 feeler gauge at the cutting edge of a bed knife, turn the rotor in reverse, by hand, and turn the set screws until there is a snug fit with the feeler gauge between the cutting edge of the highest rotor knife tip and the bed knife. -
Page 14: Tf-69 Spare Parts List
TF-69 SPARE PARTS LIST: Part number Description Quantity 12651015E100A TF-69 OPEN ROTOR 3X4 122040080000A BED KNIFE 2535 STD 12204008CB00A SHORT BED KNIFE 2535 12654001E000A ROTOR KNIFE PULLEY SIDE TF-69 3X4 12654002E000A ROTOR KNIFE OPPOSITE PULLEY SIDE TF-69 CH 3X4 12654003E000A ROTOR KNIFE CENTRAL PULLEY SIDE TF-69 CH 3X4 12654004E000A ROTOR KNIFE CENTRAL OPPOSITE PULLEY SIDE TF-69 CH 3X4... -
Page 15: Rollfeed - Parts List
ROLLFEED RFL-69 PARTS LIST: Part number Description Quantity 100620022M10A SIDE PLATE RFL-69 5TRACHUD12420 BALL BEARING DODGE Ø 1-3/8 INCH 100610012M10A FIXED DRIVE ROLLER 100610012M20A MOBILE DRIVE ROLLER 5NEUCLNXNEDL1 PNEUMATIC CYLINDER 5TRACHUD1253A BALL BEARING Ø 1-1/4 INCH 10062018M10A SHEET PROTECTION RFL-69 ROLL FEEDER 1006120052M10A BASE PLATE RFL-69 ROLL FEEDER 100630012M10A... - Page 16 PARTS LIST: Corporate Office: 724.584.5500 Instant Access 24/7 (Parts and Service): 800.458.1960 Parts and Service: 814.437.6861...
- Page 17 PARTS LIST: Corporate Office: 724.584.5500 Instant Access 24/7 (Parts and Service): 800.458.1960 Parts and Service: 814.437.6861...
-
Page 18: Troubleshooting
TROUBLESHOOTING GRANULATORS: PROBLEM POSSIBLE CAUSE SUGGESTED SOLUTION Stalled machine 1. Overloading 1. Slow rate of feeding material. 2. Worn or damaged 2. Re-adjust or sharpen improperly set knives knives as required. 3. Screen and/or blower 3. Check to see if screen is clogged blockage and check rotation of motor. -
Page 19: Torque Chart
TORQUE CHART FOR BOLTS: Tightening torque guide Tightening torque guide SAE Grade 8 - coarse thread SAE Grade 8 - fine thread SIZE CLAMP PLAIN PLATED SIZE CLAMP PLAIN PLATED LOAD FT-LB FT-LB LOAD FT-LB FT-LB 1/4-20 2,850 1/4-28 3,263 5/16-18 4,725 5/16-24... -
Page 20: Optional Cooling System
OPTIONAL COOLING SYSTEM: Series TF granulators have bores in the bearing housings (as shown in the illustration below) to allow the air flow created by the knives to cool the cutting chamber. Additionally the granulator uses cooling water in the inclined plate. The use of cooling water is not always required. -
Page 21: Maintenance Records
MAINTENANCE RECORDS Date Type of work performed Performed by Corporate Office: 724.584.5500 Instant Access 24/7 (Parts and Service): 800.458.1960 Parts and Service: 814.437.6861... -
Page 22: We're Here To Help
We’re Here to Help Conair has made the largest investment in customer support in the plastics industry. Our service experts are available to help with any problem you might have installing and operating your equipment. Your Conair sales representative also can help analyze the nature of your problem, assuring that it did not result from misapplication or improper use. -
Page 23: Equipment Guarantee
(except for parts that are typically replaced after normal usage, such as filters, liner plates, etc.). Conair’s guarantee is limited to replacing, at our option, the part or parts determined by us to be defective after examination. The customer assumes the cost of transportation of the part or parts to and from the factory.
