Summary of Contents for Kingfisher NMRS1500

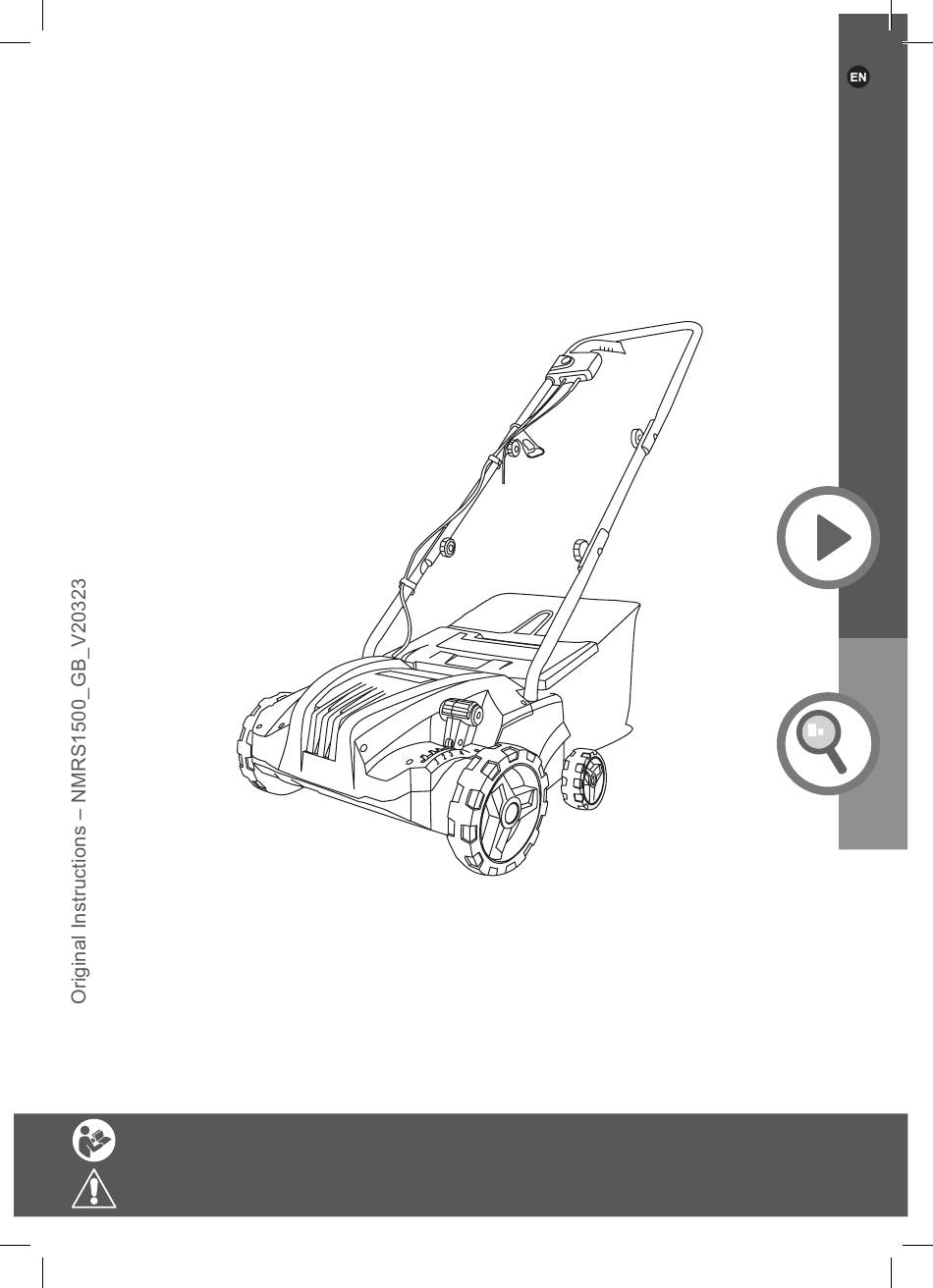

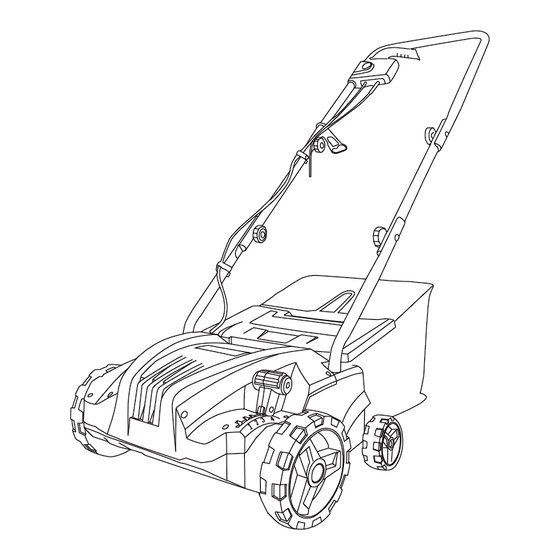

- Page 1 RAKER & SCARIFIER 1500 W NMRS1500 EAN: 3663602627173 / 3663602627203 MAND1_2223 WARNING: Read the instructions before using the product. 3663602627173_MNL_GB_V03.indd 1 30/3/2023 11:49 AM...
-
Page 2: Table Of Contents
NMRS1500 Let’s get started... These instructions are for your safety. Please read through them thoroughly before use and retain them for future reference. Getting Started... Safety information Your product Before start more detail... Product functions Operation Care maintenance Troubleshooting Recycling... -
Page 3: Safety Information
Safety information NMRS1500 Safety warnings Children should be supervised to ensure that they do not play with the product. Read carefully before use. IMPORTANT Keep for future reference. Safe operation practices Training 1. Read the instructions carefully. Be familiar with the controls and the proper use of the machine. - Page 4 Safety information NMRS1500 Operation 2. Avoid operating the machine in wet grass. 3. Never overreach and keep the balance at all times. Always be sure of your footing at all times, especially on slopes. 4. Walk, never run. 5. Mow across the face of slopes, never up and down.
- Page 5 Safety information NMRS1500 Maintenance and storage 1. Keep all nuts, bolts and screws tight to be sure the equipment is in safe working condition. 2. Check the debris collector frequently for wear or deterioration. 3. Replace worn or damaged parts for safety.
- Page 6 Safety information NMRS1500 Vibration and noise reduction To reduce the impact of noise and vibration emission, limit the time of operation, use low-vibration and lownoise operating modes as well as wear personal protective equipment. Take the following points into account to minimize the vibration and noise exposure risks: 1.
- Page 7 Safety information NMRS1500 Symbols the following symbols and abbreviations. Familiarise yourself with them to reduce hazards like personal injuries and damage to property. Volt, (alternating voltage) Watt Hertz Ampere Kilowatt cm³ Cubic centimetre per minute Millimetre Kilogram dB(A) Decibel (A-rated)
- Page 8 Safety information NMRS1500 Work across the face of slopes, never up and down. Inspect the area where the product is to be used and remove all objects which could be thrown by the product. If objects are hidden while operating stop the motor and remove them.
-
Page 9: Your Product
Your product NMRS1500 3663602627173_MNL_GB_V03.indd 9 30/3/2023 11:49 AM... - Page 10 Your product NMRS1500 1. Handle 2. Upper handle bar 15. Grass catcher 3. Middle handle bar 16. Cord clip (x2) 4. Power cord & plug 17. Cord strain relief 5. Handle assembly set (x4) 18. Switch box Locking knob 19. Lock-off button Bolt 6.
- Page 11 Your product NMRS1500 General : > Rated voltage : 230-240V~, 50Hz > Rated input power: : 1500 W > Rated no-load speed > Max. cutting width : 320 mm > Working height range : 4 adjustments Scarifying Raking > Grass catcher volume : 28 l >...
-
Page 12: Before You Start
Your product / Before you start NMRS1500 WARNING! The vibration emission value during actual use of the tool can differ from the declared value depending on the ways in which the tool is used. Identify safety measures to protect the operator that are based on an... - Page 13 Before you start NMRS1500 Assembly 1. Loosen screws (9) on both side, do not remove completely (Fig. 1). Fig. 1 2. Align the lower hand bars (6) with the supports (8) (Fig. 2). Make sure the holes in the lower handle bars face outwards and secure the bars with one screw (9) to each support (8) (Fig.
- Page 14 Before you start NMRS1500 Fig. 4 Fig. 5 4. Slide the cord strain relief (17) onto the upper handle bar (2) (the side of handle with two holes) before assembly (Fig. 6&7). Fig. 6 Fig. 7 5. Align the upper handle bar (2) with the middle handle bar (3), make sure the two holes are on the right side (Fig.
- Page 15 Before you start NMRS1500 back cover and keep them on hand. Take down the back cover, and attach switch box (18) onto the upper handle bar (2). Click the back cover into place. Then secure it by tightening the screws (Fig.10&11&12).
- Page 16 Before you start NMRS1500 Grass catcher Grass catcher Attach the grass catcher (15) to the product before operation. Attach the grass catcher (15) to the product before operation. WARNING! Do not attempt to use the product without the grass catcher WARNING! Do not attempt to use the product without the grass catc (15) (Fig.14&15).
- Page 17 Before you start NMRS1500 NOTE: A full grass catcher will reduce the performance of this product. remove it. 5. Empty the collected material onto a compost heap and reattach the grass catcher (15) onto the product. WARNING! The motor must be switched off and the cutting device must have Connection to the power supply (for UK only) WARNING! Always use a residual current supply (RCD) protected supply.
- Page 18 Before you start NMRS1500 Fig. 17 Fig. 18 6. Connect the plug (4) to the socket of the extension cord (Fig.19). Fig. 19 7. Connect the plug of the extension cable to a suitable power source. WARNING! 8. Your product is now ready to be used.
-
Page 19: In More Detail
Product functions NMRS1500 Intended use • This product is intended for raking and scarifying on the lawns in domestic gardens. • the grass with specially adapted prongs that collect and remove any thatch from the the ground resulting in better airing. - Page 20 Product functions NMRS1500 2. Adjust the lever (12) to one out of the four positions. Read the adjusted depth from the scale. Application Setting Position Depth Scarifying Depth Raking scarifying an unkempt DO NOT use for maximum -12 mm lawn, removing thick...
- Page 21 Product functions NMRS1500 Cutting device The product has two functions, raking and scarifying. The scarifying cylinder is pre- assembled on the product. Fig. 22 (Scarifying cylinder with Fig. 23 (Raking cylinder with blades) springs) Replacing WARNING! Always switch the product off, disconnect it from power supply Observe the technical requirements of this product (see section Technical 1.
- Page 22 Product functions NMRS1500 4. To change the cutting device (21), raise the bearing seat (23) then withdraw the cutting device from the drive shaft. 5. Remove the bearing seat (23) from the cutting device (21), and attach it onto a new one.
-
Page 23: Operation
Operation NMRS1500 General operation 1. Check the product, its power cord and plug as well as accessories for damage before each use. Do not use the product if it is damaged or shows wear. 3. Push the product forward by its handle. Keep the handle dry to ensure safe support. - Page 24 Operation NMRS1500 make a row or two around the circumference of the bed. 14. Pay special attention when changing direction. WARNING! the product off, disconnect it from the power supply and let it cool down. Extensive vibration of the product during operation is an indication of Scarifying Consider the weather when scarifying.
-
Page 25: Care And Maintenance
Care and maintenance NMRS1500 The golden rules for care WARNING! Always switch the product off, disconnect it from power supply and let the product cool down before performing inspection, maintenance 1. Keep the product clean. Remove debris from it after each use and before storage. - Page 26 Care and maintenance NMRS1500 3. Keep the cutting device (21) sharp to ensure a good cutting performance. Have a Grass catcher 2. Clean the grass catcher (15) after operation. Let the grass catcher dry thoroughly before storing to avoid mildew.
- Page 27 Care and maintenance NMRS1500 13AMP fuse approved to BS 1362 Connect Blue to N (Neutral) Brown L (Live) Cable grip WARNING! Never connect live or neutral wires to the earth terminal of the plug. NOTE: in disposing of the plug and severed cable, it must be destroyed to prevent engaging into a socket.
-
Page 28: Troubleshooting
Care and maintenance / Troubleshooting NMRS1500 Transportation 1. Switch the product off and disconnect it from power supply before transporting it anywhere. 2. Attach transportation guards, if applicable. 3. Adjust the cutting depth to the transportation stage (refer to “Product functions –... -
Page 29: Recycling And Disposal
Troubleshooting / Recycling and disposal NMRS1500 2. Product does 2.1. Extension cord not 2.1. Use a proper extension not reach full suitable for operation cord power with this product 2.2. Power source 2.2. Connect to another (e.g. generator) has too... -
Page 30: Guarantee
Guarantee NMRS1500 Guarantee We take special care to select high quality materials and use manufacturing techniques that allow us to create products incorporating design and durability. This product has a manufacturer’s guarantee of 2 years against manufacturing defects, from the date of purchase (if bought in store) or date of delivery (if bought online), at no additional cost for normal (non-professional or commercial) household use. - Page 31 Guarantee NMRS1500 Customer care and technical helpline A better way to repair your tools designed to last. But if a fault develops with your garden power tool and you need to claim under the guarantee, the Customer Care and Technical Helpline can support with technical assistance or if required, arrange a free courier collection from your home, assess your garden power tool for fault, repair it, and return it.
- Page 32 Guarantee NMRS1500 Availability of spare parts For assistance contact the customer services helpline: Further information about this product can also be found at: 3663602627173_MNL_GB_V03.indd 32 30/3/2023 11:50 AM...
-
Page 33: Declaration Of
Nazwa i adres producenta lub jego upoważnionego przedstawiciela: Denumirea și adresa producătorului sau a reprezentantului său autorizat: Nombre y dirección del fabricante o de su representante autorizado: Nome e endereço do fabricante ou do respetivo mandatário: Kingfisher International Products B.V., Rapenburgerstraat 175E, 1011 VM Amsterdam, The Netherlands This declaration of conformity is issued under the sole responsibility of the manufacturer. - Page 34 Authorised signatory and technical file holder/signataire et responsable de la documentation technique authorisé/ podmiot uprawniony do wystawienia i adres prezechowywania dokumentacji technicznej/semnatar autorizat și deținător al dosarului tehnic/firmante autorizado y titular del expediente tecnico/ signatário autorizado e detentor da ficha técnica Kingfisher International Products B.V., Rapenburgerstraat 175E, 1011 VM Amsterdam,...
- Page 35 Product Raker & Scarifier 1500W NMRS1500 Serial number range 000001 to 999999 Name and address of the manufacturer or his authorised representative: Kingfisher International Products Limited 1 Paddington Square London W2 1GG United Kingdom This declaration of conformity is issued under the sole responsibility of the manufacturer.
- Page 36 Manufacturer: UK Manufacturer: 1 Paddington Square, London, W2 1GG, United Kingdom EU Manufacturer: ational Products B.V. Rapenburgerstraat 175E 1011 VM Amsterdam The Netherlands www.diy.com To view instruction manuals online, 3663602627173_MNL_GB_V03.indd 33 30/3/2023 11:50 AM...
