ultraPLAY uPLAY TODAY Installation Instructions Manual

Hamilton ridge
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

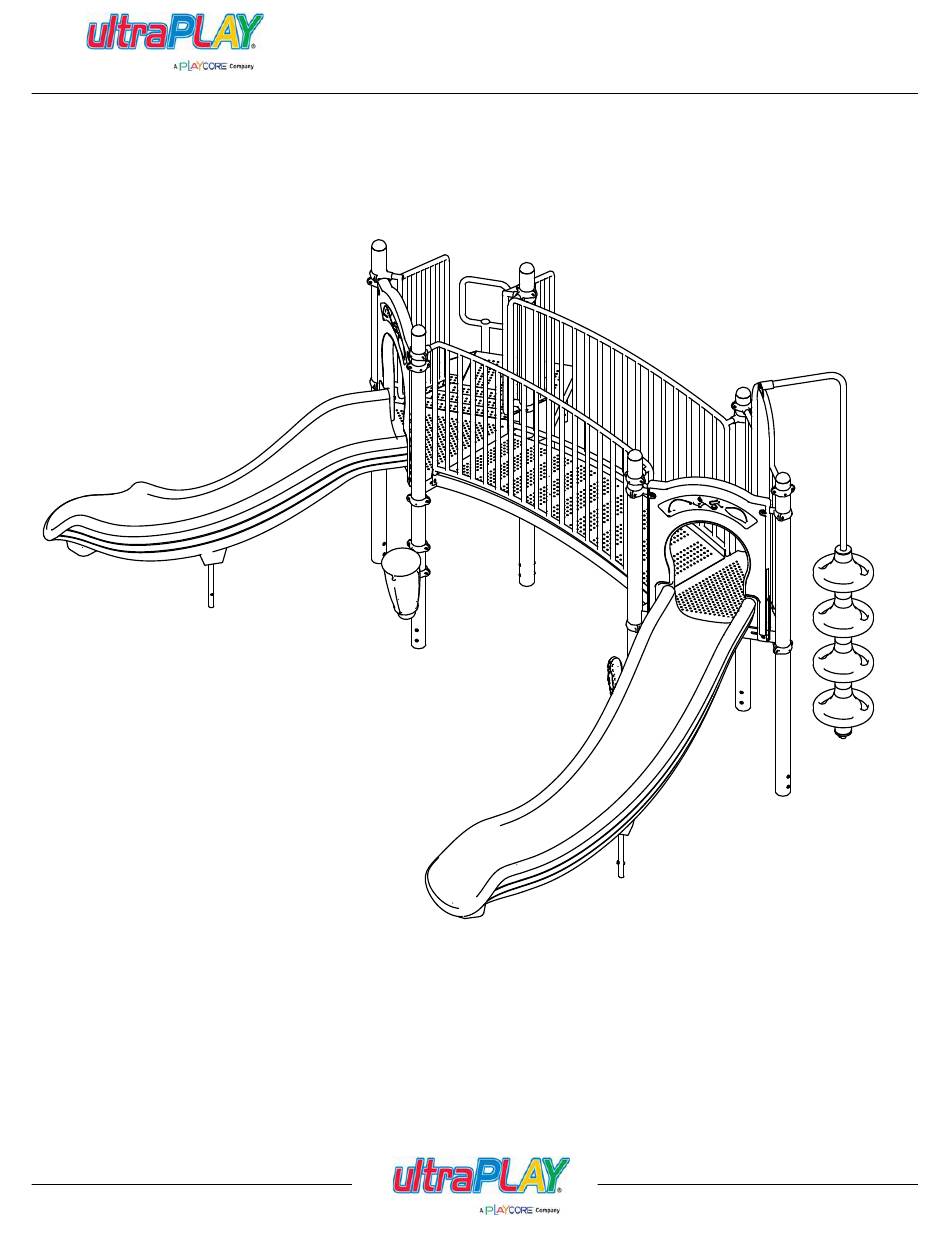

u
PLAY TODAY
HAMILTON RIDGE
MODEL # UPLAY-004-N
MODEL # UPLAY-004-P
Issued/Revised: 10/13/15
www.ultraplay.com
800.458.5872

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the uPLAY TODAY and is the answer not in the manual?

Questions and answers

Related Manuals for ultraPLAY uPLAY TODAY

Summary of Contents for ultraPLAY uPLAY TODAY

  • Page 1 PLAY TODAY HAMILTON RIDGE MODEL # UPLAY-004-N MODEL # UPLAY-004-P Issued/Revised: 10/13/15 www.ultraplay.com 800.458.5872...
  • Page 3 To register your equipment and activate your warranty, please go to www.ultraplay.com within 30 days of delivery. This will allow UltraPlay to have a record of your purchase in case of warranty claims. For more information on UPlayToday and UltraPlay products, please do not hesitate to give us a call or visit ultraplay.com.
  • Page 4 U.S. Consumer Product Safety Commission, ASTM standard F-1487 and Canadian Standard CAN/CSA-Z-614. Your UPlayToday structure has a maximum fall height of 72". Issued/Revised: 01/27/14 www.ultraplay.com 800.458.5872...
  • Page 5 All protruding nuts and bolts should be eliminated; sharp edges on pipes should be capped or removed. Check for bent, broken, or severely worn pipe and replace. Examine slide bedways, bedrails, handrails and exits for foreign objects, holes, and rough edges. Issued/Revised: 01/27/14 www.ultraplay.com 800.458.5872...

  • Page 6: Routine Maintenance

    The following are some regular maintenance areas of note: -Check for and repair damage caused by wear or vandalism, a major factor in injury causing situations. Continued on next page Issued/Revised: 01/27/14 www.ultraplay.com 800.458.5872...
  • Page 7 7" and 15". -Check the surface area around slide exit for erosion and other damage and repair if necessary. -Check for visible cracks, bending, warping, rusting, or breakage of any component and repair as needed. Issued/Revised: 01/27/14 www.ultraplay.com 800.458.5872...
  • Page 8 -Check for exposed ends of tubing that should be covered with plugs or caps. -Check for loose bolts, nuts, etc. and tighten. -Check for broken or missing rails, steps, rungs, or seats and replace. Issued/Revised: 01/27/14 www.ultraplay.com 800.458.5872...
  • Page 12 1-year from the date of shipment to the original purchaser. In the event of a claim under this warranty, UltraPlay will replace the component at no cost within the first 12 months from date of shipment to the original customer. Equipment not specifically addressed in the following paragraphs is also subject to this limited 1 year warranty against defects in materials and/or workmanship.

  • Page 13: Warranty Exclusions

    Red Bud, IL 62278 Or Contact a Customer Service Representative at: 1-800-458-5872 Within 60 days of notice of claim under warranty, UltraPlay will make arrangements to replace the damaged product. UltraPlay will cover freight costs within the continental United States. UltraPlay is not responsible for freight costs associated with products located outside the continental United States.
  • Page 14 IMPORTANT! Please read the entire Installation Instructions packet before beginning the installation. UltraPlay has designed UPlayToday to take advantage of all Consumer Product Safety Commission (CPSC) and ASTM guidelines in force at the time of purchase in an effort to prevent playground accidents.
  • Page 15 Refer to the Tools Required page for a detailed list. INSTALLATION GUIDELINES: 1. Compare all parts received to the packing list. Notify UltraPlay immediately of any missing parts. We are not responsible for parts discovered missing over 10 days after receipt of the shipment.

  • Page 16: Safety During Installation

    Children should not be allowed to use the equipment during this period so that concrete has a chance to fully cure. Finally, if you should have any questions regarding the proper installation of this equipment, please contact UltraPlay at: UPlayToday Customer Service 1675 Locust Street, Red Bud, IL 62278 1-800-458-5872 Fax 1-618-282-8202 Email: customerservice@uplaytoday.com...
  • Page 17 GUIDELINES REGARDING THE INSTALLATION AND MAINTENANCE OF APPROPRIATE RESILIENT SURFACE MATERIALS REQUIRED FOR YOUR PLAY AREA. NEVER ALLOW USE OF PLAYGROUND EQUIPMENT WITHOUT PROPER SAFETY SURFACING AS FALLS ONTO A HARD SURFACE CAN CAUSE SERIOUS INJURY TO THE USER. Issued/Revised: 01/27/14 www.ultraplay.com 800.458.5872...

  • Page 18: Tools Required

    TOOLS REQUIRED Hammer Drill Tape Measure Loctite Utility Knife Level 1/4” Drill Bit Phillips Head Rubber Mallet 4 lb. Hammer Screw Driver Socket Wrench 8 mm 10 mm 13mm 13mm Torx Head Wrench 17mm 17mm Wrenches/Bits (included) Issued/Revised: 07/17/14 www.ultraplay.com 800.458.5872...

  • Page 19: Hardware Reference

    2-3/4" M10 Lock Nut (33-11-0008) 60mm (33-11-0400) 2-3/8" M10 T-Nut 13mm (33-11-0007) (33-11-0402) 1/2" 50mm (33-11-0001) 2" 45mm (33-11-0010) 1-3/4" 40mm (33-11-0013) 1-9/16" 35mm (33-11-0006) 1-3/8" 30mm (33-11-0005) 1-3/16" 25mm (33-11-0004) 1" 20mm (33-11-0003) 3/4" (33-11-0002) Issued/Revised: 01/27/14 www.ultraplay.com 800.458.5872...
  • Page 20 PLAY TODAY UPRIGHT PLACEMENT UPRIGHTS LIST DESCRIPTION PART NUMBER 7'-8" UPRIGHT 02-07-5025 7'-8" UPRIGHT (02-07-5025) 7'-8" UPRIGHT (02-07-5025) Issued/Revised: 01/27/14 www.ultraplay.com 800.458.5872...
  • Page 21 "minimum area required" contains an appropriate amount of resilient materal to cushion predicted that a user would land when accidental falls. falling from or exiting the equipment. Issued/Revised: 01/27/14 www.ultraplay.com 800.458.5872...

  • Page 22: Site Preparation

    It is the owner's responsibility to ensure the "minimum area required" contains an appropriate amount of resilient material to cushion accidental falls. SITE PREPARATION Clear area of any debris and level surface. Equipment is designed to be installed on a level surface. Issued/Revised: 01/27/14 www.ultraplay.com 800.458.5872...
  • Page 23 1. Using Upright Footers as template, mark hole position on concrete. Drill 3/8" Dia. x 2" deep holes into concrete to receive anchor. 2. Attach Upright Footers to concrete using Concrete Anchor, Flat Washer, and Lock Nut. See Detail 067. LOCK NUT FLAT WASHER UPRIGHT FOOTER CONCRETE ANCHOR Issued/Revised: 01/27/14 www.ultraplay.com 800.458.5872...
  • Page 24 It is the owner's responsibility to ensure the "minimum area required" contains an appropriate amount of resilient material to cushion accidental falls. SITE PREPARATION Clear area of any debris and level surface. Equipment is designed to be installed on a level surface. Issued/Revised: 01/27/14 www.ultraplay.com 800.458.5872...
  • Page 25 Install ground spikes angled inward as shown in illustration. See Detail 068. IMPORTANT: Refer to Post Placement/Hole Locations diagram to mark locations of Upright Footers. UPRIGHT GROUND SPIKE UPRIGHT FOOTER Issued/Revised: 01/27/14 www.ultraplay.com 800.458.5872...
  • Page 26 It is the owner's responsibility to ensure the "minimum area required" contains an appropriate amount of resilient material to cushion accidental falls. SITE PREPARATION Clear area of any debris and level surface. Equipment is designed to be installed on a level surface. Issued/Revised: 01/27/14 www.ultraplay.com 800.458.5872...
  • Page 27 2. Continue assembling unit before pouring concrete. Refer to specific component installation instructions. IMPORTANT: POURING CONCRETE IS THE VERY LAST STEP! 3/8" x 1 1/4" P.B.H.C.S. w/PATCH (33-05-0019) UPRIGHT 3/8" FLAT WASHER (33-02-0002) 3/8" HEX NUT (33-01-0002) INGROUND FOOTER Issued/Revised: 01/27/14 www.ultraplay.com 800.458.5872...
  • Page 28 Promptly cut-off flush, file smooth, and treat to prevent corrosion. Note: Peen Tee-Nuts and Flatwashers to match radius of pipe after assembly is complete. Note: Loctite (supplied by others) should be used on any non-patch hardware. Issued/Revised: 01/27/14 www.ultraplay.com 800.458.5872...

  • Page 29: Finished Assembly

    BASS DRUM (02-07-5023) RAINWHEEL (02-07-5022) FINISHED ASSEMBLY MODEL # UPLAY-004-N 4FT RIGHT CURVED SLIDE MODEL # UPLAY-004-P (02-07-5005) PANEL CLAMP (02-07-0040) 7'-8" UPRIGHT (02-07-5025) TUBE CLAMP (02-07-0039) TRIANGLE DECK 4FT ADA STEP (02-07-5037) (02-07-5000) BONGO DRUMS (02-07-5024) Issued/Revised: 01/27/14 www.ultraplay.com 800.458.5872...
  • Page 30 182 1/2 in [463.52 cm] TOP VIEW FOOTING TABLE Diagonal Hole No. Hor. Dim. Ver. Dim. 165 in 84 3/4" 68 1/2" 108 3/4" [418.83 cm] 85 1/2" 25 1/4" 89 1/4" 46 1/2" 52 1/4" 24" 108 1/4" 103" 34"...

  • Page 31: Maintenance Procedure

    Check for welded areas and verify integrity. Check periodically resilient surfacing for appropriate depth and remove extraneous materials that could cause injury, infection, or disease. Maintain detailed installation, inspection, maintenance, and repair records for each public-use playground equipment. Issued/Revised: 05/24/13 www.ultraplay.com 800.458.5872...
  • Page 32 PLAY TODAY 7'-8" UPRIGHT w/CAP, CLAMP, & FOOTER 02-07-5025 3-1/2" UPRIGHT, 7'-8" LG. (02-07-0144) UPRIGHT FOOTER (02-07-0042) FINISHED ASSEMBLY = INSTALLATION DETAIL Issued/Revised: 05/23/13 www.ultraplay.com 800.458.5872...
  • Page 33 LARGE HOLE M10 BARREL NUT (33-11-0401) M10 x 80mm (3 1/8") TOP (2) HOLES USED BHCS BOLT FOR 12" ENGINEERED (33-11-0011) WOOD FIBER BOTTOM (2) HOLES USED FOR 2" POURED IN PLACE OR RUBBER TILES FOOTER Issued/Revised: 05/23/13 www.ultraplay.com 800.458.5872...
  • Page 34 Check for welded areas and verify integrity. Check periodically resilient surfacing for appropriate depth and remove extraneous materials that could cause injury, infection, or disease. Maintain detailed installation, inspection, maintenance, and repair records for each public-use playground equipment. Issued/Revised: 06/12/13 www.ultraplay.com 800.458.5872...
  • Page 35 PLAY TODAY TRIANGLE DECK 02-07-5037 TRIANGLE DECK (02-07-0183) UNDERNEATH = INSTALLATION DETAIL COMPONENTS SHOWN IN FINISHED ASSEMBLY HIDDEN LINES ARE SOLD SEPARATELY Issued/Revised: 06/12/13 www.ultraplay.com 800.458.5872...
  • Page 36 INCH TRIANGLE DECK 02-07-5037 M10 FLATWASHER M10 LOCK NUT (33-11-0200) (33-11-0400) DECK FLANGE M10 x 30mm (1 3/16") BHCS BOLT (33-11-0004) Issued/Revised: 06/12/13 www.ultraplay.com 800.458.5872...
  • Page 37 Maintain detailed installation, inspection, maintenance, and repair records for each public-use playground equipment. UPRIGHT TUBE CLAMP (02-07-0039) = INSTALLATION DETAIL COMPONENTS SHOWN IN FINISHED ASSEMBLY HIDDEN LINES ARE SOLD SEPARATELY Issued/Revised: 06/03/13 www.ultraplay.com 800.458.5872...
  • Page 38 M8 x 25mm (1") BHCS BOLT (33-11-0103) UPRIGHT M8 LOCK NUT (33-11-0500) M8 LOCK NUT (33-11-0500) CLAMP RIVET M8 x 25mm (1") BHCS (33-11-0700) BOLT (33-11-0103) DRILL THROUGH PRE-DRILLED HOLE IN CLAMP IN UPRIGHT TO INSTALL CLAMP RIVET. (33-11-0700) Issued/Revised: 06/03/13 www.ultraplay.com 800.458.5872...
  • Page 39 Check for welded areas and verify integrity. Check periodically resilient surfacing for appropriate depth and remove extraneous materials that could cause injury, infection, or disease. Maintain detailed installation, inspection, maintenance, and repair records for each public-use playground equipment. Issued/Revised: 01/17/14 www.ultraplay.com 800.458.5872...
  • Page 40 PLAY TODAY CASTLE BRIDGE 02-07-5063 ARCHED HANDRAIL (02-07-0168) ARCHED HANDRAIL (02-07-0168) ARCHED DECK (02-07-0167) COMPONENTS SHOWN IN HIDDEN LINES ARE SOLD SEPARATELY = INSTALLATION DETAIL FINISHED ASSEMBLY Issued/Revised: 01/17/14 www.ultraplay.com 800.458.5872...
  • Page 41 M10 LOCK NUT (33-11-0400) M10 LOCK NUT (33-11-0400) M10 FLATWASHER DECK (33-11-0200) M10 FLATWASHER M10 FLATWASHER DECK (33-11-0200) (33-11-0200) M10 FLATWASHER (33-11-0200) BRACKET M10 x 25mm (1") STAIRS M10 x 25mm (1") BHCS BOLT BHCS BOLT (33-11-0003) (33-11-0003) Issued/Revised: 01/17/14 www.ultraplay.com 800.458.5872...
  • Page 42 5. Clean all slots in stairs, decks, and steps with utility knife if necessary. 6. Attach ADA Transfer Step to Deck using M10 x 25mm B.H.C.S. Bolt, M10 Flat Washer, and M10 Lock Nut. See Detail 031. Issued/Revised: 04/22/13 www.ultraplay.com 800.458.5872...
  • Page 43 Check for welded areas and verify integrity. Check periodically resilient surfacing for appropriate depth and remove extraneous materials that could cause injury, infection, or disease. Maintain detailed installation, inspection, maintenance, and repair records for each public-use playground equipment. Issued/Revised: 04/22/13 www.ultraplay.com 800.458.5872...
  • Page 44 (02-07-0010) ADA HANDHOLD ADA DECK (02-07-0011) (02-07-0004) ADA STEP ADA TRANSFER (02-07-0006) STAIR (02-07-0005) UNDERNEATH UNDERNEATH UNDERNEATH UNDERNEATH ADA DECK SUPPORT POST COMPONENTS SHOWN IN (02-07-0047) HIDDEN LINES ARE SOLD SEPARATELY FINISHED ASSEMBLY = INSTALLATION DETAIL Issued/Revised: 04/22/13 www.ultraplay.com 800.458.5872...
  • Page 45 (33-11-0200) M8 LOCK NUT (33-11-0500) STAIRS M10 x 25mm (1") CLAMP RIVET M8 x 25mm (1") BHCS BHCS BOLT (33-11-0700) BOLT (33-11-0103) (33-11-0003) DRILL THROUGH PRE-DRILLED HOLE IN CLAMP INTO UPRIGHT TO INSTALL CLAMP RIVET. (33-11-0700) 04/22/13 Issued/Revised: www.ultraplay.com 800.458.5872...
  • Page 46 BHCS BOLT (33-11-0005) STEP M10 LOCK NUT M10 LOCK NUT (33-11-0400) (33-11-0400) M10 FLATWASHER (33-11-0200) M10 FLATWASHER (33-11-0200) HANDHOLD M10 x 50mm (2") BHCS BOLT M10 x 60mm (2 3/8") (33-11-0010) BHCS BOLT (33-11-0007) DECK EXTENSION POST 04/22/13 Issued/Revised: www.ultraplay.com 800.458.5872...
  • Page 47 INCH ADA STEPS 02-07-5000 EXTENSION POST M10 LOCK NUT (33-11-0400) M10 x 35mm (1 3/8") BHCS BOLT (33-11-0005) LARGER HOLE FOOTER PLATE 04/22/13 Issued/Revised: www.ultraplay.com 800.458.5872...
  • Page 48 8. Insert Extension Tube into socket of the Beanstalk Climber and secure with M10 x 35mm B.H.C.S. Bolt and M10 Lock Nut. See Detail 077. 9. Plumb and level entire assembly before tightening all fasteners. Note: Apply Loctite to threads of Bolt to prevent from loosening. Issued/Revised: 09/05/13 www.ultraplay.com 800.458.5872...
  • Page 49 ENTRY ARCHWAY w/SOCKET (02-07-0161) 4FT BEANSTALK CLIMBER (02-07-0164) COMPONENTS SHOWN IN HIDDEN LINES ARE SOLD SEPARATELY FOOTER PLATE (02-07-0046) UNDERNEATH EXTENSION TUBE (02-07-0203) UNDERNEATH UNDERNEATH FINISHED ASSEMBLY = INSTALLATION DETAIL Issued/Revised: 09/05/13 www.ultraplay.com 800.458.5872...
  • Page 50 EXTENSION TUBE M10 LOCK NUT (33-11-0400) M10 x 35mm (1 3/8") M10 LOCK NUT BHCS BOLT (33-11-0400) (33-11-0005) DECK LARGER HOLE FOOTER PLATE M10 FLATWASHER (33-11-0200) M10 FLATWASHER (33-11-0200) BRACKET M10 x 25mm (1") BHCS BOLT (33-11-0003) Issued/Revised: 09/05/13 www.ultraplay.com 800.458.5872...
  • Page 51 4FT BEANSTALK CLIMBER 02-07-5057 ENTRY ARCHWAY w/SOCKET M10 x 20mm (3/4") BHCS BOLT (33-11-0002) PIPE w/INSERT M10 FLATWASHER (33-11-0200) M12 LOCKWASHER (33-11-0203) CLIMBER M10 x 35mm (1 3/8") BHCS BOLT (33-11-0005) M10 LOCK NUT (33-11-0400) EXTENSION Issued/Revised: 09/05/13 www.ultraplay.com 800.458.5872...
  • Page 52 Maintain detailed installation, inspection, maintenance, and repair records for each public-use playground equipment. UPRIGHT PANEL CLAMP - SINGLE (02-07-0040) = INSTALLATION DETAIL COMPONENTS SHOWN IN FINISHED ASSEMBLY HIDDEN LINES ARE SOLD SEPARATELY Issued/Revised: 06/04/13 www.ultraplay.com 800.458.5872...
  • Page 53 M8 x 25mm (1") BHCS BOLT (33-11-0103) UPRIGHT M8 LOCK NUT (33-11-0500) M8 LOCK NUT (33-11-0500) CLAMP RIVET M8 x 25mm (1") BHCS (33-11-0700) BOLT (33-11-0103) DRILL THROUGH PRE-DRILLED HOLE IN CLAMP INTO UPRIGHT TO INSTALL CLAMP RIVET. (33-11-0700) Issued/Revised: 06/04/13 www.ultraplay.com 800.458.5872...
  • Page 54 4. Attach Center Support Post to bottom side of Slide using M10 x 20mm B.H.C.S, M12 Lock Washer, and M10 Flat Washer. See Detail 062. 5. Attach Footer to Center Support Post using M10 x 35mm B.H.C.S. and M10 Lock Nut. See Detail 028. Issued/Revised: 05/22/13 www.ultraplay.com 800.458.5872...
  • Page 55 SLIDE HOOD (02-07-0025) BEHIND CURVED SLIDE (02-07-0027) CENTER SUPPORT POST (02-07-0062) UNDERNEATH FOOTER (02-07-0043) UNDERNEATH UNDERNEATH UNDERNEATH UNDERNEATH FOOTER PLATE MOUNTING BRACKET (02-07-0046) (02-07-0045) UNDERNEATH UNDERNEATH UNDERNEATH UNDERNEATH EXTENSION TUBE (02-07-0044) UNDERNEATH UNDERNEATH Issued/Revised: 05/22/13 www.ultraplay.com 800.458.5872...
  • Page 56 M10 LOCK NUT (33-11-0400) M10 x 35mm (1 3/8") BHCS BOLT EXTENSION TUBE (33-11-0005) M10 LOCK NUT (33-11-0400) LARGER HOLE M10 x 35mm (1 3/8") BHCS BOLT (33-11-0005) CENTER SUPPORT POST LARGER HOLE FOOTER PLATE FOOTER Issued/Revised: 05/22/13 www.ultraplay.com 800.458.5872...
  • Page 57 SLIDE M8 LOCK NUT (33-11-0500) SLIDE HOOD M12 LOCKWASHER M8 FLATWASHER (33-11-0203) (33-11-0300) M8 FLATWASHER (33-11-0300) DECK M10 x 60mm (2 3/8") BHCS BOLT M8 x 40mm (1 9/16") (33-11-0007) BHCS BOLT M10 FLATWASHER (33-11-0106) (33-11-0200) Issued/Revised: 05/22/13 www.ultraplay.com 800.458.5872...
  • Page 58 4FT. CURVED SLIDE 02-07-5005 UPRIGHT SLIDE M8 BARREL NUT (33-11-0501) PANEL CENTER SUPPORT M10 FLATWASHER POST (33-11-0200) PANEL M8 x 20mm (3/4") CLAMP BHCS BOLT M12 LOCKWASHER (33-11-0102) (33-11-0203) M10 x 20mm (3/4") BHCS BOLT (33-11-0002) Issued/Revised: 05/22/13 www.ultraplay.com 800.458.5872...
  • Page 59 ENGINEERING REVISIONS −for− 02−07−5022 REMOVED HARDWARE AND UPDATED INSTRUCTIONS TO REFLECT ASSEMBLED RAINWHEEL...
  • Page 60 Check for welded areas and verify integrity. Check periodically resilient surfacing for appropriate depth and remove extraneous materials that could cause injury, infection, or disease. Maintain detailed installation, inspection, maintenance, and repair records for each public-use playground equipment. Issued/Revised: 10/06/15 www.ultraplay.com 800.458.5872...

  • Page 61: Installation Detail

    PLAY TODAY RAIN WHEEL w/TUBE CLAMP 02-07-5022 UPRIGHT RAIN WHEEL ASS'Y (02-07-0012) = INSTALLATION DETAIL FINISHED ASSEMBLY COMPONENTS SHOWN IN HIDDEN LINES ARE SOLD SEPARATELY Issued/Revised: 10/06/15 www.ultraplay.com 800.458.5872...
  • Page 62 REQUIRED. IF RAIN WHEEL BECOMES LOOSE RAIN WHEEL APPLY LOCTITE (SUPPLIED BY OTHERS) TO CLAMP BOLT AS NOTED. METAL BUSHING M8 FLATWASHER (02-07-0095) (33-11-0300) YELLOW PLASTIC CAP (02-07-0088) M8 LOCK NUT (33-11-0500) YELLOW PLASTIC CAP (02-07-0088) RAINWHEEL ASS'Y DIAGRAM Issued/Revised: 10/06/15 www.ultraplay.com 800.458.5872...

  • Page 63: Installation Instructions

    Check for welded areas and verify integrity. Check periodically resilient surfacing for appropriate depth and remove extraneous materials that could cause injury, infection, or disease. Maintain detailed installation, inspection, maintenance, and repair records for each public-use playground equipment. Issued/Revised: 05/07/13 www.ultraplay.com 800.458.5872...
  • Page 64 PLAY TODAY BASS DRUM w/TUBE CLAMP 02-07-5023 UPRIGHT BASS DRUM BRACKET (02-07-0091) UNDERNEATH TUBE CLAMP BASS DRUM (02-07-0039) (02-07-0013) = INSTALLATION DETAIL COMPONENTS SHOWN IN FINISHED ASSEMBLY HIDDEN LINES ARE SOLD SEPARATELY Issued/Revised: 05/07/13 www.ultraplay.com 800.458.5872...
  • Page 65 DRILL THROUGH PRE-DRILLED HOLE IN CLAMP IN UPRIGHT TO INSTALL CLAMP RIVET. (33-11-0700) M8 FLATWASHER BASS (33-11-0300) M8 x 20mm (3/4") DRUM BHCS BOLT BRACKET (33-11-0102) M8 LOCK NUT (33-11-0500) M8 FLATWASHER (33-11-0300) BASS DRUM (02-07-0013) Issued/Revised: 05/07/13 www.ultraplay.com 800.458.5872...
  • Page 66 Check for welded areas and verify integrity. Check periodically resilient surfacing for appropriate depth and remove extraneous materials that could cause injury, infection, or disease. Maintain detailed installation, inspection, maintenance, and repair records for each public-use playground equipment. Issued/Revised: 05/08/13 www.ultraplay.com 800.458.5872...
  • Page 67 PLAY TODAY BONGO DRUMS 02-07-5024 MOUNTING BAR (02-07-0093) BONGO DRUMS TUBE CLAMP (02-07-0056) BONGO DRUMS (02-07-0014) COMPONENTS SHOWN IN FINISHED ASSEMBLY = INSTALLATION DETAIL HIDDEN LINES ARE SOLD SEPARATELY Issued/Revised: 05/08/13 www.ultraplay.com 800.458.5872...
  • Page 68 M8 LOCK NUT (33-11-0700) (33-11-0500) M8 FLATWASHER (33-11-0300) M8 x 25mm (1") BHCS M10 LOCKWASHER BOLT (33-11-0103) (33-11-0201) M8 x 25mm (1") BHCS BOLT (33-11-0103) BONGO DRUM TUBE CLAMP M8 BARREL NUT (33-11-0501) BONGO DRUM BRACKET Issued/Revised: 05/08/13 www.ultraplay.com 800.458.5872...
