ultraPLAY DC-SPRING DC-017 Owner's Manual & Assembly Instructions

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

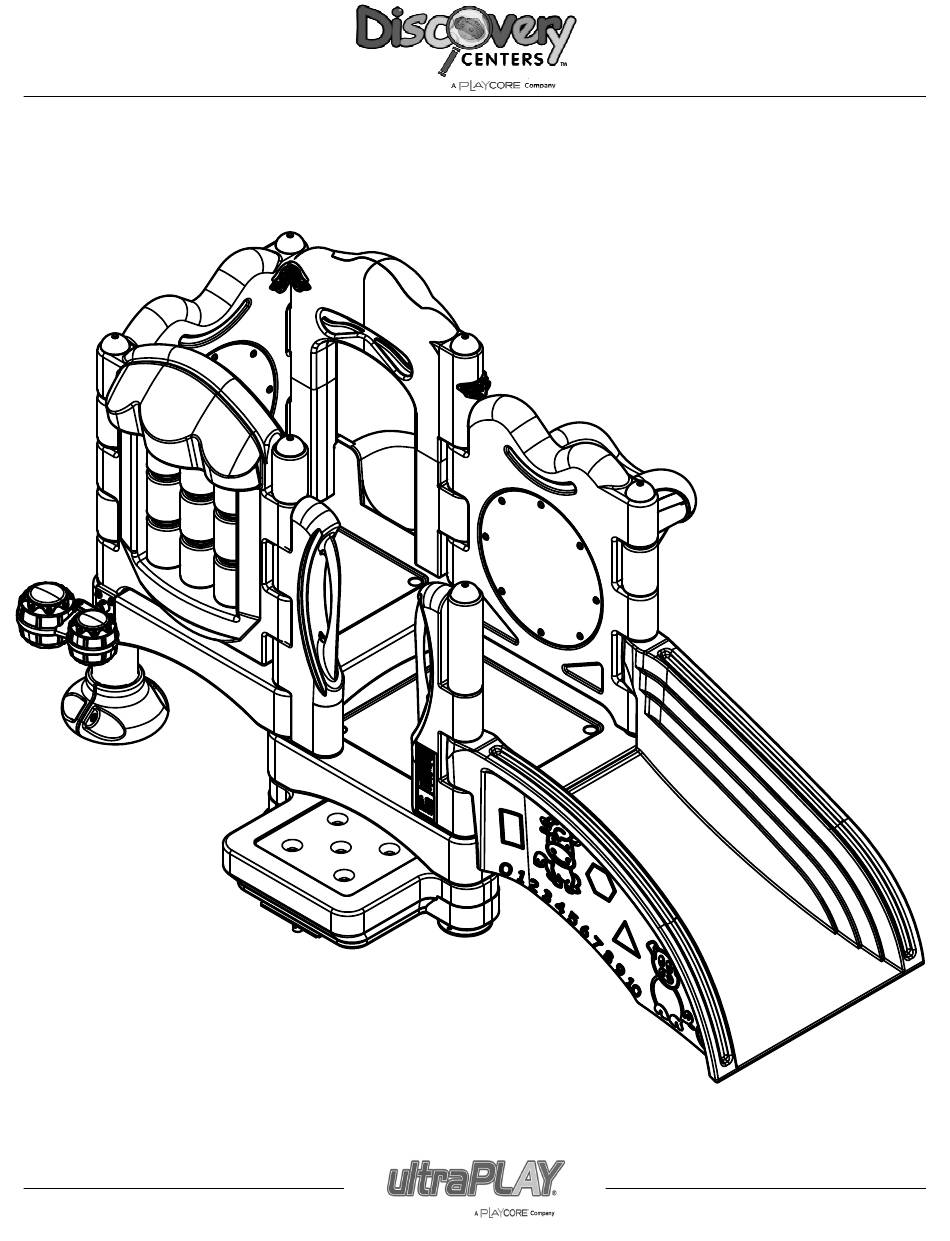

DC-SPRING
MODEL # DC-017
Issued/Revised:
3/31/2020
www.ultraplay.com
800.458.5872
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DC-SPRING DC-017 and is the answer not in the manual?

Questions and answers

Related Manuals for ultraPLAY DC-SPRING DC-017

Summary of Contents for ultraPLAY DC-SPRING DC-017

  • Page 1 DC-SPRING MODEL # DC-017 Issued/Revised: 3/31/2020 www.ultraplay.com 800.458.5872...
  • Page 3 To register you equipment and activate your warranty, please go to www.ultraplay.com within 30 days of delivery. This will allow UltraPlay to have a record of your purchase in case of warranty claims. For more information on Discovery Centers and UltraPlay products, please do not hesitate to give us a call or visit ultraplay.com.
  • Page 4 Maintaining your playground equipment and its surrounding area is essential to minimizing the risk of injury to users as well as maximizing its useful lifespan. UltraPlay STRONGLY recommends that you follow these Safety Guidelines in conjunction with conducting periodic maintenance inspections using the accompanying Playground Maintenance Checklist.

  • Page 5: Overhead Obstructions

    -Check and re-tighten all fasteners after the first few days of use and again after three weeks of use. Thereafter, exercise normal maintenance procedures. Use of a thread-locking compound on the threads of bolts can prevent persistent loosening. Issued/Revised: 3/31/2020 www.ultraplay.com 800.458.5872...

  • Page 6: Routine Maintenance

    -Check for surfacing material that is worn or scattered and restore. -Debris, broken glass, trash, or other foreign objects within or on the play area/equipment should be removed. -Check for poor drainage areas and repair. Continued on next page Issued/Revised: 3/31/2020 www.ultraplay.com 800.458.5872...
  • Page 7 -Check for accessible sharp edges or points. Check for protruding bars, bolts, nuts, etc. Eliminate these conditions. -Check for exposed ends of tubing that should be covered with plugs or caps. -Check for loose bolts, nuts, etc. and tighten. Issued/Revised: 3/31/2020 www.ultraplay.com 800.458.5872...

  • Page 11: Warranty

    1-year from the date of shipment to the original purchaser. In the event of a claim under this warranty, UltraPlay will replace the component at no cost within the first 12 months from date of shipment to the original customer. Equipment not specifically addressed in the following paragraphs is also subject to this limited 1 year warranty against defects in materials and/or workmanship.

  • Page 12: Warranty Exclusions

    Or Contact a Customer Service Representative at: 1-800-458-5872 Within 60 days of notice of claim under warranty, UltraPlay will make arrangements to replace the damaged product. UltraPlay will cover freight costs within the continental United States. UltraPlay is not responsible for freight costs associated with products located outside the continental United States.
  • Page 13 INSTALLATION GUIDELINES: 1. Compare all parts received to the packing list. Notify UltraPlay immediately of any missing parts. We are not responsible for parts discovered missing over 10 days after receipt of the shipment. Continue on next page...
  • Page 14 Also locate any freestanding play equipment in the same way, providing the necessary clearance between the equipment as well as any fences, trees, etc. Ensure at this time you have enough total space for the equipment to be installed. Issued/Revised: 3/31/2020 www.ultraplay.com 800.458.5872...

  • Page 15: Tools Required

    TOOLS REQUIRED Issued/Revised: 3/31/2020 www.ultraplay.com 800.458.5872...

  • Page 16: Hardware Reference

    M8 Lock Washer M8 Barrel Nut M8 Flat Washer M8 Lock Nut (33-11-0301) (33-11-0501) (33-11-0300) (33-11-0500) M10 Lock Nut M10 T-Nut M10 Flat Washer M10 Lock Washer (33-11-0402) (33-11-0400) (33-11-0200) (33-11-0201) M5 x 76mm (3") Self-tapping Screw (33-11-0600) Issued/Revised: 3/31/2020 www.ultraplay.com 800.458.5872...
  • Page 17 "minimum area required" predicted that a user would land when contains an appropriate amount of resilient material to cushion accidental falls. falling from or exiting the equipment. Issued/Revised: 3/31/2020 www.ultraplay.com 800.458.5872...
  • Page 18 "minimum area required" predicted that a user would land when contains an appropriate amount of resilient material to cushion accidental falls. falling from or exiting the equipment. Issued/Revised: 3/31/2020 www.ultraplay.com 800.458.5872...
  • Page 19 NOTE: All remaining dimensions are based off of Placement for the Deck Post placement. 12" Diameter x 12" Deep Holes for In-ground installation 3. Measure from the center of a Deck Post using the dimensions provided for each remaining hole. Issued/Revised: 3/31/2020 www.ultraplay.com 800.458.5872...
  • Page 20 NOTE: All remaining dimensions are based off of Placement for the Deck Post placement. 12" Diameter x 12" Deep Holes for In-ground installation 3. Measure from the center of a Deck Post using the dimensions provided for each remaining hole. Issued/Revised: 3/31/2020 www.ultraplay.com 800.458.5872...
  • Page 21 ELEVATION VIEW 5'-4 3/4" [164.64 cm] 9'-11 1/2" [303.65 cm] Issued/Revised: 3/31/2020 www.ultraplay.com 800.458.5872...
  • Page 22 It is the owner's responsibility to ensure the "minimum area required" contains an appropriate amount of resilient material to cushion accidental falls. SITE PREPARATION Clear area of any debris and level surface. Equipment is designed to be installed on a level surface Issued/Revised: 3/31/2020 www.ultraplay.com 800.458.5872...
  • Page 23 SLIDE MOUNTING BRACKET M10 LOCK NUT (33-11-0400) M10 LOCK NUT (33-11-0400) M10 x 35mm (1 3/8") BHCS BOLT M10 x 35mm (1 3/8") (33-11-0005) BHCS BOLT PLATFORM MOUNTING (33-11-0005) BRACKET FOOTER SLIDE SURFACE PLATE MOUNT BRACKET Issued/Revised: 3/31/2020 www.ultraplay.com 800.458.5872...
  • Page 24 It is the owner's responsibility to ensure the "minimum area required" contains an appropriate amount of resilient material to cushion accidental falls. SITE PREPARATION Clear area of any debris an level surface. Equipment is designed to be installed on a level surface Issued/Revised: 3/31/2020 www.ultraplay.com 800.458.5872...
  • Page 25 PLATFORM MOUNTING BRACKET SLIDE MOUNTING BRACKET M10 x 35mm (1 3/8") BHCS BOLT M10 LOCK NUT (33-11-0005) (33-11-0400) M10 x 35mm (1 3/8") BHCS BOLT M10 LOCK NUT (33-11-0005) (33-11-0400) PLATFORM ONGROUND BRACKET SLIDE ONGROUND BRACKET Issued/Revised: 3/31/2020 www.ultraplay.com 800.458.5872...
  • Page 26 It is the owner's responsibility to ensure the "minimum area required" contains an appropriate amount of resilient material to cushion accidental falls. SITE PREPARATION Clear area of any debris an level surface. Equipment is designed to be installed on a level surface Issued/Revised: 3/31/2020 www.ultraplay.com 800.458.5872...
  • Page 27 M10 x 25mm (1") BHCS BOLT (33-11-0003) UPRIGHT POST M10 LOCK NUT (33-11-0400) FOOTBUCK FOOTBUCK (02-08-0162) M10 LOCK NUT (33-11-0400) SLIDE MOUNTING BRACKET M10 x 35mm (1 3/8") BHCS BOLT (33-11-0005) M10 LOCK NUT (33-11-0400) FOOTBUCK (02-08-0162) Issued/Revised: 3/31/2020 www.ultraplay.com 800.458.5872...
  • Page 28 M8 BARREL NUT 33-11-0501 M10 x 25mm (1") BHCS BOLT 33-11-0003 M10 x 50mm (2") BHCS BOLT 33-11-0010 M10 x 60mm (2 3/8") BHCS BOLT 33-11-0007 33-11-0201 M10 LOCKWASHER M10 FLATWASHER 33-11-0200 M12 LOCKWASHER 33-11-0203 CLAMP RIVET 33-11-0700 Issued/Revised: 3/31/2020 www.ultraplay.com 800.458.5872...

  • Page 29: Finished Assembly

    BONGOS (02-08-0039) (02-08-0025) PLAY RAMP (02-08-0059) FOOTER COVER (02-08-0009) CLIMBER HANDHOLD-EVEN (02-08-0003) CLIMBER HANDHOLD-ODD (02-08-0004) PLATFORM (02-08-0022) PLATFORM MOUNTING BRACKET (02-08-0120) DECK M (02-08-0196) UNDERNEATH SLIDE MOUNTING BRACKET UNDERNEATH (02-08-0150) = INSTALLATION DETAIL FINISHED ASSEMBLY UNDERNEATH Issued/Revised: 3/31/2020 www.ultraplay.com 800.458.5872...
  • Page 30 FOOTER COVER WINDOW PANEL (02-08-0009) (02-08-0147) 24" WAVY SLIDE (02-08-0138) GEAR PANEL (02-08-0046) SLIDE HOOD w/5 INSERTS (02-08-0151) SEEDLING DECK B w/ 6 INSERTS (02-08-0146) SLIDE MOUNTING BRACKET UNDERNEATH (02-08-0150) UNDERNEATH = INSTALLATION DETAIL FINISHED ASSEMBLY Issued/Revised: 3/31/2020 www.ultraplay.com 800.458.5872...

  • Page 31: Platform Mounting Bracket

    IMPORTANT: Depending on mounting options: surface mount, in-ground, or on-ground, footing plates must be installed at this time. Refer to pages 20-25. LOWER POST, 22 11/16" LG. (02-08-0152) SLIDE MOUNTING BRACKET (02-08-0150) SLIDE MOUNTING BRACKET (02-08-0150) PLATFORM MOUNTING BRACKET (02-08-0120) Issued/Revised: 3/31/2020 www.ultraplay.com 800.458.5872...
  • Page 32 BHCS BOLT (33-11-0003) LOWER POST, 22 11/16" LG. (02-08-0152) LOWER POST COVER, 17 11/16" LG. (02-08-0028) LOWER POST COVER, 9 13/16" LG. (02-08-0050) PLATFORM (02-08-0022) LOWER POST, 22 11/16" LG. (02-08-0152) PLATFORM MOUNTING BRACKET (02-08-0120) UNDERNEATH Issued/Revised: 3/31/2020 www.ultraplay.com 800.458.5872...
  • Page 33 STEP 3 1. Slide Deck M onto Lower Posts. IMPORTANT: Orientation of drilled holes in deck is critical. IMPORTANT: ORIENTATION OF DRILLED HOLES IN DECK IS CRITICAL DECK M (02-08-0196) LOWER POST, 22 11/16" LG. (02-08-0152) Issued/Revised: 3/31/2020 www.ultraplay.com 800.458.5872...
  • Page 34 DC-SPRING STEP 4 1. Slide the Handhold Bracket over Lower Posts. Align the pipe on the Handhold Bracket with the hole in the Deck. HANDHOLD BRACKET (02-08-0140) DECK M (02-08-0196) LOWER POST, 22 11/16" LG. (02-08-0152) Issued/Revised: 3/31/2020 www.ultraplay.com 800.458.5872...
  • Page 35 1. Slide Deck B onto Lower Posts. IMPORTANT: Orientation of squares in deck is critical. IMPORTANT: SEEDLING DECK B ORIENTATION OF SQUARES w/ 6 INSERTS IN DECK IS CRITICAL (02-08-0146) LOWER POST, 22 11/16" LG. (02-08-0152) Issued/Revised: 3/31/2020 www.ultraplay.com 800.458.5872...
  • Page 36 M10 x 25mm (1") UPPER POST 29 1/8" (33-11-0203) BHCS BOLT (02-08-0189) (33-11-0003) UPPER POST COVER, 7 3/8" LG. (02-08-0033) PLAY RAMP (02-08-0059) UPPER POST COVER, 14 1/2" LG. (02-08-0039) CLIMBER HANDHOLD-ODD (02-08-0004) MOUNTING BRACKET (02-08-0150) UNDERNEATH UNDERNEATH Issued/Revised: 3/31/2020 www.ultraplay.com 800.458.5872...
  • Page 37 Handholds correctly. IMPORTANT: Warning Label must be positioned outwards. SHAPES PANEL (02-08-0014) LOWER POST, 22 11/16" LG. (02-08-0152) CLIMBER HANDHOLD-EVEN (02-08-0003) HANDHOLD BRACKET (02-08-0140) WARNING LABEL IMPORTANT: Warning label must be positioned outwards. Issued/Revised: 3/31/2020 www.ultraplay.com 800.458.5872...
  • Page 38 M8 FLATWASHER (33-11-0300) MOUNTING BAR (02-08-0126) M8 LOCK NUT (33-11-0500) BONGO SUPPORT BRACKET M8 FLATWASHER (02-08-0103) (33-11-0300) M8 FLATWASHER M8 FLATWASHER (33-11-0300) (33-11-0300) M8 LOCK NUT M10 LOCKWASHER (33-11-0500) (33-11-0201) M8 x 25mm (1") BHCS BOLT (33-11-0103) Issued/Revised: 3/31/2020 www.ultraplay.com 800.458.5872...
  • Page 39 IMPORTANT: BRACKET BRACKET DRILL Ø1/4" HOLE THROUGH MOUNTING BRACKET AND BONGO SUPPORT BRACKET TO INSTALL RIVET RIVET DECK (33-11-0700) M8 BARREL NUT BONGOS (33-11-0501) (02-08-0025) ASSEMBLED BONGOS BONGOS MOUNTING BRACKET (02-08-0104) BONGOS (02-08-0025) MOUNTING BAR (02-08-0126) Issued/Revised: 3/31/2020 www.ultraplay.com 800.458.5872...
  • Page 40 INCH DC-SPRING STEP 9 1. Slide Gear Panel and Slide Hood into place. SLIDE HOOD w/5 INSERTS (02-08-0151) GEAR PANEL (02-08-0046) Issued/Revised: 3/31/2020 www.ultraplay.com 800.458.5872...
  • Page 41 1. Slide Upper Posts through panels and attach to Lower Posts. 2. Tighten Upper Post, 36 5/8" LG. to Lower Posts. UPPER POST, 36 5/8" LG. (02-08-0158) GEAR PANEL SLIDE HOOD w/5 (02-08-0046) INSERTS (02-08-0151) SHAPES PANEL WINDOW PANEL (02-08-0014) (02-08-0147) CLIMBER HANDHOLD-EVEN (02-08-0003) Issued/Revised: 3/31/2020 www.ultraplay.com 800.458.5872...
  • Page 42 2. Attach Slide to Slide Hood using M8 x 50mm B.H.C.S, M10 Lock Washer, and M8 Flat Washer. See Detail 019. SLIDE SLIDE MOUNTING BRACKET SLIDE HOOD M10 FLATWASHER (33-11-0200) M12 LOCKWASHER (33-11-0203) M10 x 25mm (1") BHCS BOLT (33-11-0003) SLIDE M8 FLATWASHER (33-11-0300) M10 LOCKWASHER (33-11-0201) M8 x 50mm (2") BHCS BOLT (33-11-0114) Issued/Revised: 3/31/2020 www.ultraplay.com 800.458.5872...
  • Page 43 M10 x 60mm (2 3/8") BHCS BOLT (33-11-0007) M12 LOCKWASHER (33-11-0203) M10 FLATWASHER (33-11-0200) SEEDLING DECK B w/ 6 INSERTS (02-08-0146) SLIDE HOOD w/5 INSERTS (02-08-0151) 24" WAVY SLIDE UNDERNEATH (02-08-0138) SLIDE MOUNTING BRACKET UNDERNEATH (02-08-0150) UNDERNEATH Issued/Revised: 3/31/2020 www.ultraplay.com 800.458.5872...
  • Page 44 CONNECTOR SLIDE HOOD w/5 INSERTS (02-08-0151) DETAIL A SCALE 1 / 9 M10 x 25mm (1") BHCS BOLT UPPER POST (33-11-0003) COVER, 7 3/8" LG. (02-08-0033) 90 DEGREE CONNECTOR (02-08-0100) DETAIL B SCALE 1 / 6 Issued/Revised: 3/31/2020 www.ultraplay.com 800.458.5872...

  • Page 45: Upright Post

    INCH DC-SPRING STEP 13 1. Attach Post Caps to Upright Posts using M10 x 50mm B.H.C.S. See Detail 007. M10 x 50mm (2") BHCS BOLT (33-11-0010) POST CAP (02-08-0027) POST CAP (02-08-0027) UPRIGHT POST PANEL Issued/Revised: 3/31/2020 www.ultraplay.com 800.458.5872...
  • Page 46 2. Refer back to your Footing Detail options on pages 20 to 25 to finish assembly. BHCS BOLT (33-11-0106) M8 FLATWASHER (33-11-0300) FOOTER COVER (02-08-0009) M10 LOCKWASHER (33-11-0201) LOWER POST COVER M8 BARREL NUT (33-11-0501) FOOTER COVER (02-08-0009) Issued/Revised: 3/31/2020 www.ultraplay.com 800.458.5872...
