For honda crf 1100 l africa twin adventure sports (4 pages)

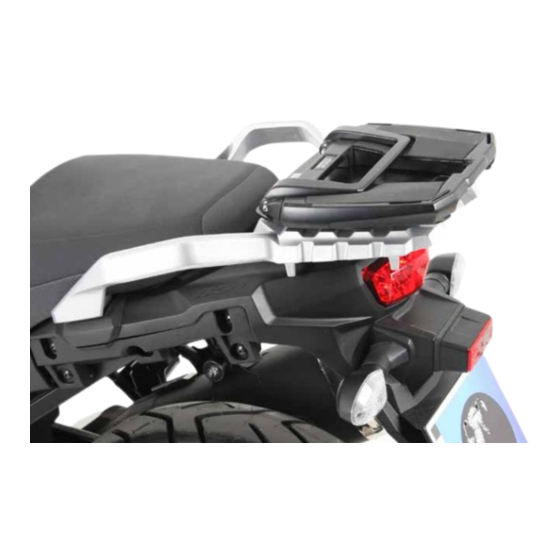

Summary of Contents for hepco & becker Easyrack
Page 1
HINWEIS Combination with Junior/Junior Flash side cases and Junior Topcase 55 is not possible! NOTICE Easyrack Alurack Easyrack V-Strom 1000 Empfehlung: Stützstrebe (optional erhältlich) Art.-Nr. 42103544/42103534/42103530 00 01 Verbessert die Stabilität und Traglast der Original- Gepäckbrücke Recommendation: Support strut (optional available) No.
Page 2
1x 700006882 bow for Alurack 1x 700006883 Abdeckplatte für Rack 1x 700006883 plastic cover for rack Bei Bestellung eines Easyracks zusätzlich: When ordering a Easyrack: 1x 700008650 Easyrack 1x 700008650 Easyrack 1x 700008647 Abdeckblende links 1x 700008647 plastic cover left...
Page 3
Vorbereitung des Aluracks: Den beiliegenden TC-Bügel mit den Zylinder- schrauben M6x12 hinten unter dem Alurack verschrauben. Der TC-Bügel ist nur bei Anbringung eines Hepco & Becker Topcases erforderlich. Preparing of the Alurack: Fix the bow to the rack with allen screws M6x12.
Page 4
Zylinderschrauben M6x16 sowie Viereckscheiben 20 x 20 x ø6,4 und Tensilock Mutter M6. Anschließend die Kunststoffab- deckung(en) montieren. Fastening of the Easy-/Alurack: Align the Alurack / Easyrack on the adapter plate. Fix the rack FRONT with allen screws M6x16 and washers ø6,4...
This manual is also suitable for:
Alurack6623544 01 016613530 01 016623534 01 016553544 01 016503530 01 01...
