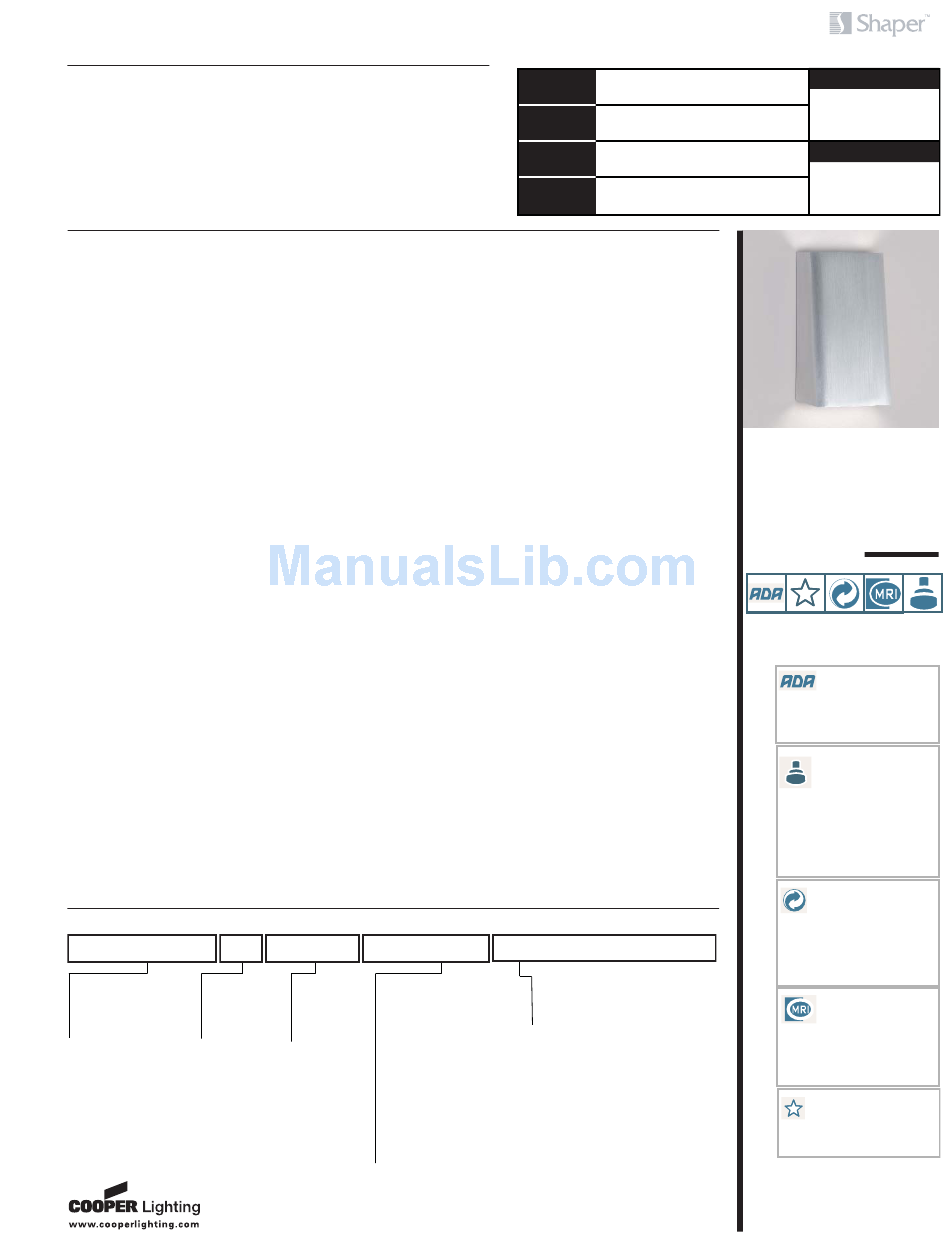

Cooper Lighting Shaper 683 & Specification Sheet

D E S C R I P T I O N
683 Direct/Indirect Economical Wall Sconce features an aluminum
cylinder. 683/4 is ADA compliant.
S P E C I F I C AT I O N F E AT U R E S
M a te ri a l
Painted, natural or plated solid
aluminum with a 1/8" matte
white acrylic panel. Open top
and bottom with a regressed
aluminum perf shield.
F i n i s h
Standard Interior Location:
Natural Aluminum (NA)
[Sustainable Design], Damp
Location: White (WH). Premium
Interior Location: Matte White
(MW) or Custom Color (CC).
Damp Location: White (WH),
Black (BK), Grey (GY), Silver
Metallic (SM), Gold Metallic
(GM), Bronze Metallic (BM), Dark
Platinum (DP), Graphite Metallic
(GRM) or Custom Color (CC).
O p t i c s
Refer to
www.shaperlighting.com for
complete photometrics.
O R D E R I N G I N F O R M AT I O N
Sample Number: 683-CFL/1/26-277V-BK
Series Lamp
683 Wall Sconce = CFL/1/13
CFL/1/26
683/4 ADA Compliant =
Wall Sconce
INC/1/60
Notes:
1
Available with CFL only.
2
Supplied by others.
B a l l a s t
Integral electronic HPF , multi-volt
120/277V (347V Canada),
thermally protected with end-of-
life circuitry to accommodate the
specified lamp wattage.
L a m p / S o cke t
One (1) 13W (G24q-1) 4-pin quad
CFL lamp, one (1) 26W (GX24q-3)
triple tube CFL lamp or one (1)
60W A-19 lamp. CFL socket
injection molded plastic. INC
socket fired ceramic rated for
660W-250V. Lamps furnished by
others.
I n s t a l l a t i o n
Supplied with a universal
circular strap for a standard 4"
J-box or plaster ring.
O p t i o n s
Damp Location (DL): All Painted
Finishes finishes only, Custom
Cut-Out - Contact factory,
Voltage Finish
BK Black =
120V
1 BM Bronze Metallic =
277V
1 CC Custom Color =
347V
DP Dark Platinum =
GM Gold Metallic =
GRM Graphite Metallic =
GY Grey =
MW Matte White =
NA Natural Aluminum =
SM Silver Metallic =
WH White =
Specifications and dimensions subject to change without notice.
Consult your representative for additional options and finishes.
Catalog #
Project
Comments
Prepared by
Remote Emergency Battery -
Supplied by others (REM).
Energy Star Rating - Contact
factory. MRI Applications (INC
only) - Contact Factory.
L a b e l s
U.L. and C.U.L approved for
indoor and damp location. See
options for damp location
finishing requirements. The 683/4
is ADA compliant.
M o d i f i c a t i o n s
Shaper's skilled craftspeople
with their depth of experience
offer the designer the flexibility
to modify standard wall
luminaires for project specific
solutions. Contact the factory
regarding scale options, unique
finishes, mounting, additional
materials/colors, or decorative
detailing.
Options
DL Damp Location =
2
REM Remote Emergency Battery =
shaperlighting.com
Type
Date
683 SERIES
683/4 SERIES
I n t e r i o r W a l l L u m i n a i r e
S t a r t e r C o l l e c t i o n
D i r e c t / I n d i r e c t
AMERICAN DISABILITIES
ACT (ADA)
Shaper offers a large selection of ADA
interior and exterior wall luminaires.
ADA requires all fixtures below 68" to
have a maximum projection of 4".
STARTER
COLLECTION
Shaper's exclusive Starter Collection fixtures
are featured throughout the Shaper product
line. The concept of offering highly styled,
affordable fixtures was introduced over
fourteen years ago and has become one of
our fastest growing lines. The design
premise, basic construction, clean lines
and unadorned shapes are highly desirable
in modern architectural environments.
SUSTAINABLE
DESIGN
Shaper has a long-standing history of
offering environmentally-friendly fixtures.
The copper and bronze alloys used in our
exterior luminaires feature up to 98% re-
cycled content, contribute less undesirable
air emissions compared to painted alumi-
num and are easy to recycle.
MAGNETIC
RESONANCE
IMAGING (MRI)
Lighting fixtures for MRI facilities are
specialized and unique, requiring non-
ferrous construction. Fluorescent fixtures
cannot be used due to the ferrous parts in
ballasts and lampholders. Modified incan-
descent fixtures meet the requirements.
ENERGY
STAR
Shaper now offers a wide variety
of fixtures that can be provided
with an Energy Star Rating.
Refer to the Icon Legend
Link on shaperlighting.com.
