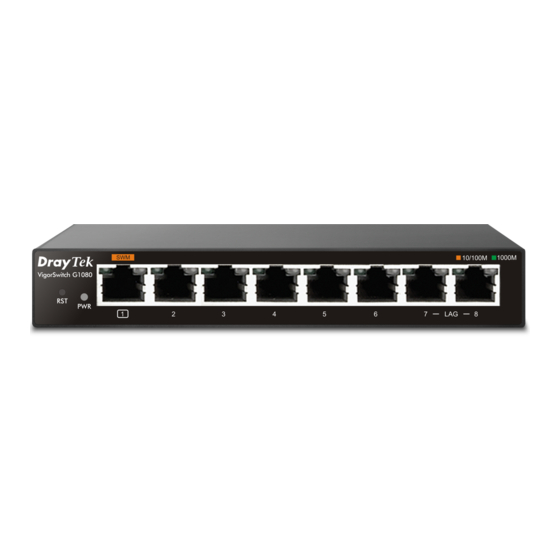

- Page 1 VigorSwitch G1080 Smart Lite Giga Switch Quick Start Guide Version: 1.3 Firmware Version: V1.05.0 (For future update, please visit DrayTek web site) Date: February 7, 2023...
-
Page 2: Regulatory Information
(2) This device may accept any interference received, including interference that may cause undesired operation Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. More update, please visit www.draytek.com. - Page 3 Input AC frequency 50/60Hz Output voltage DC 5.0V Output current 1.0A Output power 5.0W Average active efficiency 76.0% Efficiency at low load 10% 71.0% No-load power consumption 0.06W * External power supply (Power Adapter) information. For more update, please visit www.draytek.com.
-
Page 4: Eu Declaration Of Conformity
EU Declaration of Conformity We DrayTek Corp. , office at No.26, Fushing Rd, Hukou, Hsinchu Industrial Park, Hsinchu 303, Taiwan, declare under our sole responsibility that the product Product name: Smart Lite Giga Switch Model Number: VigorSwitch G1080 ... - Page 5 Vigor Device Quick Start Guide The type of the power adapter depends on the country that the device will be installed. UK-type Power Adapter EU-type Power Adapter USA/Taiwan-type Power Adapter AU/NZ-type Power Adapter If any of these items is found missing or damaged, please contact your local supplier for replacement.
- Page 6 RJ45 LNK/ACT Port 1 to Port 8 Status Explanation On (Green) The device is powered on and runs normally. The device is not ready or is failed. On (Green) The device is connected with 1000Mbps. On (Amber) The device is connected with 10/100Mbps. RJ 45 LNK/ACT The system is sending or receiving data through the for Ports 1 ~ 8...
- Page 7 Before starting to configure the device, you have to connect your devices correctly. A hierarchical network with minimum levels of device may reduce the timing delay between server and client station. Basically, with this approach, it will minimize the number of devices in any one path; will lower the possibility of network loop and will improve network efficiency.
- Page 8 Before using the device, perform the following steps: Before using the switch, perform the following steps: 1. Set up a physical path between the configured the switch and a PC by a qualified UTP Cat. 5e cable with RJ-45 connector. If a PC directly connects to the switch, you have to setup the same subnet mask for PC and the switch.
- Page 9 3. The home page of VigorSwitch G1080 will be shown as below: If the switch cannot work correctly after trying many efforts, please contact your dealer for further help right away. For any questions, please feel free to send e-mail to support@draytek.com.
