- Page 1 rotair Electric brushing robot user manual original manual translation...
-
Page 2: Technical Service
Dear customer: Thank you very much for placing your trust in a quality product from TEINNOVA. This product is manufactured using modern production processes and extensive quality assurance measures. We try to do everything possible to ensure that you are satisfied with this product and can work with it without any problems. - Page 3 index symbology 5-33 safety warnings 6-33 conditions of use 7-33 know your machine 8-33 control panel 9-33 remote control 10-33 accessories and related equipment 11-33 operating instructions 16-33 rotair Electric brushing robot 3-33...
- Page 4 index transport 28-33 maintenance and care 29-33 waste management 30-33 technical specifications 31-33 warranty conditions 32-33 CE declaration of conformity 33-33 rotair Electric brushing robot 4-33...
- Page 5 symbology All the existing graphic symbols in this manual as well as those indicated on the equipment itself are explained in this section, it is important to read with special attention the text related to this symbology since it is related to personal and equipment safety.
-
Page 6: Safety Warnings
To avoid electric shock, never expose the equipment to rain. Store the equipment indoors in a cool, dry place. Do not open the control box of your ROTAIR duct cleaning robot. In the event of a fault, please contact TEINNOVA’s Technical Assistance Service on +34 941 44 50 56. rotair Electric brushing robot... -
Page 7: Conditions Of Use
conditions of use ROTAIR is an electric brushing machine for the cleaning of air-conditioning ducts, both circular, with diameters of 200-600 mm, and rectangular. Appropriate fittings shall be provided for each duct. It can be used in flues and extraction hoods. Any other use is strictly prohibited Do not place the device in a horizontal without the written permission of... -
Page 8: Know Your Machine

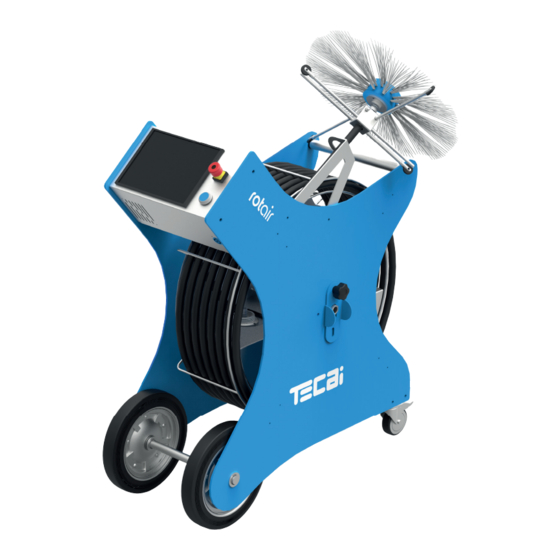

know your machine Components: 1- Control panel 8- Front wheel 2- LED strip 9- Resettable fuse 3- On/Off button 10- Electrical connection 4- Control bracket 11- HMI screen 5- Power cable support 12- Emergency stop button 6- Reel rotation lock 13- Brush 7- Rear wheel brake 14- Brush coupling... -
Page 9: Control Panel
control panel Main control panel: Touch screen The equipment is controlled via the touch screen. General Switch Switching the equipment on and off Emergency Mushroom Emergency stop LED Strip Indicates the status of the machine rotair Electric brushing robot 9-33... -
Page 10: Remote Control
remote control Remote control: Operate the timer on the ROTAIR brushing machine so that its Timer rotary movement lasts for the selected time. Operate the motor of the ROTAIR planing machine so that its Left Turn rotational movement is counterclockwise. Button for activating the above functions. - Page 11 accessories and related equipment Accessories included: Single brush adapter Coupling in which a specific type of brush is mounted to the head of your ROTAIR machine. The assembly of this coupling is very simple and consists of four individual parts. Cod.
- Page 12 accessories and related equipment Optional accessories: Remote control Remote control unit with which you can operate your ROTAIR equipment. Cod. AC3303605 ROTAIR Manual centring device Manual system with which the machine head is centred in the duct. Depending on the size of the duct in which the work is to be carried out, the legs must be slid to adapt correctly to the duct.
- Page 13 accessories and related equipment Fine NYLON Brushes Fine nylon brushes recommended for cleaning ducts with grade 1 dust (low soiling). Dimensions Cod. 7,87 CP2010520 9,84 CP2010525 11,81 CP2010530 13,78 CP2010535 15,75 CP2010540 17,72 CP2010545 19,69 CP2010550 23,62 CP2010560 Thick NYLON Brushes Coarse nylon brushes recommended for cleaning ducts with grade 2 dust (high soiling).
- Page 14 accessories and related equipment NYLON square duct brushes Double row Nylon brushes. One row is the same size as the duct height, while the other requires a specific dimension to achieve effective brushing in the corner. Dimensions Cod. 7,87 CP2032030 9,84 CP2032535 11,81...
- Page 15 accessories and related equipment Thick NYLON Brushes Pack Pack of 5 coarse nylon brushes recommended for cleaning ducts with grade 2 dust (high dirt). The brushes range in size from 200mm to 600mm diameter. Cod. CP2201015 Dimensions Cod. 7,87 CP2021020 11,81 CP2021030 15,75...
- Page 16 operating instructions Steps for a correct installation of your ROTAIR: Fitting your ROTAIR: Place your ROTAIR on a smooth and stable surface. Once the machine is in an optimal position for the work to be carried out, lock the brakes on the rear wheels so that the machine remains stable. Connection to the mains: Remove the electrical connection cable from the brackets and connect it to the mains.
- Page 17 The head of your ROTAIR is designed taking into account the possibility of incorporating special brushes with which the work can be carried out more efficiently and comfortably. These brushes are only supplied by TEINNOVA. Fit the first retaining disc as shown in the figure.
- Page 18 operating instructions Release the locking knob and remove the second retaining disc as shown in the figure. Remove the brush as shown in the figure. Remove the retaining disc as shown in the figure. rotair Electric brushing robot 18-33...
- Page 19 operating instructions Assembly of the centring device: Mount the body of the centring device on the hose end of your ROTAIR as shown in the figure and fix it with two knobs. Make sure to set it at 370mm, as shown in the picture, so that the work is done properly.
- Page 20 operating instructions Unlock the hose reel brake: Unlock the reel brake of your ROTAIR as shown in the figure. Once the reel is released, release the necessary metres to place the brush inside the duct and start working. Remember not to operate the brush when it is outside the duct as this may cause damage to persons or objects.
-
Page 21: Switching On The Equipment
operating instructions Selection of the function to be performed: By means of the control panel on the HMI screen, the function to be performed is selected. Depending on the function selected, the LED on the unit changes colour. Switching on the equipment: Switch on your ROTAIR by pressing the on/off button. - Page 22 operating instructions Turn the brush to the left: To activate the left-hand brush rotation, press the icon , which will light up green. The LED strip will light up progressively, in green, from right to left, remaining in continuous movement. Turn the brush to the right: To activate the clockwise rotation of the brush, press the icon which will light up green.
- Page 23 operating instructions Select automatic switchover: Press the icon to activate the automatic mode. You will be taken to another screen. Here you select the time, from 10 to 60 seconds, in which the brush will change direction. Once selected, press the icon on the screen again and the brush will start to rotate to the right.
-
Page 24: Activate Remote Control
operating instructions Activate remote control: Press the icon to activate the control. The display will remain the same with the remote control icon activated. The knob must be used to select the function, and then the icons will light up and the LED strip will change according to the selected function. - Page 25 operating instructions Stop the brush rotation: Press the stop button on the control unit to stop the brush from rotating. The LED strip will turn green in colour, with increasing and decreasing intensity, thus remaining in standby mode. Select automatic mode: To activate the automatic mode, press the icon , which appears on the remote control at the same time as the unlocking button.
-
Page 26: Equipment Settings
Breakdown warning: The communication error display indicates an internal problem with your equipment. The LED strip will turn red. Contact TEINNOVA Customer Service. Equipment settings: Pressing the settings icon will bring up the following screen, where you can change the language of the equipment and link a remote control. -
Page 27: Switching Off The Equipment
operating instructions Steps for a correct shutdown of your ROTAIR: Switching off the equipment: Turn off your ROTAIR by pressing the on/off button. The LED strip will turn off. Emergency stop: If a dangerous situation arises, the emergency stop button must be pressed and the device will stop immediately. - Page 28 transport The machine has been designed to be transported in a small van. During transport the machine must be securely tied down to prevent any damage. It should be placed in its normal working position (vertical) and the brakes on the rear wheels should be applied. It is not advisable to place the machine on a transport pallet or similar.
-
Page 29: Maintenance And Care
Spare parts: TEINNOVA has spare parts for all parts of the machine as well as consumables for all the maintenance tasks indicated in this manual. Should you require any parts or consumables, please contact TEINNOVA Customer Service on +34 941 44 50 56. -
Page 30: Waste Management
waste management The materials used in the packaging are recyclable. Do not dispose of the packaging in household waste, but hand it in at official collection points for recycling. Do not throw electrical appliances in the trash! We recommend that electrical tools and accessories are subjected to an environmentally friendly recycling process. -
Page 31: Technical Specifications
technical specifications Features rotair rotair 230V / 50 - 60Hz 110V / 50 - 60Hz Engine power: 370 W max. 0 - 3000 rpm Engine rotation speed: 0 - 500 rpm Engine operating speed: Less than 70 dB Noise level: Right / Left Direction of rotation: Electric... -
Page 32: Warranty Conditions
TECAI INNOVA S.L. C/ Las Balsas 16-B, Pol. Ind. Cantabria. 26009 LOGROÑO (La Rioja), Spain. TEINNOVA reserves the right to make changes to equipment without prior notice. rotair Electric brushing robot 32-33... -
Page 33: Ce Declaration Of Conformity
Telephone: +34 941 44 50 56 Fax: +34 941 25 24 71 Web: www.teinnova.net TECAI INNOVA, S.L., with full responsibility, certifies that the machine model described above complies with all the essential requirements of the following directives: Machinery directive 2006/42/CE Directive 2014/30/EU on electromagnetic compatibility and its amendments.
