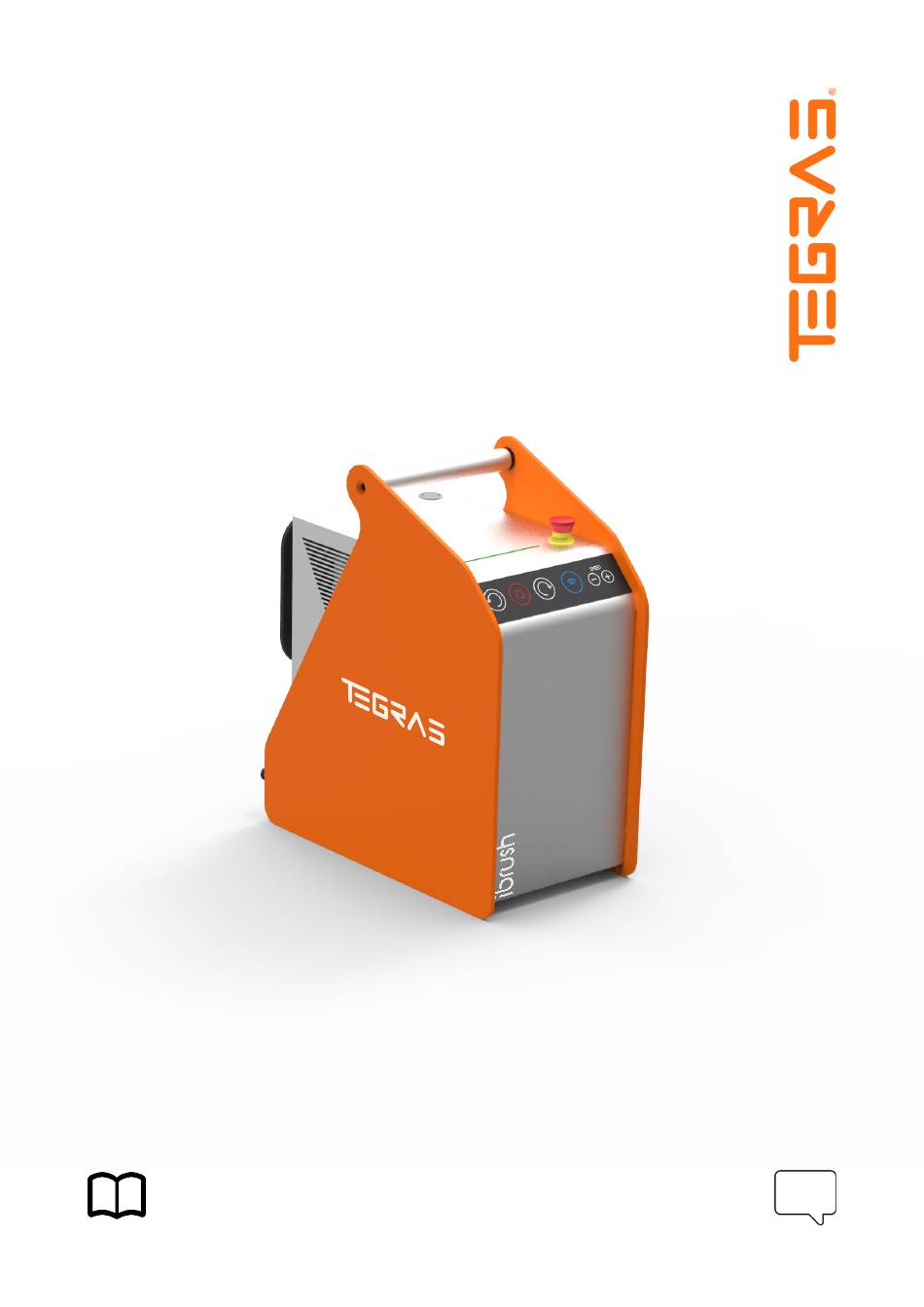

- Page 1 ibrush ibrush Electric brushing robot user manual original manual translation...
-
Page 2: Technical Service
Dear customer: Thank you very much for placing your trust in a quality product from TEINNOVA. This product is manufactured using modern production processes and extensive quality assurance measures. We try to do everything possible to ensure that you are satisfied with this product and can work with it without any problems. - Page 3 index symbology 5-32 safety warnings 6-32 conditions of use 7-32 know your machine 8-32 control panel 9-32 remote control 10-32 accessories and related equipment 11-32 operating instructions 15-32 ibrush ibrush Electric brushing robot 3-32...
- Page 4 index transport 26-32 maintenance and care 27-32 waste management 29-32 technical specifications 30-32 warranty conditions 31-32 CE declaration of conformity 32-32 ibrush ibrush Electric brushing robot 4-32...
- Page 5 symbology All the existing graphic symbols in this manual as well as those indicated on the equipment itself are explained in this section, it is important to read with special attention the text related to this symbology since it is related to personal and equipment safety.
-
Page 6: Safety Warnings
Properly secure IBRUSH equipment in an upright position during transport in a vehicle. Do not open or tamper with any of the internal elements of the equipment. In the event of a fault, contact TEINNOVA’s Technical Assistance Service on +34 941 44 50 56. ibrush... -
Page 7: Conditions Of Use
conditions of use IBRUSH is a machine for cleaning small exhaust ducts and extraction hoods. Suitable accessories must be provided for each duct. It includes a 7.5 metre hose so that 15 metres of pipe can be cleaned from a single point on the pipe. This equipment performs dry or wet cleaning, generating and applying active foam that is subsequently rinsed with water. -
Page 8: Know Your Machine
know your machine Components: 1- On/Off button 6- Combination hose connector 2- LED indicator 7- Electrical connection 3- Emergency button 8- Resettable fuse 4- Control panel 9- Electrical connection cable holder 5- Connection with your IFOAM COMPACT 10- Carrying handle ibrush ibrush Electric brushing robot... -
Page 9: Control Panel
control panel Main control panel: General Switch Switching the equipment on and off. Actuates the motor of the planing machine so that its rotational Left Turn movement is counterclockwise. Stop General shutdown of any system in operation. Drives the motor of the planing machine so that its rotational Right Turn movement is clockwise. -
Page 10: Remote Control
remote control Remote control panel: Operate the motor of the planing machine so that its rotational Left Turn movement is counterclockwise. Button for activating the above functions. In order to start a Unlock button function, both buttons must always be pressed at the same time. - Page 11 accessories and related equipment Accessories included: Flexible rotary shaft 7.5 meter rotating flexible shaft for performing the foaming/clarifying and brushing functions of your IBRUSH. Connections to the machine are made via individual quick connectors. Cod. AC3303608 Combination hose transport bag Cloth bag for protection and transport of the combination hose.
- Page 12 accessories and related equipment Optional accessories: NYLON Brushes Nylon brushes recommended for cleaning ducts with grade 1 grease (low soiling). Dimensions Cod. 7,87 CP1011520 9,84 CP1011525 11,81 CP1011530 13,78 CP1011535 15,75 CP1011540 PBT brushes PBT (butylene terephthalate) brushes recommended for cleaning ducts with grade 2 grease (medium soiling).
- Page 13 accessories and related equipment Anti-breakage protector Anti-breakage protector for the shaft and hose of your IBRUSH equipment. Cod. AC3303112 Protective weatherstrip Protective weatherstrip of 5 meters for registration. Cod. AC6134102 ibrush ibrush Electric brushing robot 13-32...
- Page 14 accessories and related equipment Related equipment: ifoam compact Intelligent active foam generator and rinse aid. 220V 50Hz; Cod. TG3320310 110V 60Hz; Cod. TG3320311 ibrush ibrush Electric brushing robot 14-32...
- Page 15 operating instructions Steps for a correct installation of your IBRUSH: Placement of your IBRUSH: Place your IBRUSH on a smooth and stable surface. Connection to the mains: The connection is made by means of the electrical connection cable supplied with the equipment. This cable consists of a standard connection to the mains.
- Page 16 operating instructions Connection of your IBRUSH with the IFOAM COMPACT equipment: The IBRUSH equipment must be used in combination with the IFOAM equipment for its operation. This connection is made by means of the low pressure hose incorporated in the IFOAM equipment. The connection must be made with both units switched off.
- Page 17 Brush assembly: The head of your IBRUSH is designed with the possibility of incorporating special brushes to make the work more efficient and comfortable. These brushes are only supplied by TEINNOVA. Fit the first retaining disc as shown in the figure.
- Page 18 operating instructions Release the locking knob and remove the second retaining disc as shown in the figure. Remove the brush as shown in the figure. Remove the retaining disc as shown in the figure. ibrush ibrush Electric brushing robot 18-32...
-
Page 19: Switching On The Equipment
operating instructions Selection of the function to be performed: Switching on the equipment: Switch on your IBRUSH by pressing the on/off button. The LED strip will turn green up to the section that corresponds to the minimum speed of the brush rotation, with intensity increases and decreases. - Page 20 operating instructions Brush rotation to the left: Pressing this button activates the counter-clockwise rotation of the brush. The LED strip will light up progressively from right to left, going up to the selected speed and back, remaining in continuous movement. Right-hand brush rotation: Pressing this button activates the clockwise rotation of the brush.
- Page 21 operating instructions Rotate the brush to the left with the remote control: Pressing the rotation button on the control at the same time as the unlock button activates the brush to rotate in a counter-clockwise direction. The LED strip will light up progressively from right to left, going up to the selected speed and back, remaining in continuous movement.
-
Page 22: Automatic Mode
Make sure that the brush is not blocked, is the correct size and is not working at high speed. If the LED strip stays red it indicates an internal problem with your equipment. Contact TEINNOVA Customer Service. ibrush ibrush Electric brushing robot... -
Page 23: Stopping The Equipment
operating instructions Stopping the equipment: Press the stop button to end the function being performed by the equipment. The LED strip will turn green up to the section proportional to the selected rotation speed, indicating that the equipment is paused awaiting orders. - Page 24 operating instructions Steps for a correct shutdown of your IBRUSH: Disconnection of your IBRUSH with the IFOAM COMPACT equipment: Disconnect the liquid hose from your IFOAM. Disconnect the liquid connection hose of your IFOAM from your IBRUSH equipment. Disconnection from the mains: Disconnect the mains cable and store it in the device holder.
- Page 25 operating instructions Disconnection of the combined brushing hose: Disconnect the quick connector from the liquid outlet fitting and the quick connector from the flexible shaft as shown in the picture. ibrush ibrush Electric brushing robot 25-32...
- Page 26 transport The machine has been designed to be transported in a small van. During transport the machine must be securely tied down to prevent any damage. It should be placed in its normal working position (vertical) and the brakes on the front wheels should be applied. It is not advisable to place the machine on a transport pallet or similar.
-
Page 27: Maintenance And Care
maintenance and care Keep the equipment as clean as possible, storing it in a place protected from the weather. After you have finished using your IBRUSH equipment it is important to clean the liquid circuit of the equipment by rinsing. Keeping the equipment stored with chemicals in the internal ducts of the machine can reduce the life of the components. - Page 28 Spare parts: TEINNOVA has spare parts for all parts of the machine as well as consumables for all the maintenance tasks indicated in this manual. Should you require any parts or consumables, please contact TEINNOVA Customer Service on +34 941 44 50 56.
-
Page 29: Waste Management
waste management The materials used in the packaging are recyclable. Do not dispose of the packaging in household waste, but hand it in at official collection points for recycling. Do not throw electrical appliances in the trash! We recommend that electrical tools and accessories are subjected to an environmentally friendly recycling process. -
Page 30: Technical Specifications
technical specifications Features ibrush ibrush 220V / 50Hz 110V / 60Hz Hydraulic power supply: Pressure mín. 2 bar Pressure min. 29 psi Maximum outlet pressure: 6 bar // 87 psi Engine power: 0,37 kW // 0,5 HP Engine rotation speed: 0 - 3000 rpm Engine operating speed: 0 - 500 rpm... -
Page 31: Warranty Conditions
TECAI INNOVA S.L. C/ Las Balsas 16-B, Pol. Ind. Cantabria. 26009 LOGROÑO (La Rioja), Spain. TEINNOVA reserves the right to make changes to equipment without prior notice. ibrush ibrush Electric brushing robot... -
Page 32: Ce Declaration Of Conformity
Telephone: +34 941 44 50 56 Fax: +34 941 25 24 71 Web: www.teinnova.net TECAI INNOVA, S.L., with full responsibility, certifies that the machine model described above complies with all the essential requirements of the following directives: Machinery directive 2006/42/CE Directive 2014/30/EU on electromagnetic compatibility and its amendments.
