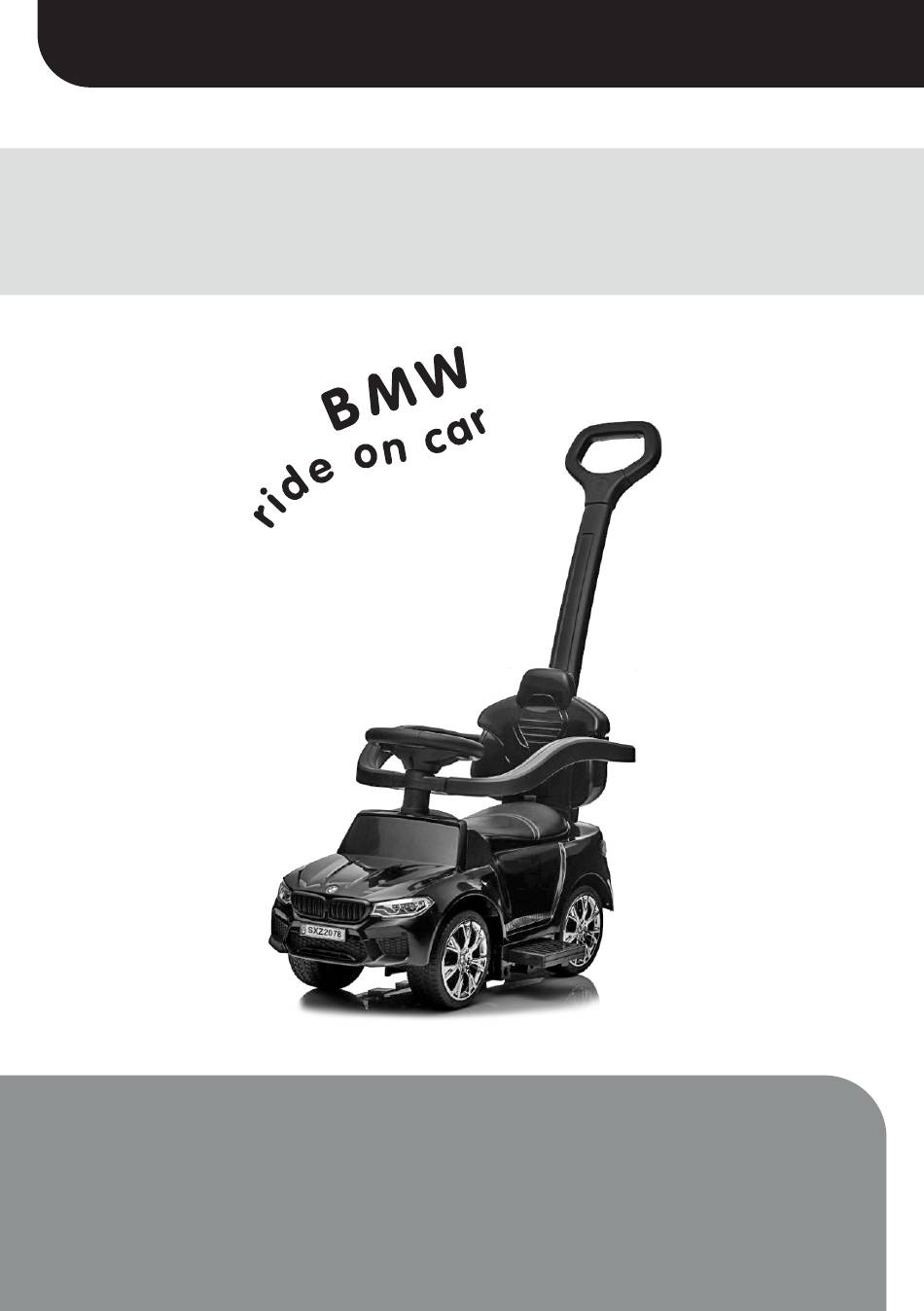

IMPORTANT! RETAIN THIS INSTRUCTION MANUAL FOR FUTURE REFERENCE!
INSTRUCTION MANUAL
FOR TOY RIDE ON CAR
BMW
This
toy
is
produced
in
conformity
with
the
requirements
of
Toy Safety Directive 2009/48/EC of the European Parliament and the Council,
the Regulation on essential requirements and conformity assessment of toys,
the Regulation on conformity marking and the applicable European standards.

Advertisement

loading
Need help?

Need help?

Do you have a question about the BMW and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Chipolino BMW

Summary of Contents for Chipolino BMW

  • Page 1 IMPORTANT! RETAIN THIS INSTRUCTION MANUAL FOR FUTURE REFERENCE! INSTRUCTION MANUAL FOR TOY RIDE ON CAR This produced conformity with requirements Toy Safety Directive 2009/48/EC of the European Parliament and the Council, the Regulation on essential requirements and conformity assessment of toys, the Regulation on conformity marking and the applicable European standards.

  • Page 2: Important Warnings

    TO GUARANTEE THE SAFE USE OF THIS PRODUCT FOLLOW THE WARNINGS, GUIDELINES AND RECOMMENDATIONS IN THIS MANUAL! IMPORTANT! WARNINGS! • CAUTION! NEVER LEAVE THE CHILD UNATTENDED! • CAUTION! THIS TOY HAS NO BRAKE! • CAUTION! THIS TOY IS NOT SUITABLE FOR CHILDREN UNDER 18 MONTHS AND WEIGHT MORE THAN 20kg.

  • Page 3: Main Parts

    IMPORTANT! WARNINGS AND GUIDELINES FOR BATTERY USE • Always secure the batteries compartment with the cover after batteries installation. • Do not allow children to access or play with the batteries! • Use only batteries of the designated type and power. • Do not use batteries of different types. • Do not mix new with used batteries. • Follow the designated polarity in the battery compartment. • Remove damaged or worn out batteries. • Remove the batteries when the product will not be used for long time. • Do not throw the batteries in open fire. Do not take the batteries to pieces. CAUTION! Waste from depleted or unusable batteries must be disposed of separately. It is forbidden to throw them out in containers for household waste. Dispose of the batteries only at the specified places. MAIN FEATURES OF THE PRODUCT Batteries needed 4 pcs size АА/1,5V Recommended age of the child 18-35 months Maximum weight of child 20 kg 65х29х42 cm (without push handle) Sizes of toy 79,5х35,5х101,5cm (with push handle)
  • Page 4 ASSEMBLY UNSTRUCTIONS AND FUNCTIONS WARNING! FOLLOW EXACTLY THE INSTRUCTIONS AND SEQUENCES FOR ASSEMBLY AND US- ING THE PRODUCT FROM THE BELOW FIGURES. WARNING! CHECK THE SECURITY OF FIXING AFTER PERFORMING ANY OPERATION! Required tools for performing some operations: screwdriver (not included). The toy assembly operations and functions are described below. ASSEMBLY FOOTREST press press...
  • Page 5 ASSEMBLY OF BRAKE PADS pads pads Place at both sides of front and rear axis one brake pad and press. ASSEMBLY OF FRONT WHEELS fixing bracket front wheel washer decorative cover Place the wheel on front axis, add the washer and fix with the bracket. At last place the decorative cover with pressure until you hear a click sound and it fixes. Assemble the other wheel following the same order of actions.
  • Page 6 ASSEMBLY OF REAR WHEELS rear wheel ATTENTION! fixing bracket Correct installation washer of fixing bracket! decorative cover Place the wheel on rear axis, add the washer and fix with the bracket. At last place the decorative cover with pressure until you hear a click sound and it fixes. Assemble the other wheel following the same order of actions. ASSEMBLY OF STEERING WHEEL steering wheel connectors steering axis Join the wire connectors at steering wheel and steering axis as shown in the figure. Align the openings at the steering wheel and steering axis so they match. Place the screw and fix with the nut.
  • Page 7 ASSEMBLY OF BACKREST Place the backrest to the body of car as shown in the figure. Press to fix it. ASSEMBLY OF GUARDS locking axis Insert the shoulders of the guards into the corresponding slots of the backrest. Place the “click“ locking axis as shown in the figure. Rotate the shoulders of the guards and place them to the steering wheel. Press until the button shows out of the slot. This indicates that shoulders are fixed. guards ASSEMBLY OF PUSH HANDLE push handle Place the push handle to the slot of the backrest.

  • Page 8: Care And Maintenance Instructions

    CARE AND MAINTENANCE INSTRUCTIONS • Regularly check the plastic parts of the ride on car for any cracks or damage. • Regularly oil the moving parts. • Clean the toy by using a damp soft towel or sponge and a mild soap. Do not pour water on the toy. • Do not clean with aggressive detergents containing abrasive particles, ammonia, bleach or spirit. • Store the product in a clean and dry place, without moisture and at a safe distance from heat sources! Do not subject to direct environmental effect – sun, rain, moisture or harsh temperature changes! • Do not use the product on muddy, sandy or gravel covered terrains, which can damage the moving parts. • In case of problems related to normal operation, contact authorized service centers for consultation or repair. ROCBMW023xxxx/ SXZ2078...
  • Page 9 Producer: Produced for Chipolino in PRC Importer: CHIPOLINO LTD., 1 Goliamokonarsko Shosse Str, Plovdiv, BULGARIA; tel.: +359 32 600 889; www.chipolino.com...
