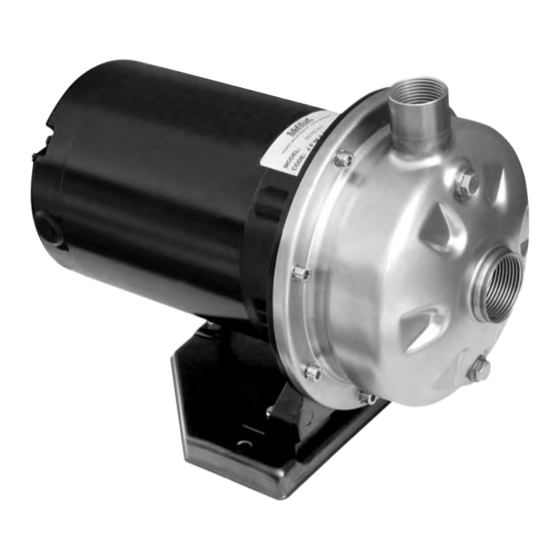

- Page 1 T C S e r i e s C E N T R I F U G A L Congratulations On Your Choice In Purchasing This Webtrol Pump Its Quality is unsurpassed in material and workmanship. If properly 12/08 Edition...
- Page 2 Lubricants & Sealants Required: Kit Inspection And Handling 3-in-1 Oil Loctite thread locker 242 After receiving your TC Kit, inspect the contents and report to the carrier any items that are damaged or missing. See parts list. Keep all packaging materials Installation Of Motor until the claim is resolved.
- Page 3 5) For ease of assembly lubricate the driving ring on Warning: Failure to properly install the impeller the mechanical seal with water. By hand, carefully and impeller lock nut could result in the press the rotating seal assembly onto the motor shaft. impeller spinning off the shaft in three The carbon seal face must contact the ceramic seal phase applications (if motor starts in...
- Page 4 Final Inspection After assembly, rotate the motor shaft. To do this, rotate the exposed motor shaft at the rear of the motor. If you can turn the shaft with minimum effort and no drag, the pump is operable. If not repeat the impeller and casing installation.
