Installation & Operating Manual
Congratulations on Your Choice in Purchasing this Webtrol Pump!
Its Quality is unsurpassed in material and workmanship and has been factory tested.
WTE Series
If properly installed, it will give many years of trouble free service.
10/19 Edition
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for webtrol WTE Series
Summary of Contents for webtrol WTE Series

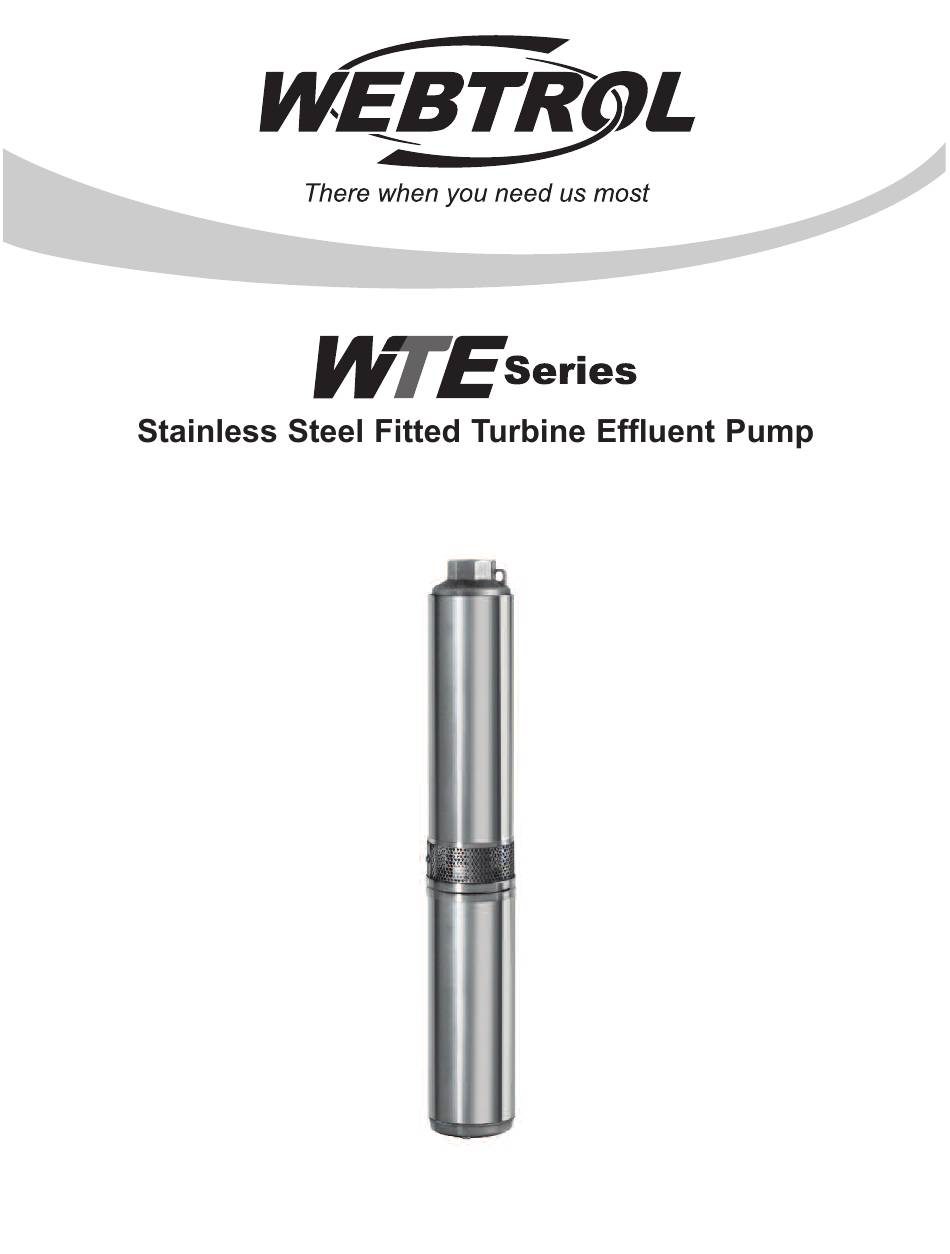

- Page 1 Installation & Operating Manual Congratulations on Your Choice in Purchasing this Webtrol Pump! Its Quality is unsurpassed in material and workmanship and has been factory tested. WTE Series If properly installed, it will give many years of trouble free service. 10/19 Edition...
- Page 2 Examine the components carefully to ensure that no damage has occurred to the liquid end, motor, or cable during ship- ment. Report damage immediately to the shipping carrier or to your dealer / distributor. The Webtrol Effluent Submersible Pump should remain in the shipping carton until it is ready to be installed. Do not drop or mishandle the pump prior to installation.
- Page 3 Pump should be sized correctly for flow, head, and include friction losses. If the discharge pipe is subject to freezing, protect the system from freeze up. The discharge pipe can be insulated. If a check valve is not installed, the “on-off” cycle must be adjusted for any back-flow from the discharge pipe. Note! The thermoplastic and stainless steel pumps are shipped without a check valve.
- Page 4 Typical Tank Installations Figure 2 - Typical Installation - 4 -...
- Page 5 Typical Tank Installations Figure 3 - Typical Installation - 5 -...
- Page 6 Typical Tank Installations - Continued Figure 4 - Typical Installation Single Phase Motors - Wiring Diagram - 6 -...
- Page 7 System Trouble Shooting Motor Does Not Start Cause of Trouble Checking Procedure Correction Action A. No power or incorrect voltage. Using voltmeter check the line terminals. Voltage must Contact power company if voltage is incorrect. be + 10% of rated voltage. B.
- Page 8 We at Webtrol are constantly working on new products to make your job easier, while making your systems more efficient, reliable and affordable. Your opinion means a lot to us, so please let us know what you think about our WTE Series Effluent Pump.
