webtrol EZ Series Maintenance & Repair Manual
  1. Manuals
  2. Brands
  3. webtrol Manuals
  4. Water Pump
  5. EZ Series
  6. Maintenance & repair manual

webtrol EZ Series Maintenance & Repair Manual

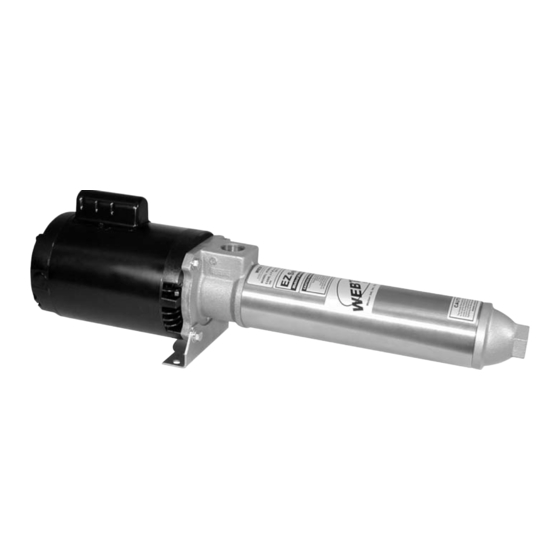

Cast iron and stainless steel booster pump .5 - 3 hp
Hide thumbs Also See for EZ Series:
1
2
3
4

Advertisement

Quick Links

Download this manual
Maintenance & Repair Manual
Cast Iron
Stainless Steel
.5 - 3 HP Models
EZ Series
01/20 Edition

Advertisement

loading
Need help?

Need help?

Do you have a question about the EZ Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for webtrol EZ Series

Summary of Contents for webtrol EZ Series

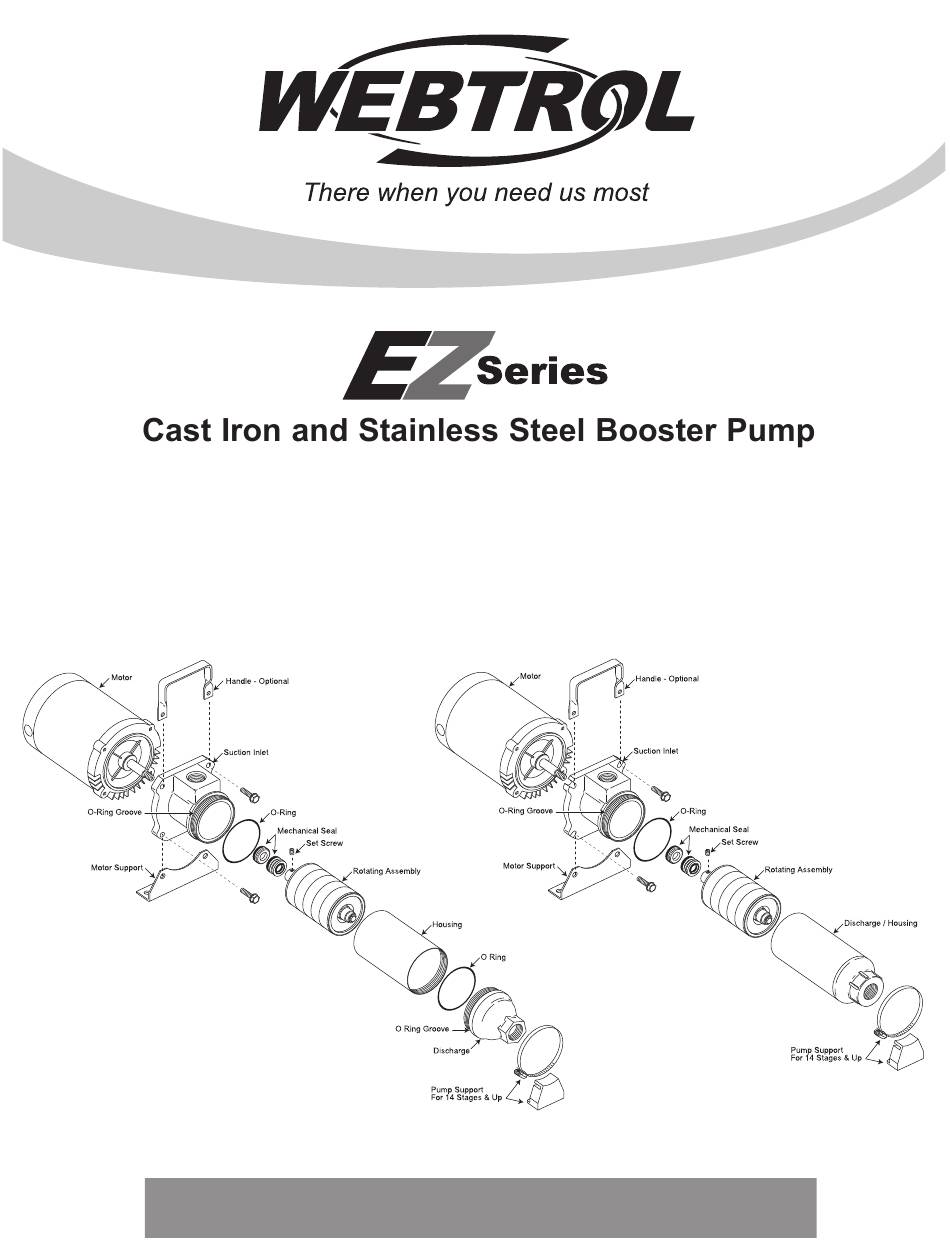

  • Page 1 Maintenance & Repair Manual Cast Iron Stainless Steel .5 - 3 HP Models EZ Series 01/20 Edition...
