PLUMBED COFFEE SYSTEM MAINTENANCE SCHEDULE
Maintenance
Milk Cleaning
(Approx. 5 minute process)
Plumed Model CM24P
Routine Cleaning
Decalcification
(Approx. 30 minute process)
Service Call
*4000 cycles occur about every 2 years
TOOLS NEEDED FOR INSTALLATION
•
Phillips Screwdriver
•
Wrench
•
Utility Knife
•
Measuring Tape
•
Pencil
INSTALLATION
A.
OPEN CARTON & INSPECT PARTS
Installation Parts
Key
Description
1
QL3 Filter Head
2
SCS-350 Cartridge
3
JT Cartridge
4
Elbow Stud 4 mm
5
Adapter, 3/8" NPT x 1/4" BSPP
6
Angle Stop Valve Adaptor
7
Fixed Elbow
8
Teflon
Tape
®
9
Tubing, 1/4" PF
10
ScaleKleen (See above chart)
11
2CB-GW Cartridge*
B.
VERIFY MOUNTINg LOCATION
Read all warnings and cautions on the back page of this manual
before beginning installation.
Measure 22" from the base of the cabinet, and mark the mounting
location for the top of the filter head. Make sure there is adequate
space above the head to open and close the built in shut-off valve and
to avoid crimping the water line tubing. Also, make sure your chosen
location offers easy access for future cartridge changes.
*NOTE: Use 2CB-GW cartridge in locations that do not require
hardness reduction. Order EV9618-31 separately.
Everpure Technical Services (800) 942-1153 • 7:00 AM–6:00 PM CST (Monday–Friday)
Schedule
Within two hours after last drink
containing milk
Quarterly
Weekly
Quarterly & Every 4000 cycles*
Every 4000 cycles*
Part No.
EV9258-31
EV9270-20
EV9608-51
EV3124-06
EV3123-64
EV3121-20
EV3081-59
EV3121-19
A08601-19
EV9798-50
EV9618-31
Instruction Guide

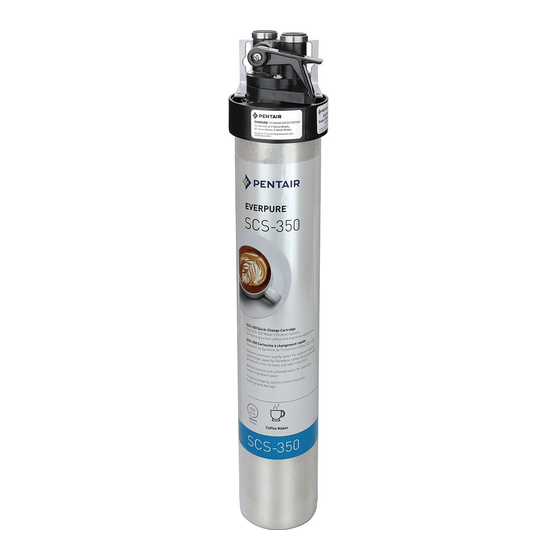

SCS-350 Filtration/Decalcification Service Kit
APPROVED CLEANERS**
Part No.
ACDC10
ACCLKIT
A-302
EV9798-15
** Available from Dacor Appliance dealers, Dacor Parts Distributors or
at www.everythingdacor.com
A
4
1
2
3
DIMENSION
Width
SCS-350
5"
JT Can
5"
2CB-GW*
5"
NOTE: The head and cartridge must be mounted in the vertical
position, with the cartridge hanging down.
Description
Dacor Puly Decalcifying Powder for
use with model CM24T and CM24P
Dacor Kit containing Puly Detergent
Tablets and Puly Liquid Detergent
Dacor Stainless Steel Cleaner
ScaleKleen: Everpure Decalcifying
powder for use with model CM24P
6
5
7
8
9
Height
Depth
22"
5"
15"
5"
15"
5"
EV3123-65 Rev A DE07
Advertisement
Related Manuals for Everpure dacor SCS-350
Summary of Contents for Everpure dacor SCS-350
- Page 1 NOTE: The head and cartridge must be mounted in the vertical position, with the cartridge hanging down. *NOTE: Use 2CB-GW cartridge in locations that do not require hardness reduction. Order EV9618-31 separately. Everpure Technical Services (800) 942-1153 • 7:00 AM–6:00 PM CST (Monday–Friday) EV3123-65 Rev A DE07...
- Page 2 MOUNT FILTER HEAD Identify Filter Head and the two Fittings, and note inlet is 1/4" and the outlet is 4 mm. Apply Teflon Tape to the threads of each Elbow Fitting. ® Wrap tape in direction of the threads to assure a tight fit and avoid small leaks.
- Page 3 Push CLEAN again to immediately start the cleaning cycle. If the CLEAN button is not pushed again, the cleaning cycle will Install a new water filtration cartridge (Everpure model SCS-350, automatically start in about 20 seconds. H54, 2CB-GW or H300) into the water filtration system head and turn the water on by moving the lever down on the QL3 head.
- Page 4 If a part described above is found defective within the specified period, you should notify Everpure technical service at the phone number listed below. Any part found defective within the terms of this warranty will be repaired or replaced (at Everpure’s discretion) by your local dealer or Everpure technical service. You pay only freight from our factory and local dealer charges.
