Sustainable Solutions fluid Installation Instructions Manual

Citi Siphonic Rimless
1.28/0.8 gpf (4.8/3 lpf)
Easy Height & Elongated
One Piece Toilet with
Side Lever Handle
LH Lever FP240120W
RH Lever FP240120W-R
Vitreous China Dual Flush
High Efficiency (UHET)
PLUMBER'S INSTALLATION INSTRUCTIONS. PLEASE
READ CAREFULLY BEFORE INSTALLATION.

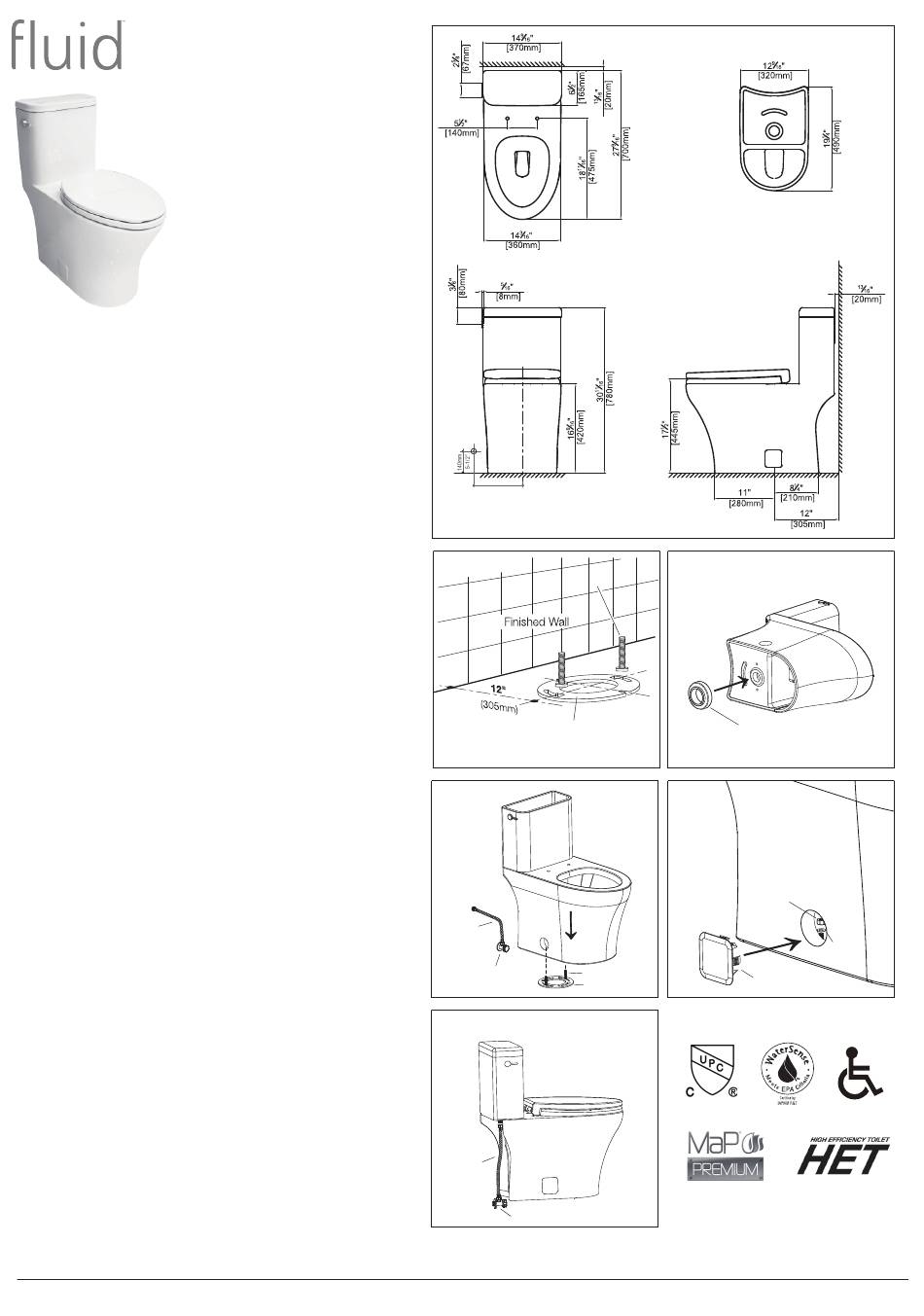

Rough in:
It is essential for the installation of the Citi Siphonic Rimless
One Piece Toilet that the closet flange must be accurately
set out from the finished wall as detailed in Fig.1.
Working Water Pressure:
USA & Canada: Recommended working water pressure is
20-80psi (140-550Kpa).
Installation Procedure:
1- Position closet bolts into closet flange (not supplied),
as detailed in Fig.1.
2- Ensure that the area around the toilet bottom is clean and
free from building material.
3- Position wax seal (not supplied) onto the trapway firmly,
as detailed in Fig. 2.
4- Accurately align the toilet over the closet bolts and
flange and lower into position as detailed in Fig. 3.
5- Secure the toilet by hand tightening nuts and washers
onto the closet bolts. Apply an additional 1/2 turn with a
wrench tool for final installation as detailed in Fig. 4.
6-
Cover the round holes on both sides of toilet with a pair
of supplied square covers.
7-
It is recommended that a bead of silicone caulking is
applied fully around base of the closet bowl.
8-
Remove any excess silicone caulking.
9-
Connect the water supply line to toilet inlet valve connection
as detailed in Fig. 5 and check all connections for leaks.
Note: The tapered rubber seal and wing nut assembled
at the inlet valve connection end is a 3/8" hard tube/pipe
connection. Remove them if a braided toilet supply
line connector is used.
10-
Install the side handle lever according to the instructions
included with the side lever.
11- Install the toilet seat according to the instructions included
with the seat.
12-
Push side lever down firmly for a full flush and pull side
lever up for a reduced flush.
All measurements are subject to accepted manufacturing tolerances.
To ensure complete accuracy, please check actual product dimen-
sions before drilling for installation. The manufacturer reserves the
right to change specifications at any time without giving prior
notification.
This product should be installed by a qualified plumber. Local authority,
Water Board, and Building Regulations may apply to the installation of
this product, and you should consult the appropriate bodies on these
requirements. Failure to comply may invalidate the product warranty.
Sustainable Solutions Vancouver BC + Ferndale WA
Location of
Angle Stop
216 mm
8-1/2"
Closet Bolt
Closet Flange
Fig. 1
Water
Supply
Line
Angle Stop Valve
Closet Bolt
Closet Flange
Fig. 3
Water
Supply
Line
Fig. 5 Angle Stop Valve
Wax Seal
Fig. 2
Nut
Washer
Square Cover
Fig. 4
For further information please visit our website
www.sustainablesolutions.com
Date of Issue: June 2022
