Assembly Instruction
KVT
ID
KVT 3015 E2 10
116239
KVT 4020 E4 10
116138
KVT 5025 D4 10
116287
KVT 5025 E4 10
116140
KVT 5025 E4 10
127151
KVT 5030 D4 10
116275
KVT 5030 D6 10
116282
KVT 5030 E4 10
116142
KVT 5030 E6 10
116272
KVT 6030 D4 10
116284
KVT 6030 E4 10
116144
KVT 6035 D4 10
116280
KVT 6035 D4 11
116313
KVT 6035 D6 10
116314
KVT 6035 E4 10
116146
KVT 6035 E6 10
116312
KVT 7040 D4 10
116148
KVT 8050 D4 10
116292
KVT 8050 D6 10
116150
KVT 10050 D6 10
116152
Änderungen vorbehalten • Modifi cation reserved • Sous réserve de modifi cations • Sub rezerva modifi carilor • Компания оставляет за собой право вносить
изменения без предварительного уведомления. • Wijzigingen voorbehouden • Pridržujemo si pravico do sprememb. • Zadržano pravo izmjena • Változtatások
joga fenntartva • Zmeny sú vyhradené • Modifi cação reservada • Reservado el derecho de modifi caciones • Zmiany zastrzeżone • Med forbehold for ændringer
ruck
Ventilatoren GmbH
Max-Planck-Str. 5
mkut_pb_12 print 07.03.2014

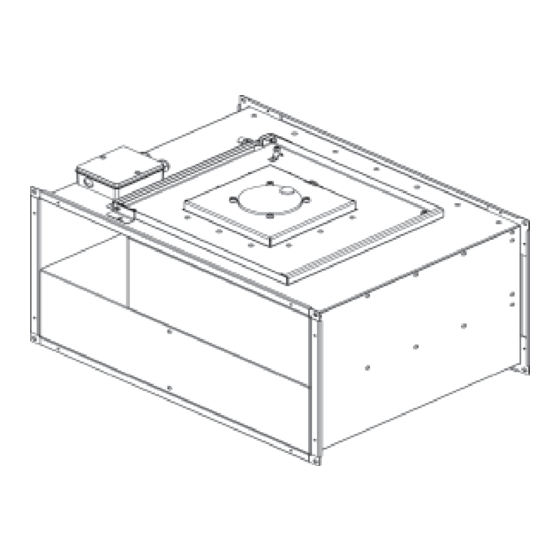

Kanalventilator • Duct Fan • Ventilateur pour gaines
rectangulaires • Ventilator de canal rectangular •
Канальный вентилятор в прямоугольном корпусе •
Kanaalventilator • Kanalni ventilator • Kanalni venti-
lator pravokutnog presjeka • Csatornaventilátor • Tu-
nelový ventilátor • Ventilador de conduta • Ventilador
de conducto • Wentylator kanałowy • Kanalventilator
U
f
P
[V]
[Hz]
[W]
230V ~
50
240
230V ~
50
179
400V 3~
50
448
230V ~
50
520
230V ~
50
511
400V 3~
50
820
400V 3~
50
350
230V ~
50
700
230V ~
50
260
400V 3~
50
1360
230V ~
50
990
400V 3~
50
1440
400V 3~
50
2070
400V 3~
50
720
230V ~
50
1005
230V ~
50
690
400V 3~
50
4070
400V 3~
50
6600
400V 3~
50
2280
400V 3~
50
3800
D-97944 Boxberg-Windischbuch
t
I
max
A
[A]
[°C]
1,1
40
0,8
50
0,9
60
2,5
40
2,6
50
1,5
40
0,9
45
3,6
50
1,2
75
2,5
45
4,7
40
2,7
40
4,0
45
1,7
80
4,9
40
3,4
70
7,4
50
11,9
40
4,7
80
7,7
60
Tel. +49 (0)7930 9211-0
Fax. +49 (0)7930 9211-150
127818
127818
127860
127819
127819
127860
127860
127819
127819
127860
127819
127860
127860
127860
127819
127819
127860
127860
127860
127860
info@ruck.eu
www.ruck.eu
