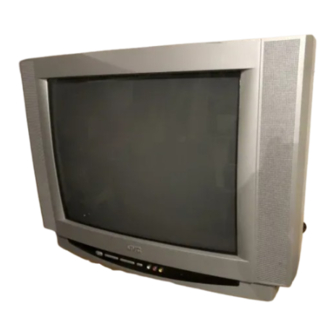

- Page 1 AV-21KM3BN DEUTSCH ENGLISH AV-21KM3SN FARBFERNSEHGERÄT BEDIENUNGSANLEITUNG VICTOR COMPANY OF JAPAN, LIMITED COLOUR TELEVISION INSTRUCTIONS 50049547 ©2004 VICTOR COMPANY OF JAPAN, LIMITED 0503-JVC...
-
Page 2: Table Of Contents
Contents Safety Precautions 1. Power Source Safety Precautions ..........15 The receiver should be operated only from a 220-240V AC, Remote Control Buttons ........16 50 Hz. outlet. Ensure you select the correct voltage setting Control Panel Buttons ..........17 for your convenience. -
Page 3: Remote Control Buttons
Remote Control Buttons = Stand By / Power 0 - 9 = Direct Program Standard Button (PICTURE default settings) Colour Buttons MENU = Menu Button ) = Cursor Up / Programme Up ) = Cursor Right / Volume + Teletext Control Buttons VCR Control Buttons ) = Cursor Down / Programme Down ) = Cursor Left / Volume -... -
Page 4: Control Panel Buttons
Control Panel Buttons AV-21KM3BN AV-21KM3SN Antenna Connections ENGLISH - 17 -... -
Page 5: Preparation
NOTE: Remove batteries from remote control handset when it is Preparation not to be used for a long period. Otherwise it can be damaged due to any leakage of batteries. Place TV on a solid surface. For ventilation, leave a space of at least 10 cm free all around Switching the TV ON/OFF the set. -
Page 6: Operating With The Onset Buttons
Programme Selecting (Previous or next programme): • Press “ ” button to select the previous programme. • Press “ “ button to select the next programme. Programme Selecting (direct access): Press digit buttons on the remote control handset to select programmes between 0 and 9. -
Page 7: Picture Menu
Setting Bass Level: Picture Menu • Using “ “ or “ ” button select Bass. To change picture settings: • Press “ ” button to increase bass level. • Press “MENU” button, now you are in main menu. In the •... -
Page 8: Feature Menu
Setting Hue (In AV mode only) : During the last minute of the count down, the timer is dis- played on the upper right of the screen. When the timer • Using “ “ or “ ” button select HUE. reaches zero, TV goes to stand-by. -
Page 9: Program. (Programming) Menu
To programme a channel in a TV’s programme Program. (Programming) Menu number manually: PROGRAM. (Programming) menu is used to display the 1. PROGRAMME will be the first selected item as you enter programme names and numbers. You can use this menu to the INSTALL. -
Page 10: Other Features
Press the VCR Control Button to control your VCR. Note: • If your device is not made by JVC, these buttons cannot be used. • Even if your device is made by JVC, some of these buttons or any one of the buttons may not work, depending on the device. -
Page 11: To Select Index Page
To Select Index Page Fastext and Toptext • To select the page number of the index (generally page Teletext mode will be selected according to transmission au- tomatically. 100), press “ “ button. Your TV supports the 7 page Teletext system. When the Searching for a teletext page while watching TV page number of any of the 7 pages in memory is entered, the system will not search for the requested page;... -
Page 12: Connect The External Equipments
Connect the External Equipments Before connecting anything • Switch off all equipments including the TV. • Read the manuals provided with the equipments. To select an AV mode Pressing “AV” button on the remote control selects one of four AV modes (AV- 1, AV-2, AV-2 S and F-AV). •... -
Page 13: Via The Euroconnector
Via the Euroconnector Tips Your TV set has two Euroconnector sockets. If you want to Care of the Screen connect equipments (e.g. video recorder, decoder, etc.) which have Euroconnectors, to your TV, use the AV-1 (SCART 1) or Clean the screen with a slightly damp, soft cloth. Do not use AV-2 (SCART 2) terminals. -
Page 14: Specifications
PICTURE TUBE ..........For 21” AUDIO OUTPUT POWER ) (%10 THD) ........2 x 8 RMS. POWER CONSUMPTION (W) (max.) ....85 DIMENSIONS (mm) ........AV-21KM3BN AV-21KM3SN D ................. 490 L ................. 596 H ................. 446 Weight (Kg.) ............21,4 ENGLISH - 27 -...
