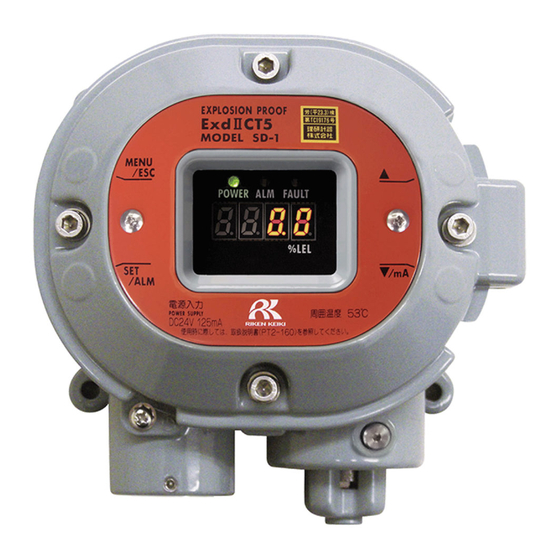

- Page 1 PT2E-2195 Smart transmitter/Gas Detector Head SD-1 （TYPE GP S） Operating Manual (PT2E-160) (PT2-160)
- Page 2 Operating Precautions This detector is a gas detector that detects combustible gases in the air and triggers a gas alarm. The gas detector is a safety unit, not an analyzer or densitometer which performs quantitative/qualitative analysis/measurement for gases. Please fully understand the following points before using it, so that it can be used properly. This detector may be interfered by gases and vapors other than the gas to be detected.
-
Page 3: Table Of Contents
Operating Precautions <Contents> 1 Outline of the Product ......................2 1-1. Preface ..........................2 1-2. Purpose of use ........................ 2 1-3. Definition of DANGER, WARNING, CAUTION, and NOTE ..........2 1-4. Method of confirmation for Standards and Explosion proof specification ......3 2 Important Notices on Safety.................... -
Page 4: Outline Of The Product
Outline of the Product 1-1. Preface Thank you for choosing our smart transmitter/gas detector head SD-1(TYPE GP S). Please check that the model number of the product you purchased is included in the specifications on this manual. This manual explains how to use the detector and its specifications. It contains information required for using the detector properly. -
Page 5: Method Of Confirmation For Standards And Explosion Proof Specification
1 Outline of the Product 1-4. Method of confirmation for Standards and Explosion proof specification 1-4. Method of confirmation for Standards and Explosion proof specification This instrument has some specification depends on standard and explosion proof certificate. Please confirm the detector specification before using. Please refer Declaration of Conformity that is at the end of this manual if you have CE marking type. -
Page 6: Important Notices On Safety
TIIS Specifications: -20 to +53°C Do not replace parts at your sole discretion but contact RIKEN KEIKI if the transparent window has a crack or the explosion-proof joint surface is abnormal, or the clamping screw or bolt is changed, lost etc. -
Page 7: Warning Cases
2 Important Notices on Safety 2-2. Warning cases 2-2. Warning cases WARNING Power supply Before turning on the detector, always check that the voltage is properly applied. Do not use an unstable power supply because it may cause malfunctions. Need of grounding circuit Do not cut the grounding circuit or disconnect the wire from the grounding terminal. -
Page 8: Precautions
2 Important Notices on Safety 2-3. Precautions 2-3. Precautions CAUTION Do not use a transceiver near the detector. Radio wave from a transceiver near the detector or its cables may disturb commands. If a transceiver is used, it must be used in a place where it disturbs nothing. To restart the detector, wait for five seconds or more before doing it. -
Page 9: Safety Information
Necessary information for explosion proof construction of Model SD-1. The Model SD-1 is a fixed mount, continuous-monitoring detector head and provides a 4-20mA signal which indicates the target gas reading for use by a gas monitoring controller, recording device, or programmable controller. - Page 10 2 Important Notices on Safety 2-4. Safety information <TIIS Specifications> Technical Data (Protection Method) Flameproof enclosure (Explosion-proof class) Ex d IIC T5 X (Ambient Temperature) -20C to 53C (Electrical Data) Supply voltage: DC24V±10% 125mA Analog signal output: DC24V 25mA Contact output (Contact capacity): AC250V 0.5A (Load resistance) DC30V 0.5A (Load resistance) (Applicable Standard) JNIOSH-TR-NO.
-
Page 11: Product Components
3 Product Components 3-1. Gas detector and standard accessories Product Components 3-1. Gas detector and standard accessories <Main Unit> (including a cable gland or an adapter) 【ATEX/IECEx Specification】 Adapter A (NPT1/2) 【TIIS Specification】 Cable gland (G3/4) - 9 -... -
Page 12: Names And Functions For Each Part
3 Product Components 3-2. Names and functions for each part <Standard Accessories> Operating manual･･････････････････ one Dedicated handling lever (used for the wiring) ･･････････････････ one Dedicated control key････････ The supplied quantity depends on the number of units to be delivered. 1 to 10 units 11 to 20 units 21 to 50 units three... -
Page 13: Block Diagram
3 Product Components 3-3. Block diagram 3-3. Block diagram <Electric Diagram> Power supply part POWER INPUT (24 VDC) Display （POWER） （ALARM） （FAULT) Controller Seven-segment LED Alarm contact controller (CPU) (four-digit) 1. Gas alarm contact (ALARM) Magnetic operation part (MENU/ESC) (▲) (▼) (SET) 2. -
Page 14: How To Use
4 How to Use 4-1. Before using the detector How to Use 4-1. Before using the detector Not only the first-time users but also the users who have already used the product must follow the operating precautions. Ignoring the precautions may damage the detector, resulting in inaccurate gas detection. 4-2. -
Page 15: Precautions For System Designing
4 How to Use 4-3. Precautions for system designing Do not install the detector in a place where maintenance of the detector cannot be performed or where handling the detector involves dangers. Regular maintenance of the detector must be performed. Do not install the detector in a place where the machinery must be stopped when maintenance is performed in its inside, where parts of the machinery must be removed to perform maintenance, or where the detector cannot be removed because tubes or racks prevent access to it. - Page 16 4 How to Use 4-3. Precautions for system designing Proper use of alarm contact The alarm contact of the detector is used to transmit signals to activate an external buzzer, an alarm lamp or a rotating lamp. Do not use the detector for controlling purpose (e.g., controlling the shutdown valve.) The specifications for the alarm contact of the detector are based on the resistant load conditions.
-
Page 17: How To Install
When closing the lid of the detector, make sure that there is no dust on screw, surfaces of the main body and lid. Then apply grease as specified by RIKEN KEIKI. CAUTION Do not install the detector in a place where maintenance of the detector cannot be performed or where handling the detector involves dangers. -
Page 18: Installation Procedure
Cable gland side WARNING Do not replace parts at your sole discretion but contact RIKEN KEIKI if the transparent window has a crack or the explosion-proof joint surface is abnormal, or the clamping screw or bolt is changed, lost etc. - Page 19 4 How to Use 4-5. Installation procedure NOTE ・Our company-specified grease : BARRIERTA JFE 552 (manufactured by NOK KLUBER) If you can not prepare the specified grease, use one that meets the following requirements. 1. Material does not harden due to deterioration 2.
-
Page 20: How To Wire
4 How to Use 4-6. How to wire 4-6. How to wire CAUTION Be careful not to damage the internal electronic circuit when wiring. In addition, be careful not to apply stresses on the detector when (overweight) cables are installed. ... - Page 21 4 How to Use 4-6. How to wire NOTE The following table shows an example of overall outer diameters of cables. Use them for reference. The overall outer diameters must be checked because they somewhat vary between manufacturers. Number of core CVV 1.25 mm CVV 2 mm CVVS 1.25 mm...
- Page 22 4 How to Use 4-6. How to wire CAUTION The specified bare wire length must be observed when the wire insulation is peeled off. Improper clamping of the wire due to a shorter bare wire length may cause defective electrification or heating.
- Page 23 Use ring terminals to connect the grounding terminal with the ground and use the grounding wire with cross-sectional area of 4 mm or more for the external grounding terminal. <Wiring Example> Connecting to the indicator SD-1 1 2 3 4 5 RM-5003, etc. +24 V Connecting to the upper unit (DCS, PLC)
-
Page 24: How To Operate
5 How to Operate 5-1. Preparation for start-up How to Operate 5-1. Preparation for start-up Before supplying power, read and understand the following precautions. Ignoring these precautions may cause an electric shock or damage the detector. Connect the detector to a grounding circuit. ... -
Page 25: How To Start The Detector
5 How to Operate 5-3. How to start the detector WARNING When the detector enters other mode from the detection mode while an alarm is activated, the alarm is reset. 5-3. How to start the detector Before supplying power (24 VDC) to the detector, check that the detector is installed properly. ... -
Page 26: Modes
5 How to Operate 5-4. Modes 5-4. Modes Details on each mode are provided as follows. CAUTION Do not change the settings if not necessary. Changing the settings without understanding the specifications may cause malfunctions. Mode Item LED display Details Detection Normal state... -
Page 27: User Mode
5 How to Operate 5-5. User mode 5-5. User mode WARNING After the adjustment is completed, never fail to press MENU/ESC key to return to the detection mode. (If the detector remains in the user mode, it automatically returns to the detection mode in ten hours.) Show Various Settings This is not typically used by the user. - Page 28 5 How to Operate 5-5. User mode <Zero Adjustment "1-1"> This is used to perform the zero adjustment. NOTE If the zero calibration failed since the zero point was significantly fluctuated from around zero, it returns to 1-1 after FAIL rather than PASS is displayed. In this case, the zero adjustment has not been completed. ...
-
Page 29: How To Exit
5 How to Operate 5-6. How to exit <Setting Display "1-2"> Display various setting values. Press SET key. AL.: The contact is activated due to the gas alarm. FAU.: The contact is activated due to the fault alarm. A.orF.: The contact is activated due to the gas alarm or the fault alarm. -
Page 30: Operations And Functions
6 Operations and Functions 6-1. Gas alarm activation Operations and Functions 6-1. Gas alarm activation Gas alarm: Activated when the concentration of detected gas reaches or exceeds the alarm setpoint value. <<Auto-Reset>> NOTE The alarm setpoint is factory-set. Although the alarm delay time (standard: 2 seconds) works in the detector to prevent a false activation, it can be cancelled if not needed. -
Page 31: Fault Alarm Activation
6 Operations and Functions 6-2. Fault alarm activation <Response to Gas Alarm> A gas concentration value exceeds the alarm setpoint When a gas alarm is triggered, take actions in accordance with your management rules of gas alarm. Normally, take the following actions. ... -
Page 32: External Output Operation
6 Operations and Functions 6-4. External output operation 6-4. External output operation Signal Transmission System Electric current transmission (non-isolated) 4 – 20 mA Transmission Path CVVS Transmission Distance CVVS 1.25 mm2(AWG16): Within 1.25km CVVS 2.0 mm2(AWG14): Within 2.0km Connection Load Resistance Below 300 Ω... -
Page 33: Other Functions
6 Operations and Functions 6-5. Other functions 6-5. Other functions <Suppression Function> The sensors used with the detector are influenced by environmental changes (temperature, humidity, and other characteristics) or interference gases (interference characteristics) in no small measure, which affects the reading. Therefore, the reading might be fluctuated around zero even in a normal environment. This function obscures influences by environmental changes and interference gases around zero that have no meaning for your management rules of gas alarm. -
Page 34: Maintenance
7 Maintenance 7-1. Maintenance intervals and items Maintenance This is an important instrument for the purpose of safety. To maintain the performance of the detector and improve the reliability of safety, perform a regular maintenance. 7-1. Maintenance intervals and items ... - Page 35 7 Maintenance 7-1. Maintenance intervals and items Main Services Power Supply Checks the power supply voltage. Check Verifies that the power lamp lights up. (Verifies that relevant points can be identified on the system.) (When a UPS (uninterruptible power system) is used, checks the operation with the UPS (uninterruptible power system).) Concentration Verifies that the concentration display value is zero (or 20.9 vol% on the oxygen deficiency...
-
Page 36: Proof Test
If do not perform Proof Test, it will decrease SIL. 7-3. Gas calibration method Perform a gas calibration in each mode (zero adjustment <<SD-1>> mode and span adjustment mode) using the calibration gas. Zero adjustment gas Span adjustment gas (collected in a gas sampling bag) ... - Page 37 7 Maintenance 7-3. Gas calibration method Press SET key. Current Concentration Value Display Press SET key to perform the zero adjustment. Under Zero Adjustment (CAL. is displayed) Wait for a while until the adjustment is completed. Zero Adjustment Completed It automatically returns to 2-1 after PASS is displayed.
- Page 38 7 Maintenance 7-3. Gas calibration method <Span Adjustment "2-2"> This is used to perform the span adjustment. CAUTION Before starting the span adjustment, provide the detector with the span adjustment gas and wait until the indicator is stabilized. Press SET key. Gas Introduction Introduce a gas, and then press SET key when the reading is stabilized.
-
Page 39: Parts Replacement
RIKEN KEIKI. (6) After sensor replacement, turn on the power and warm – up, then do the zero - point adjustment and span adjustment by [7-3．Gas calibration method]. - Page 40 The gas calibration using the standard gas is required after the sensor is replaced. Please request it to our overseas sales department or local representatives. Grease specified by RIKEN KEIKI : BARRIERTA JFE 552 (manufactured by NOK KLUBER) If you can not prepare the specified grease, use one that meets the following requirements.
-
Page 41: Storage, Relocation And Disposal
8 Storage, Relocation and Disposal 8-1. Procedures to store the detector or leave it for a long time Storage, Relocation and Disposal 8-1. Procedures to store the detector or leave it for a long time The detector must be stored under the following environmental conditions. ... -
Page 42: Troubleshooting
9 Troubleshooting 9 Troubleshooting Troubleshooting The troubleshooting does not explain the causes of all the malfunctions which occur on the detector. This simply helps to find the causes of malfunctions which frequently occur. If the detector shows a symptom which is not explained in this manual, or still has malfunctions even though remedial actions are taken, please contact our overseas sales department or local representatives. - Page 43 9 Troubleshooting 9 Troubleshooting <Abnormalities of Readings> Symptoms Causes Actions Drifting of sensor Perform the zero adjustment. output Disturbances by interference gases, such as solvents, cannot be eliminated completely. Presence of For information on actions, such as removal filter, please interference gas contact our overseas sales department or local The reading rises...
-
Page 44: Product Specifications
10 Product Specifications 10-1. List of specifications Product Specifications 10-1. List of specifications <ATEX/IECEx Specifications> Model SD-1 Type TYPE GP S Detection principle Catalytic combustion type Gas to be detected Combustible gas Concentration display Seven-segment LED (four-digit) Detection range 0 - 100% LEL Display resolution 0.5% LEL... - Page 45 10 Product Specifications 10-1. List of specifications Weight Approx. 2.0 kg Outer color Munsell 7.5BG5/2 Outline Drawings Adapter A (NPT1/2) - 43 -...
- Page 46 10 Product Specifications 10-1. List of specifications <TIIS Specifications> Model SD-1 Type TYPE GP S Detection principle Catalytic combustion type Gas to be detected Combustible gas Concentration display Seven-segment LED (four-digit) Detection range 0 - 100% LEL Display resolution 0.5% LEL...
- Page 47 10 Product Specifications 10-1. List of specifications Outline Drawings Cable gland (G3/4) - 45 -...
-
Page 48: Detection Principle
10 Product Specifications 10-2. Detection principle 10-2. Detection principle [Catalytic Combustion Type] When a combustible gas burns on the surface of a oxidation catalyst, the catalytic combustion type sensor considers resultant combustion heat as temperature and resistance changes in the platinum wire coil, and measures their gas concentrations. -
Page 49: Definition Of Terms
11 Definition of Terms 11 Definition of Terms Definition of Terms Catalytic This is a principle of the sensor installed in the Type GP. combustion type See "10-2. Detection principle" for details. Output from the detector head fluctuates for a while after turning on the power. Initial clear This is a function to prevent triggering alarm during that time. - Page 50 Revision History Issue Revision details Issue date First issue 2/16/2018 Declaration of Conformity 12/23/2019 Declaration of Conformity 4/1/2020 Safety information, Declaration of Conformity 8/1/2020 Safety information, Declaration of Conformity 8/21/2020 Declaration of Conformity 11/12/2021...
