- Page 1 Instructions for use MULTIflex LED coupling 460 LED - 1.007.3201...
- Page 2 Manufacturer: Distributed by: KaVo Dental GmbH KaVo Dental GmbH Bismarckring 39 Bismarckring 39 88400 Biberach 88400 Biberach Germany Germany Phone +49 7351 56-0 www.kavo.com Fax +49 7351 56-1488...
-
Page 3: Table Of Contents
Instructions for use MULTIflex LED coupling 460 LED - 1.007.3201 Table of contents Table of contents 1 User instructions ....................... 2 Safety..........................2.1 Infection hazard ......................7 2.2 Electrical shock......................7 2.3 Use ..........................7 2.4 Technical condition ......................7 2.5 Accessories and combination with other equipment............ -
Page 4: User Instructions
MULTIflex couplings are registered trademarks of KaVo Dental GmbH. All other trademarks are property of their respective owners. KaVo Original Factory Repair In the event of a repair, please ship your product to the KaVo Original Factory Repair using www.kavobox.com. KaVo Technical Service... - Page 5 Instructions for use MULTIflex LED coupling 460 LED - 1.007.3201 1 User instructions Serial number Manufacturer Manufacturing date Note: Please note accompanying documents Follow the electronic instructions for use HIBC Code CE mark for medical devices Medical device, labelling of medical devices...
- Page 6 Instructions for use MULTIflex LED coupling 460 LED - 1.007.3201 1 User instructions CAUTION In cases which – if not prevented – can lead to minor or moderate injury. CAUTION In cases which – if not prevented – can lead to material damage.
-
Page 7: Safety
4 Reprocess the product and accessories appropriately before disposal. 2.2 Electrical shock Connecting a non-KaVo system to the medical device can lead to electrical shock and injury to patient, user and third parties. 4 During installation and operation of the product on treatment devices and equipment from other manufacturers, comply with the provisions of "Protec-... -
Page 8: Accessories And Combination With Other Equipment
Define the service interval depending on the frequency of use. As a result of the use of NON-KaVo original spare parts during the repair, parts such as covers may become undone and injure the patient, user or other people. -
Page 9: Disposal
2.8 Disposal This product is subject to the EC directive governing waste electrical and elec- tronic devices and must be submitted to special disposal in Europe. 4 For further information, please contact KaVo or a specialised dental dealer. 9 / 28... -
Page 10: Description Of The Product

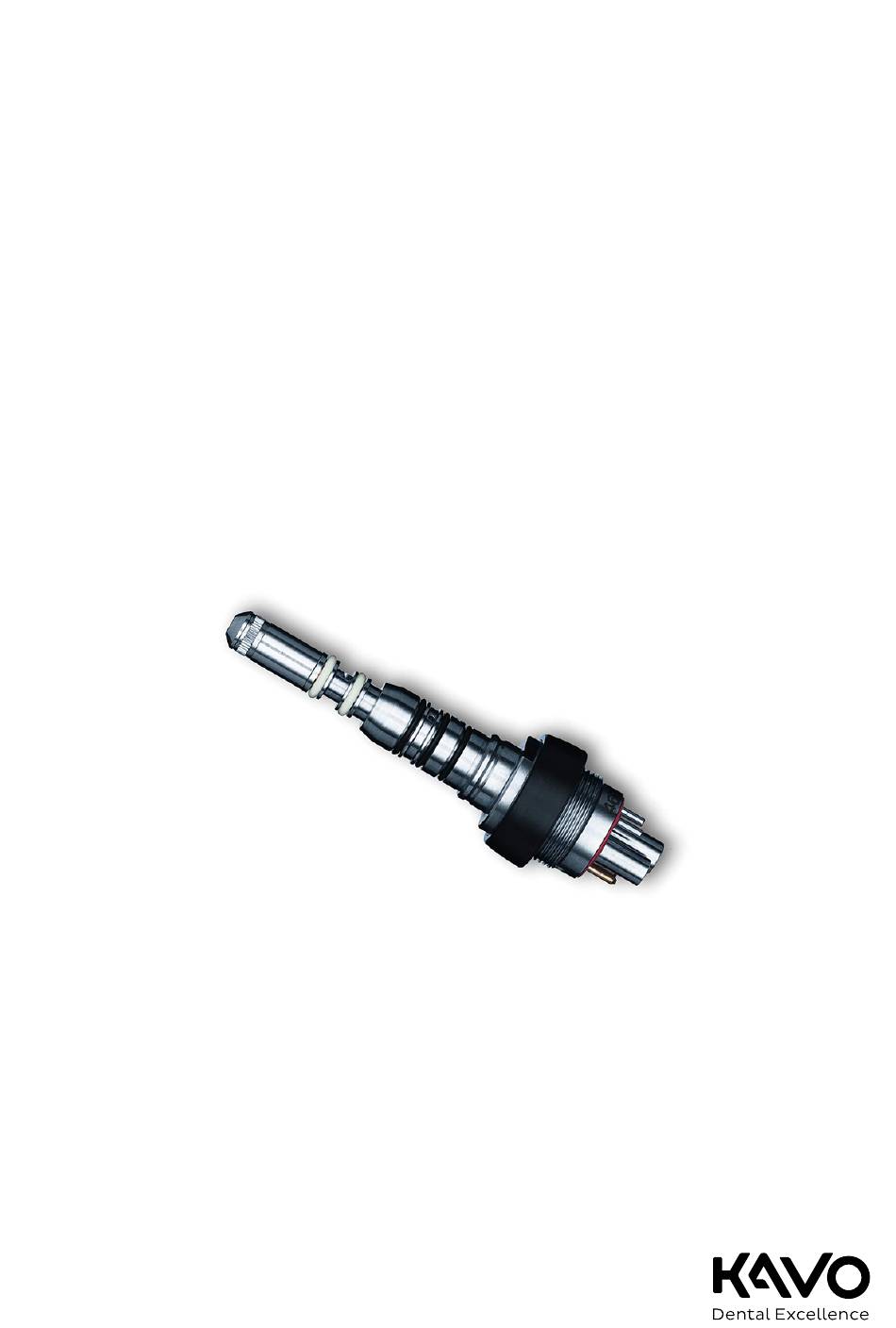

Instructions for use MULTIflex LED coupling 460 LED - 1.007.3201 3 Description of the product | 3.1 Intended use 3 Description of the product MULTIflex LED coupling 460 LED (Mat.-Nr. 1.007.3201) The MULTIflex coupling transfers the following media from a dental treatment centre to dental instruments: ▪... -
Page 11: Technical Specifications
4 1065 / 1060: If the KaVo MULTIflex coupling is used on these units, have a technician adjust the voltage. 4 E80 / E70 / E50 / 1058 / 1080 / 1066 / 1062: The KaVo MULTIflex coupling can be used on these units with any further measures being required. -
Page 12: Transportation And Storage Conditions
Instructions for use MULTIflex LED coupling 460 LED - 1.007.3201 3 Description of the product | 3.3 Transportation and storage conditions 3.3 Transportation and storage conditions CAUTION Startup after refrigerated storage. Malfunction. 4 Prior to startup, strongly refrigerated products must be allowed to warm up to a temperature of 20 °C to 25 °C (68 °F to 77 °F). -
Page 13: Startup And Shut Down
Instructions for use MULTIflex LED coupling 460 LED - 1.007.3201 4 Startup and shut down 4 Startup and shut down WARNING Hazard from contaminated products. Infection hazard to the dentist and patient. 4 Prior to initial startup and after each use, reprocess the product and ac- cessories. -
Page 14: Operation
4 Re-tighten with the enclosed wrench. 4 Apply a small amount of KaVo Spray to the O-rings on the supply hose. The coupling remains screwed onto the hose. 5.2 Removing the coupling from the hose NOTE The coupling remains screwed to the hose, use the wrench to remove it. -
Page 15: Pulling The Handpiece Off
Instructions for use MULTIflex LED coupling 460 LED - 1.007.3201 5 Operation | 5.4 Pulling the handpiece off 4 Check the secure fit of the (LUX) instrument on the coupling by pulling on it. 5.4 Pulling the handpiece off 4 Grasp the coupling and pull the instrument forward while twisting it slightly. -
Page 16: Checking For Malfunctions And Troubleshooting
Stop working if the O-ring is missing or damaged. 4 If there is no O-ring on the motor coupling, replace the O-ring. 4 If the intensity of the KaVo MULTI LED lamp is low, increase the cold light intensity on the unit. -
Page 17: Replacing The O-Rings
Improper care of the O-rings. Malfunction or complete failure. 4 Do not use Vaseline or other grease or oil. 4 Spray a lint-free cloth with KaVo Spray and apply it to the O-rings on the coupling. NOTE If the connection to the instrument is not leak-proof, replace all O-rings. - Page 18 6 Checking for malfunctions and troubleshooting | 6.2 Troubleshooting 4 Push the O-ring to the front, and remove it. 4 Spray a lint-free cloth with KaVo Spray, apply it to the new O-rings and in- sert them in the recesses.
-
Page 19: Reprocessing Steps In Accordance With Iso 17664-1 / Iso 17664-2
Malfunction and material damage. 4 Reprocess it in a washer disinfector only. KaVo recommends the following products based on the compatibility of the ma- terials. The microbiological efficacy must be ensured by the disinfectant manu- facturer and proven by an expert opinion. -
Page 20: Automated Reprocessing
Instructions for use MULTIflex LED coupling 460 LED - 1.007.3201 7 Reprocessing steps in accordance with ISO 17664-1 / ISO 17664-2 | 7.3 Automated reprocessing 7.3 Automated reprocessing CAUTION Never reprocess the medical device with chloride-containing products. Malfunction and material damage. -
Page 21: Preparation For Automated Internal And External Cleaning As Well As Internal And Ex
NOTE Please comply with the instructions for use of the washer disinfector. 4 In order not to affect the KaVo medical device, make sure that the product is dry on the inside and outside after completion of the cycle. 7.4 Care products and systems - Servicing CAUTION Improper care. -
Page 22: Packaging
Instructions for use MULTIflex LED coupling 460 LED - 1.007.3201 7 Reprocessing steps in accordance with ISO 17664-1 / ISO 17664-2 | 7.5 Packaging 7.5 Packaging NOTE The sterile goods package must be large enough to accommodate the product without stretching the packaging. The quality and use of the packaging of the... -
Page 23: Components And Miscellaneous
Instructions for use MULTIflex LED coupling 460 LED - 1.007.3201 8 Components and miscellaneous 8 Components and miscellaneous Available from specialised dental dealers. Components Description Material number KaVo MULTI LED lamp 1.007.5372 Miscellaneous Description Material number 0.411.1563 Spare washer 0.553.5262 O-ring 6.65x0.8... -
Page 24: Terms And Conditions Of Warranty
12 months from the date of the invoice, subject to the following conditions: With regard to justified complaints KaVo grants warranty in the form of a free of charge repair or delivery of a replacement. Other claims of any kind whatso- ever, in particular with respect to compensation, are excluded.
