Cable Specifications

Cable
10BASE-T
100BASE-TX
1000BASE-T

1000BASE-T Pin Assignments

Caution: DO NOT plug a phone jack connector into any RJ-45 port.

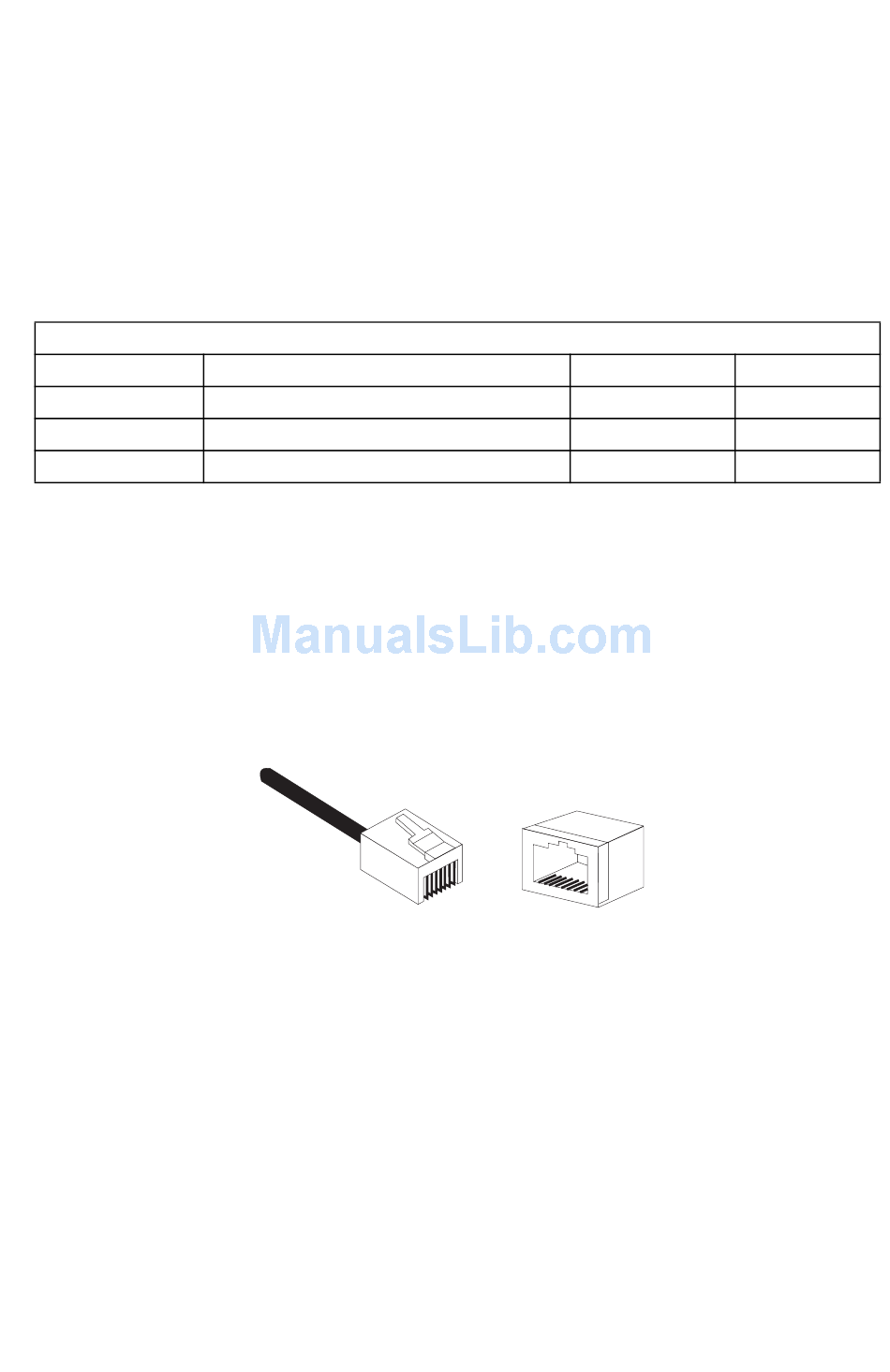

The table below shows the 1000BASE-T MDI and MDI-X port pinouts.
These ports require that all four pairs of wires be connected. Note that for
1000BASE-T operation, all four pairs of wires are used for both transmit
and receive.
Use 100-ohm Category 5 or 5e unshielded twisted-pair (UTP) or shielded
twisted-pair (STP) cable for 1000BASE-T connections. Also be sure that
the length of any twisted-pair connection does not exceed 100 meters
(328 feet).
Cable Types and Specifications
Type
2-pair Cat. 3 or better 100-ohm UTP
2-pair Cat. 5 or better 100-ohm UTP
4-pair Cat. 5 or better 100-ohm UTP
Use only twisted-pair cables with RJ-45 connectors that
conform with FCC standards.
Max. Length
100 m (328 ft)
100 m (328 ft)
100 m (328 ft)
