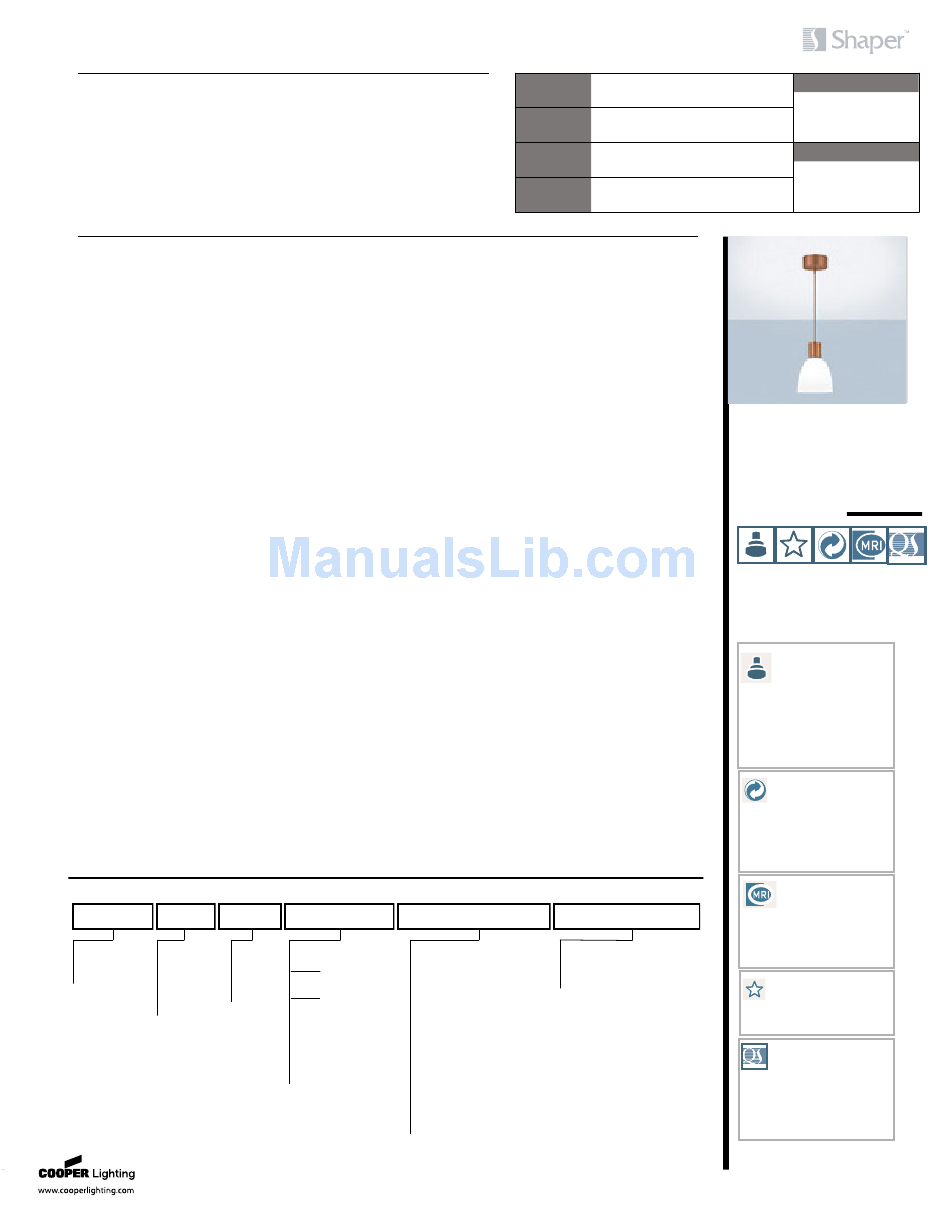

Cooper Lighting Shaper 416 SERIES Specification

DESCRIPTION
416 Luminous Shade Pendant.
SPECIFICATION FEATURES
Material/Mounting
Solid aluminum or solid copper
materials. Matte white acrylic
diffuser. Supplied with an SJ cord
assembly. SJ Cord (Standard): 4
1/2" x 1/2" canopy for incandescent
or 6 1/4" x 2 7/8" canopy for CFL.
One 3 (INC) or 5 (CFL) conductor
white SJ cord with a standard
overall hang height of 24" (OA),
minimum 18" (OA) with either a 4
1/2" x 1/2" canopy for incandescent
or a 6 1/4" x 2 7/8" canopy for CFL.
Maximum (OA) for CFL is 10'.
Optional clear SJ cord (CSJ).
Finish
Standard: Unlacquered Natural
Aluminum (NA) [Sustainable
Design]. Premium: Matte White
(MW), Lacquered Satin Aluminum
(SAL), Satin Copper (SCP),
Polished Copper (PCP) or Custom
Color (CC).
Optics
Refer to www.shaperlighting.com
for complete photometrics.
ORDERING INFORMATION
Sample Number: 416-INC/1/100-120V-PCP-24
Series Lamp Voltage
416 Luminous = CFL/1/26 120V
Shade
CFL/1/32 277V
CFL/1/42 347V
INC/1/100
Notes:
1
Available with CFL only.
2
Consult the factory for available options.
3
Supplied by others.
4
For stem mounting only. Specify up to 45°.
Ballast
Integral electronic HPF, multi-volt
120/277V (347V Canada), thermally
protected with end-of-life circuitry
to accommodate the specified
lamp wattage.
Lamp/Socket
One (1) 26W, 32W (GX24q-3) or
42W (GX24q-4) 4-pin triple CFL
lamps or one (1) 100W A-19 lamps.
CFL socket injection molded
plastic. INC socket fired ceramic
rated for 660W-250V. Lamps
furnished by others.
Installation
Supplied with either a circle strap
mounting canopy or bar strap that
mounts to a 4" J-box or plaster
ring. Integral safety cable provided
with option stem.
Options
Sloped Ceiling Adaptor for stem -
Specify up to 45° (SCA), Single
Stem (1S), Perched Single Stem
Two Shade (PSS2SD), Perched
Finish Options
1S Single Stem =
Standard
1 NA Natural Aluminum =
CSJ Clear SJ Cord =
1
Premium
PSS2SD
CC Custom Color =
MW Matte White =
PSS3SD
PCP Polished Copper =
PSS4SD
SAL Lacquered Satin =
Aluminum
DL Damp Location =
SCP Satin Copper =
DM CFL Dimming Ballast =
REM Remote Emergency
SCA Sloped Ceiling Adapter
Specifications and Dimensions subject to change without notice.
Consult your representative for additional options and finishes.
Catalog #
Project
Comments
Prepared by
Single Stem Three Shade
(PSS3SD), Perched Single Stem
Four Shade(PSS4SD), Clear SJ
Cord (CSJ). Dimming ballast -
Contact factory for ballast options
(DM), Remote Emergency Battery -
Supplied by others (REM), MRI
Applications (INC) Contact factory,
Regressed Lense - Contact Factory,
Damp Location (DL): All Painted
Finishes only. Energy Star Rating -
Contact Factory.
Labels
U.L. and C.U.L approved for indoor
and damp location. See options
for damp location finishing
requirements.
Modifications
Shaper's skilled craftspeople with
their depth of experience offer the
designer the flexibility to modify
standard pendant luminaires for
project specific solutions. Contact
the factory regarding scale options,
unique finishes, mounting,
additional materials/colors, or
decorative detailing.
Suspension Height
24"
or specify
= Perched Single
Stem Double Shade
= Perched Single
Stem Triple Shade
= Perched Single
Stem Four Shade
2
3
=
Battery
4
=
shaperlighting.com
Type
Date
416 SERIES
Pendant Luminaire
Starter Collection
Luminous Shade
STARTER
COLLECTION
Shaper's exclusive Starter Collection fixtures
are featured throughout the Shaper product
line. The concept of offering highly styled,
affordable fixtures was introduced over
fourteen years ago and has become one of
our fastest growing lines. The design
premise, basic construction, clean lines
and unadorned shapes are highly desirable
in modern architectural environments.
SUSTAINABLE
DESIGN
Shaper has a long-standing history of
offering environmentally-friendly fixtures.
The copper and bronze alloys used in our
exterior luminaires feature up to 98% re-
cycled content, contribute less undesirable
air emissions compared to painted alumi-
num and are easy to recycle.
MAGNETIC
RESONANCE
IMAGING (MRI)
Lighting fixtures for MRI facilities are
specialized and unique, requiring non-
ferrous construction. Fluorescent fixtures
cannot be used due to the ferrous parts in
ballasts and lampholders. Modified incan-
descent fixtures meet the requirements.
ENERGY
STAR
Shaper now offers a wide variety
of fixtures that can be provided
with an Energy Star Rating.
QUICK SHIP (QS)
Shaper's Quick Ship program
features over thirty-four fixtures
with finish options such as Satin
Chrome, Natural Aluminum and
Satin Brass and a wide variety of
lamp selections. All products ship
in five days from receipt of order.
Refer to the Icon Legend
Link on shaperlighting.com.
