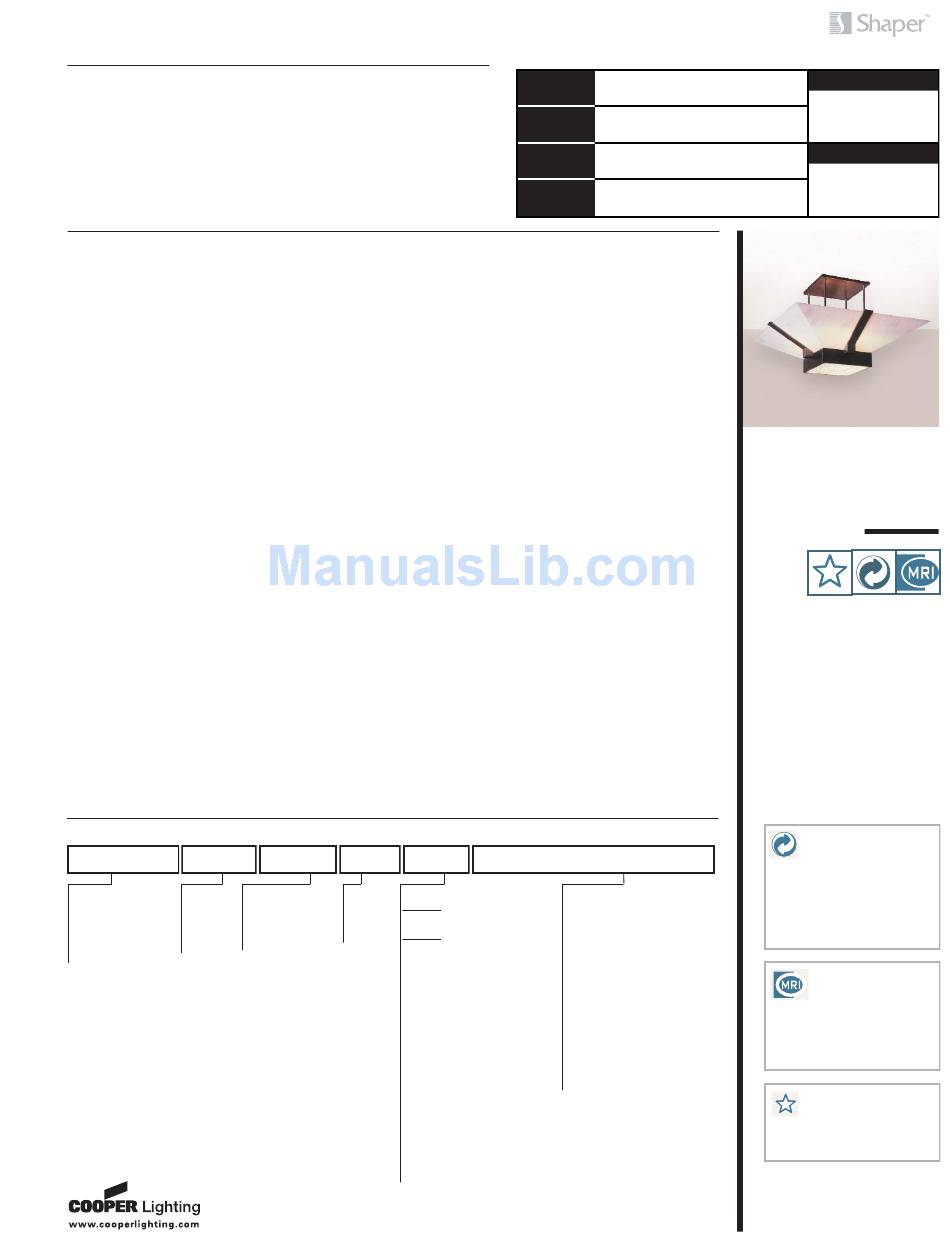

Cooper Lighting Shaper 240 SERIES Specification Sheet

Cooper Lighting Shaper 240 SERIES Specification Sheet

Cooper lighting surface luminaire specification sheet

Advertisement

Quick Links

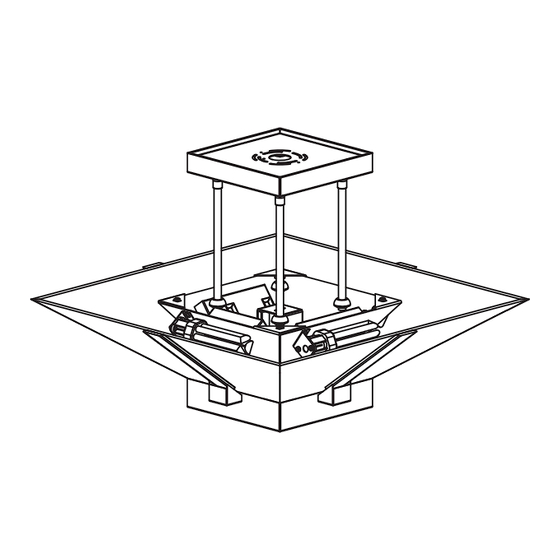

D E S C R I P T I O N
240 "Craftsman" Luminous Flared Square features direct/indirect
illumination with a downlight.
S P E C I F I C AT I O N F E AT U R E S
M a te ri a l
Painted and plated cold rolled
steel, aluminum, brass or solid
bronze trim with matte white
acrylic panels. 1/2" Aluminum
cube louver.
Four Stem (Standard): Four 1/2"
stems with a standard height of
18" (OA), 14" (OA) minimum.
Maximum overall hang height
for a one piece assembly is 5'
(OA). Contact the factory for
lengths over 5' (OA). Specify SCA
for sloped ceilings up to 45°.
F i n i s h
Standard: Matte White (MW).
Premium: Satin Chrome (SC),
Polished Chrome (PC), Satin
Brass (SB), Polished Brass (PB),
Oxidized Brass (OBRS), Oxidized
Copper (OCP), Gun Metal (GNM),
Natural Aluminum
(NA)(Sustainable Design),
Lacquered Satin Aluminum
(SAL), Satin Copper (SCP),
Polished Copper (PCP), Satin
Nickel (SN), Polished Nickel (PN),
Lacquered Satin Chrome (SCL),
Lacquered Satin Nickel (SNL) or
Custom Color (CC). Note: The
cube cell louver will match the
specified finish.
O p t i c s
Refer to
O R D E R I N G I N F O R M AT I O N
Sample Number: 240-CFL/4/32-PARH/1/75-120V-OBRS
Series
Lamp
240
=
Craftsman
CFL/4
(26/32W-
Surface
Luminous
Quad)
Flared Square
INC/4/60
Luminaire
Notes:
1
Interior applications only.
2
Available with C FL only.
3
Available with C FL & MH only.
www.shaperlighting.com for
complete photometrics.
B a l l a s t
Integral electronic CFL HPF ,
multi-volt 120/277V (347V
Canada), thermally protected
with end-of-life circuitry to
accommodate the specified lamp
wattage. Metal halide ballasts are
electronic HPF , multi-volt for the
specific lamp wattage.
L a m p / S o cke t
Four (4) 26W or 32W (G24q-3)
4-pin quad CFL lamps or four (4)
60W frosted T-10 incandescent
lamps. Downlight: One (1)
50WPAR20H, 75WPAR30H (Long
neck), 20WPAR20MH,
20WPAR30LMH, 39WPAR20MH,
39WPAR30LMH, or
70WPAR30LMH. CFL socket
injection molded plastic. INC
socket fired ceramic rated for
660W-250V. MH socket fired
ceramic pulse-rated 4KV. Lamps
furnished by others.
I n s t a l l a t i o n
Supplied with either strap
mounting canopy or bar strap
that mounts to a 4" J-box or
plaster ring. Integral safety cable
provided. Adjustable lamp
socket.
Voltage
Finish
DL Lamp Options
120V
Standard
PARH/1/75
3
MW Matte White
=
PARMH/1/20
277V
PARMH/1/39
2
347V
Premium
PARMH/1/70
CC Custom Color
=
GNM Gun Metal
NA Natural Aluminum
=
PB Polished Brass
=
PC Polished Chrome
=
PCP Polished Copper
=
PN Polished Nickel
=
OBRS Oxidized Brass
OCP Oxidized Copper
=
SB Satin Brass
=
SC Satin Chrome
=
SCP Satin Copper
=
SN Satin Nickel
=
SCL Lacquered Satin Chrome
=
SNL Lacquered Satin Nickel
=
SAL Lacquered Satin Aluminum
=
Specifications and dimensions subject to change without notice.
Consult your representative for additional options and finishes.
Catalog #
Project
Comments
Prepared by
O p t i o n s
Hand Painted Faux Alabaster
Panels (FP), Hand Painted Faux
Linen Panels (LNP), Sloped
Ceiling Adaptor - Specify up to
45° (SCA), CFL Dimming Ballast -
Contact the factory for ballast
options (DM). Damp Location
(DL): All painted finishes,
Lacquered Satin Chrome (SCL)
and Lacquered Satin Nickel (SNL)
finishes only. MRI Applications
(INC only) - Contact Factory.
Integral Emergency Battery - for
2-lamps (IEM-1), for 4-lamps
(IEM-2). Energy Star Rating -
Contact Factory.
L a b e l s
U.L. and C.U.L. approved for
indoor and damp location. See
options for damp location
finishing requirements.
M o d i f i c a t i o n s
Shaper's skilled craftspeople
with their depth of experience
offer the designer the flexibility
to modify standard surface
luminaires for project specific
solutions. Contact the factory
regarding scale options, unique
finishes, mounting, additional
materials/colors, or decorative
detailing.
Options
SCA = Sloped Ceiling
Adaptor
DL Damp Location
=
DM CFL Dimming
=
Ballast
=
=
Hand-Painted
FP
Faux Alabaster
Panels
LNP Hand Painted
=
Faux Linen
Panels
IEM1 Integral Emergency
=
=
Battery (for 2 lamps)
IEM2 Integral Emergency
=
Battery (for 4 lamps)
" C r a f t s m a n " L u m i n o u s
Shaper has a long-standing history
of offering environmentally-friendly
fixtures. The copper and bronze alloys
used in our exterior luminaires feature
up to 98% recycled content, contribute
less undesirable air emissions compared
1
to painted aluminum and are easy to
recycle.
2
Lighting fixtures for MRI facilities are
specialized and unique, requiring non-
ferrous construction. Fluorescent fixtures
cannot be used due to the ferrous parts in
ballasts and lampholders. Modified incan-
descent fixtures meet the requirements.
Shaper now offers a wide variety of
fixtures that can be provided with an
Energy Star Rating.
Refer to the Icon Legend
Link on shaperlighting.com.
shaperlighting.com
Type
Date
240 SERIES
S u r f a c e L u m i n a i r e
F l a r e d S q u a r e
SUSTAINABLE
DESIGN
MAGNETIC
RESONANCE
IMAGING (MRI)
ENERGY
STAR
ADS070277
