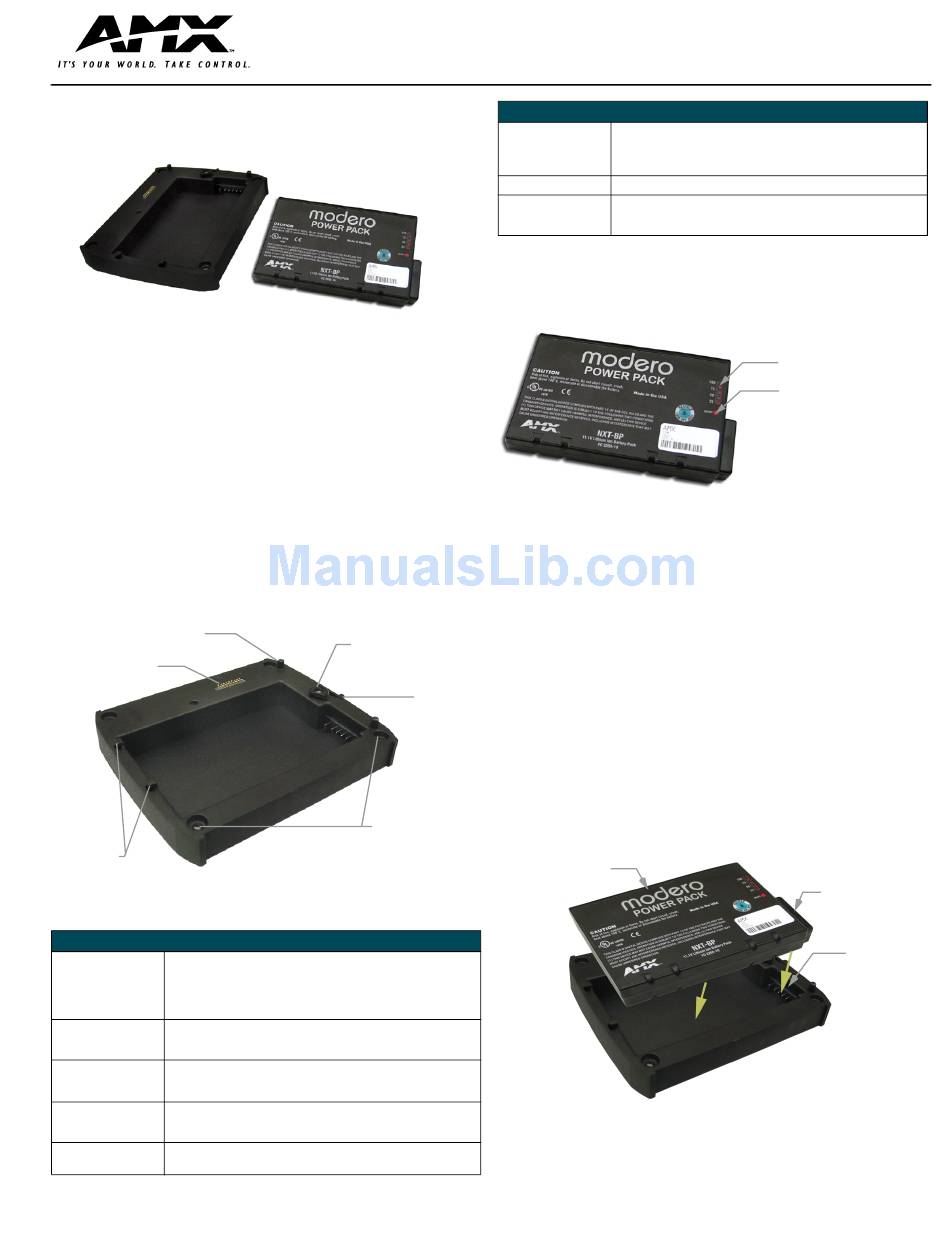

AMX NXA-BASE/1 Quick Start Manual

For more detailed installation, configuration, programming, file transfer, and
operating instructions, refer to the touch panel's instruction manual,
available on-line at www.amx.com.
NXA-BASE/1
Battery Base
FIG. 1
NXA-BASE/1 Kit (consists of one BASE/1 and a single NXT-BP)
ATTENTION!
Verify that the Modero panel is using the latest firmware. Verify that the
battery base is loaded with the latest NXA-BASE/1 firmware. These recent
builds of firmware incorporate the necessary updates for using the Modero
with the NXA-BASE/1.
Overview of the NXA-BASE/1 Kit
The NXA-BASE/1 Kit (FG2255-05K) contains one battery and one battery
base. The NXA-BASE/1 (FIG. 2) is a Modero accessory that allows an
NXT-CV7 touch panel to function off the charge from a single internally
connected NXT-BP battery. The base provides both power and battery
information to the panel via the panel interface connector. The NXT-BP
battery can be charged through either the base (only when connected to
the NXT-CV7 touch panel) or through an optional NXT-CHG Modero Power
Station. When used with the optional battery base, the CV7 panels will
charge the battery during full operation.
Alignment
pegs (2)
Panel Interface
connector (male)
Front
Securing
pegs (2)
FIG. 2
NXA-BASE/1 showing Panel Interface and connector locations
Specifications
NXA-BASE/1 Kit Specifications
Dimensions (HWD):
NXA-BASE/1 • 0.93" x 5.96" x 6.89" (2.36 cm x 15.14 cm x 17.51 cm)
(FG2255-05K)
NXT-BP • 0.69" x 3.50" x 5.81" (1.75 cm x 8.89 cm x 14.76 cm)
(FG2255-10)
Power: • NXA-BASE/1: 1.4 A @ 12 VDC (max power draw while charging a
single battery)
• NXT-BP: Voltage - 11.1 Volts (nominal)
Weight: • Base unit: 0.75 lbs (0.34 kg)
• NXT-BP: 1.0 lbs (0.45 kg)
• Base and 1 battery: 1.75 lbs (0.79 kg)
NXA-BASE/1: • Charge time for single depleted battery: ~ 5 - 8 hours
Features: • Must be connected to a Modero unit utilizing a PSN4.4 power supply
(or higher)
NXT-BP Features:
• Battery Usage: 4 to 8 hours (time is usage dependant)
• Charge Capacity: 6300mAh
NXA-BASE/1
NXT-BP
Modero Power Pack
Battery
Back
locking
mechanism
Battery
latch
slider
Insert holes for
NXT-CV7 feet
Modero Battery Base and Accessories
NXA-BASE/1 Kit Specifications (Cont.)
Operating / Storage • Operating Temperature: 0° C (32° F) to 40° C (104° F)
Environment: • Operating Humidity: 20% - 85% RH
• Storage/Discharge Temperature: -20° C (-4° F) to 60° C (140° F)
• Storage Humidity: 5% - 85% RH
Included Accessories: • N/A
Optional Accessories: • NXT-CHG Kit (FG2250-50K):
1 charger and 2 NXT-BP batteries
• NXT-BP batteries (FG2255-10) (additional)
Checking the NXT-BP Charge
1. Press the Battery Life Indicator button (FIG. 3) once to illuminate the
Battery Life LEDs and display the percent charge remaining on the
battery (this indication lasts a few seconds).
FIG. 3
NXT-BP Modero Power Pack (showing Battery Life Indicator and button)
2. Charge the NXT-BP battery by either inserting it into the battery base
or from within the optional NXT-CHG charger (which can sequentially
charge up to two batteries).
Note: It is recommended to fully charge this battery before using it to power
an NXT-CV7 panel.
ATTENTION!
If the 25% LED indicator is blinking, recharge your battery immediately.
This blinking indicates there is less than 5% of a charge remaining on the
battery.
Installation of an NXT-BP into the NXA-BASE/1
The base does not directly connect to a power supply. Instead, it receives
the power necessary to charge the battery from the Modero panel (through
the Panel Interface connector).
1. Install the NXT-BP battery into the base's battery compartment with
the label-side facing up.
2. Align the battery connector with its corresponding battery connector
port (located in the battery compartment shown in FIG. 4).
NXT-BP Battery
FRONT
FIG. 4
Battery installation procedure
3. Carefully insert the NXT-BP into the base until the battery securely fits
onto the Battery Connector Port.
Quick Start Guide
Battery Life (Charge)
Battery Life Indicator
button
Its recommended to
fully charge the
batteries before their
initial use
Battery
Connector
Battery
Connector
Port
