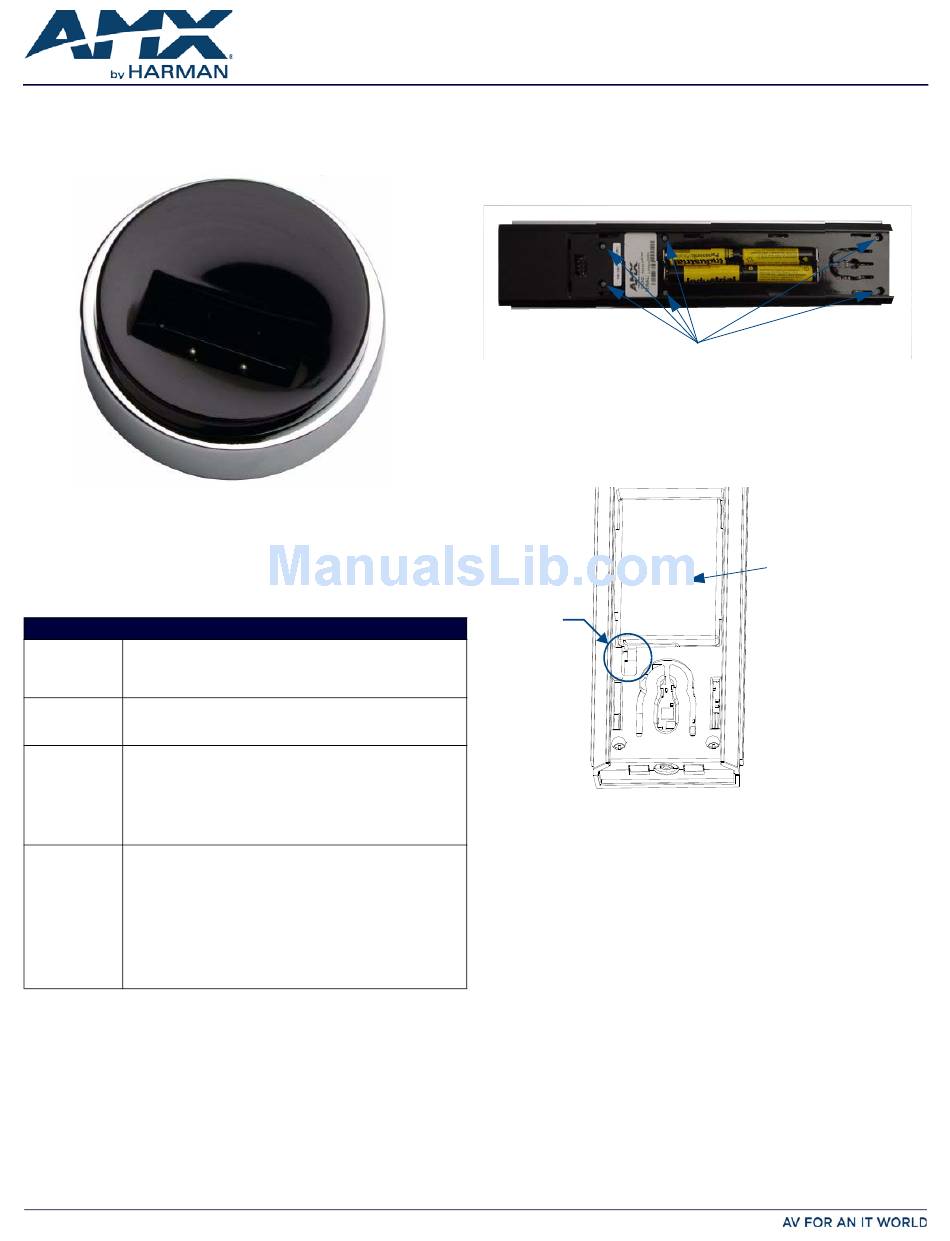

AMX Mio-RCC Quick Start Manual

Mio Remote Charging Base
Elegant and stylish, the R-Series Charging Cradle Kit conveniently charges and stores
Mio remotes so they're always ready to use. The MIO-RCC-KIT includes both the
charging cradle and the rechargeable lithium-ion battery necessary for the MIO R-1 and
MIO R-2 remote controls to use the cradle.
MIO REMOTE CHARGING BASE
FIG. 1
If upgrading the Mio R1 or Mio R2 (FG147-03K), begin with section Installing The
Rechargeable Battery on the Mio R-1 and R-2, otherwise go to Charging The Mio
Remote with the Charging Base (FG147-02) for the Mio R-3 and Mio R-4.
Consult the operation/reference manuals for the Mio R-1, Mio R-2, Mio R-3, or Mio R-4
remotes for more information. These manuals are available at www.amx.com.
Specif ications
The specifications for the Mio remote charging base and kit are as follows:
MIO-RCC REMOTE CHARGING KIT WITH BASE SPECIF ICATIONS
Dimensions (HWD) Charging Base - 1.61 in. x 4.25 in. (height) x (diameter)
(4.09 cm x 10.80 cm)
Lithium Ion Battery - 2.13 in. x 1.38 in. x .28 in. (L x W x D)
Weight • 1.15 lbs (.52 kg) - Remote Charging Cradle
• .15 lbs (.07 kg) - Power Supply
• .06 lbs (.027 kg) - Rechargeable Lithium Battery
Included • Rechargeable Lithium Ion battery (4 hours battery life) Kit only
Accessories:
• Back housing Kit only
• Mio-RCC Charging base (FG147-02) with Power Supply
• Power supply Kit only
Note: Some power supply bricks are equipped with an LED that appears
very dim when no R-series remote is present in the base. This LED lights
up brightly when a remote is in the base and charging.
Other AMX • Mio-RCC Charging Base (FG147-02) with Power Supply
Equipment:
• Mio R-1 (FG147)
• Mio R-2 RF 418 (FG147-418)
• Mio R-2 RF 433 (FG147-433)
• Mio R-3 (FG148-03)
• Mio R-4 (FG148-04)
• Mio-RBP Rechargeable Lithium Ion Battery (FG147-10)
• AXR-RF 418 MHZ RF Receiver (FG782-418)
• AXR-RF 433 MHZ RF Receiver (FG782-433)
• Mio Modero IR Receiver (FG5797-01xx; xx indicates color)
(5.41 cm x 3.45 cm x .71 cm)
Mio-RCC
Rechargeable Upgrade Kit and Charging Base
Installing The Rechargeable Battery on the Mio R-1 and R-2
1. Flip and turn the remote so that the buttons are facing downward and the remote
is upside down.
2. Holding the device in both hands, place both thumbs on the battery door and
push up to slide the battery door free.
3. If present, remove the AAA batteries.
4. Remove the 6 screws identified in FIG. 2 and retain for reassembly.
6 SCREW POINTS OF THE BACK HOUSING FOR THE MIO R-1/R-2
FIG. 2
5. Remove the back housing and discard. A new housing is supplied.
6. Place the new housing on the device so that the rechargeable battery port
connection is now accessible (FIG. 3).
7. Replace the 6 screws removed earlier.
8. Connect the terminal end of the Lithium Ion battery to the port shown in FIG. 3. It
may be necessary to use a thin, blunt object to fully seat the
battery connector within its port.
Rechargeable
Battery
Port Connection
FIG. 3 RECHARGEABLE BATTERY PORT ON THE MIO REMOTE
9. Press the battery between the rubber pads, with the sticker showing in the
housing area of the Mio remote. Confirm that the battery is flush with the bottom
of the battery enclosure on the bottom housing.
10. Replace the battery door and slide to lock it in place.
11. If utilizing the Mio R-1 or Mio R-2, go to section Changing Battery Modes (Mio R-1
and R-2) to configure the new battery type, otherwise, begin charging the battery
per section Charging The Mio Remote with the Charging Base.
QUICK START GUIDE
6 Screw Points
Lithium Ion Battery
