MOBILUS C-MR IP44 User Manual

External receiver
Hide thumbs

Advertisement

Quick Links

Download this manual
User Manual of MOBILUS C-MR IP44
external receiver
www.mobilus.pl
Wersja 1.0ENG, 210401

Advertisement

loading
Need help?

Need help?

Do you have a question about the C-MR IP44 and is the answer not in the manual?

Questions and answers

Related Manuals for MOBILUS C-MR IP44

Summary of Contents for MOBILUS C-MR IP44

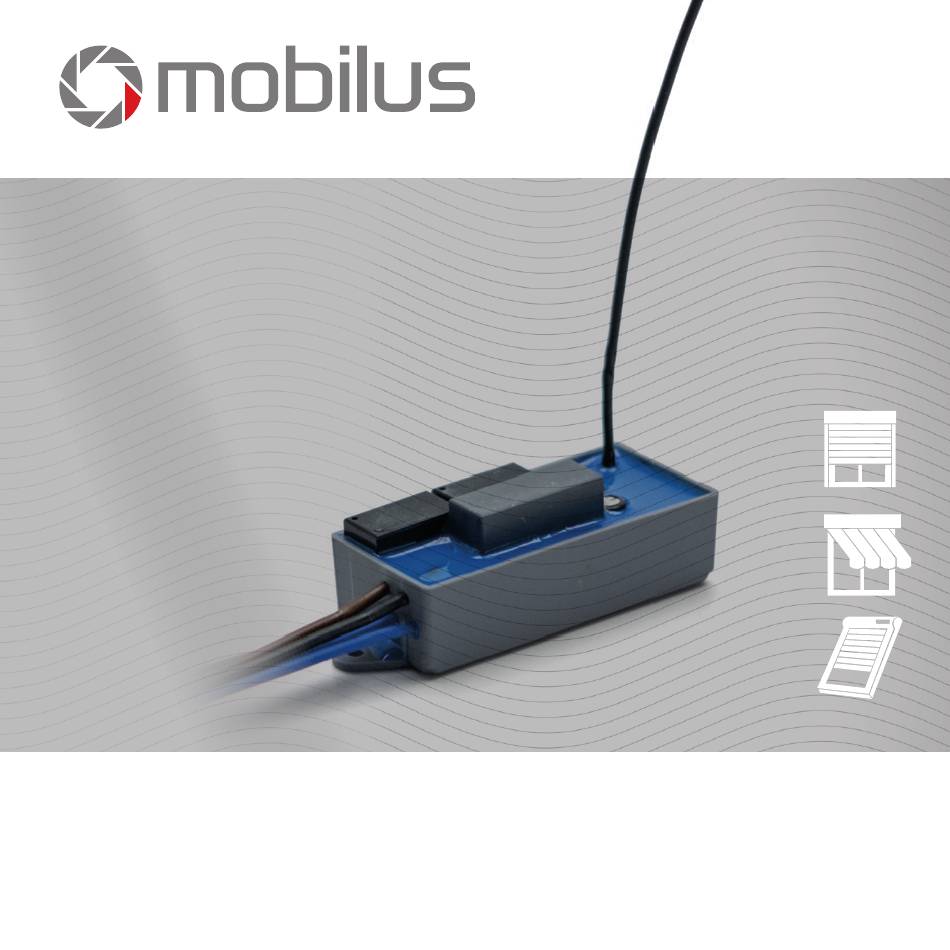

  • Page 1 User Manual of MOBILUS C-MR IP44 external receiver www.mobilus.pl Wersja 1.0ENG, 210401...
  • Page 2 • MOBILUS C-MR module is designed to work with all COSMO / COSMO | 2WAY series remote controls. • The range of the radio control is limited by regulations for maximum power of the remote control and the conditions of the installation of the equipment.
  • Page 3 COSMO | C-MR IP44 modules remote controls will have common MASTER (shared channel). *MASTER - remote control or channel (in the case of a multi-channel remotes) loaded first into the memory of the MOBILUS C-MR IP44 module. Allows you to program further remote controls.
  • Page 4 4. PROGRAMMING OF THE SECOND AND EVERY OTHER REMOTE CONTROL 1. On the MASTER remote control, simultaneously press and hold the STOP and UP until the connected actuator executes one sequence of noticeable and audible micro movements down / up confirming the entrence of the receiver in the PROGRAMMING MODE - Fig.
  • Page 5 5. CHANGING THE DIRECTION OF THE ACTUATOR 1. If you press the UP button on the remote control and the armor goes down, change the direction of rotation of the drive. At the same time, press and hold: a ) on the remote control COSMO | HM, | HB, | G3+, | WT9, | WT buttons STOP and DOWN - Fig.
  • Page 6 6. REMOVAL OF INDIVIDUAL REMOTES (CHANNELS) It is possible to delete only one of the programmed remotes (not for MASTER remote). To do this: 1. On the MASTER, press simultaneously and hold the STOP and UP buttons until the connected actuator executes one sequence of noticeable and audible micro movements down / up, confirming the receiver’s entrance into the programming mode - Fig.
  • Page 7 1. Connect the MOBILUS C-MR IP44 module according to the diagram in - Fig. 7.1 2. Place the MOBILUS C-MR IP44 module in the shutter box. Use the two protruding handles with holes for assembly. 3. Position the antenna properly (as far as possible from metal parts).

  • Page 8: Repeater Function

    8. REPEATER FUNCTION SIGNAL REPEATER - This feature allows you to expand the radio control area. The MOBILUS C-MR IP44 module with the repeater function enabled receives signals from the controller or actuators and passes them forward. Thanks to the furthest located receivers which are not within the controller can receive and transmit information through modules located indirectly.
  • Page 9 11. BI-DIRECTIONAL - OVERLOAD INFORMATION MOBILUS C-MR IP44 transmits information to remotes about overload - for example, it may be related to a housing lock occurring at the time of raising or lowering. Mode is factory-setted - it is possible to turn off.
  • Page 10 CONTINUED 11. BI-DIRECTIONAL - OVERLOAD INFORMATION MASTER Fig. 11 12. PRODUCT DESCRIPTION Cable description: BLUE 1 - neutral; BLUE 2 - neutral; GREY L- phase / power; BLACK L - phase - to the drive; BROWN L - phase - to the drive; The drive is connected to one of the blue (common), black and brown wires.
  • Page 11 13. CONTROL REMOTES - „COSMO” SERIES...
  • Page 12 5 906453 473437 MOBILUS MOTOR Spółka z o.o. 230 V~ 50 Hz ul. Miętowa 37, 61-680 Poznań, PL tel. +48 61 825 81 11, fax +48 61 825 80 52 VAT NO. PL9721078008 www.mobilus.pl W1.1PL, 181128...
