  • Page 1 User Manual of MOBILUS C-ZR external receiver www.mobilus.pl...

  • Page 2: General Information

    • Read the operating manual carefully before use. • MOBILUS C-ZR module should be powered by 230 V ~, 50 Hz. Its installation should only be carried out by persons with electrical qualifications according to the enclosed electrical diagram in accordance with all applicable regulations.

  • Page 3: Product Description

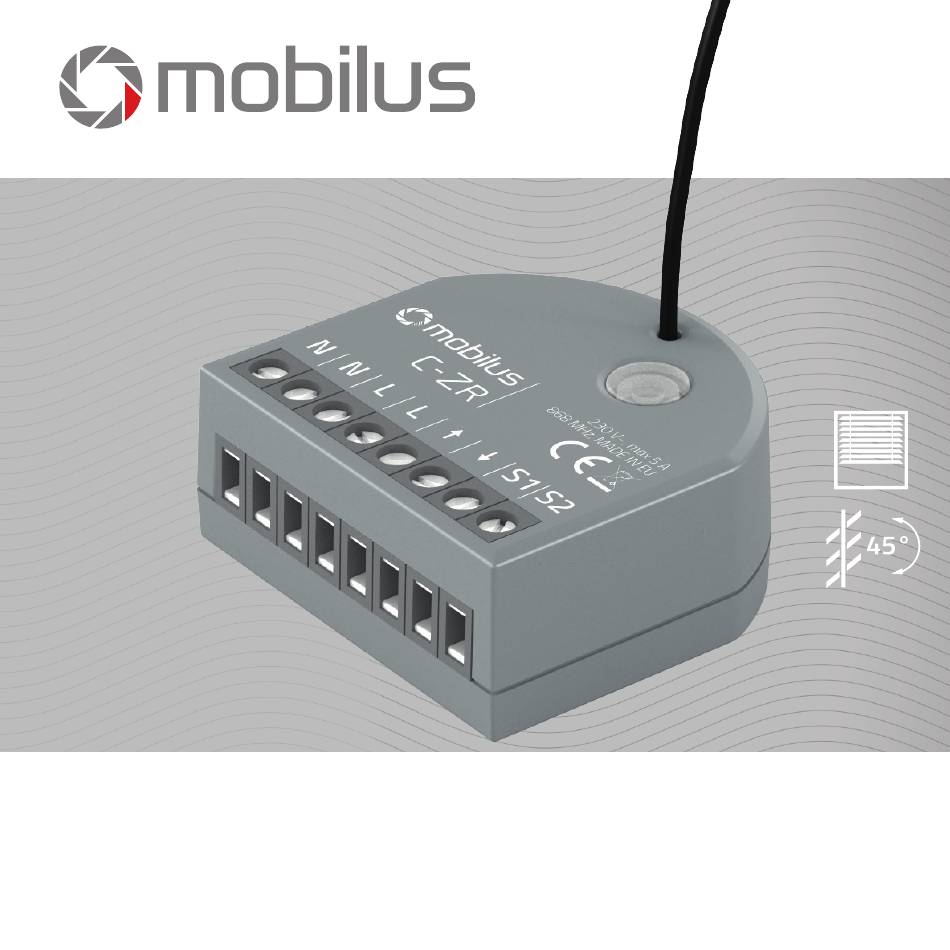

    3. PRODUCT DESCRIPTION 1. Antenna. 2. Illuminated PROGRAMMING BUTTON P. 3. Connection terminals: N - Neutral line; L - phase line; - UP; - DOWN; S1 - switch up; S2 - switch down; 4. TECHNICAL PARAMETERS Power supply voltage: 230 V~; 50 Hz. Radio protocol: COSMO | 2WAY, COSMO.
  • Page 4 5. ENTRY INTO THE MODULE PROGRAMMING MODE Press and hold a programming button on module MOBILUS C-ZR above 5 sec until the connected actuator executes one sequence of noticeable and audible micro movements down / up confirming the entrence of the receiver in the PROGRAMMING MODE.
  • Page 5 COSMO | C-ZR modules remote controls will have com- mon MASTER (shared channel). *MASTER - remote control or channel (in the case of a multi-channel remotes) loaded first into the memory of the MOBILUS C-ZR module. Allows you to program further remote controls.
  • Page 6 7. PROGRAMMING OF THE SECOND AND EVERY OTHER REMOTE CONTROL 1. On the MASTER remote control, simultaneously press and hold the STOP and UP until the connected actuator performs one sequence of noticeable and audible micro movements down / up, the module will release three short beeps, confirming entry into the PROGRAMMING MODE Additionally in this mode every 1 sec.
  • Page 7 WARNING!!! RESTORATION OF FACTORY SETTINGS erases all programmed remotes from the MOBILUS C-ZR module. 1. Enter the PROGRAMMING MODE for the MOBILUS C-ZR module - Fig. 9a 2. In the PROGRAMMING MODE, press and hold the programming key above 5 seconds - Fig.
  • Page 8 2. On the remote control (channel) that you want to delete, press and hold the STOP and UP buttons simultaneously until the connected actuator performs one sequence of noticeable and audible micro movements down / up, MOBILUS C-ZR receives two long beeps onfirming the removal of the pilot code from the actuator memory - Fig.
  • Page 9 CONTINUED 10. REMOVAL OF INDIVIDUAL REMOTES (CHANNELS) WARNING! Repeat step 2 to proceed to remove the next remote control. However, if within 20 sec. no programming operation is started, the receiver automatically returns to operating mode. Return to operating mode can also be performed manually using the MASTER. In such a situation, simultaneously press and hold the STOP and MASTER buttons until the connected actuator executes one sequence of noticeable and audible micro movements down / up.
  • Page 10 12. CONTROL OF THE POSITION OF THE SHUTTER AND SLOPE OF THE LAMELLAS - CONNECTOR Control of the position of the shutter up / down. Briefly pressing the key corresponding to the direction will lower or raise the louver to the appropriate end positions. The operation stops after a short press of the opposite key to the current shutter motion.

  • Page 11: Repeater Function

    If the lamella is in the required position, release the button. 14. REPEATER FUNCTION SIGNAL REPEATER - This feature allows you to expand the radio control area. The MOBILUS C-ZR mo- dule with the repeater function enabled receives signals from the controller or actuators and passes them forward.
  • Page 12 1x BEEEEP 15. BIDIRECTIONALITY MOBILUS C-ZR with two-way communication with the remote control allows control of the state of shutter position ( eg. open, closed, intermediate level ). Proper operation of bidirectional communication requires the use of pilots with bidirectional communication.
  • Page 13 3. To stop the overload detection, repeat step 1. Then press the STOP button on the MASTER control and hold until the actuator connected to the MOBILUS C-ZR module will perform 1 sequence of noticeable and audible micro moves down / up - Fig.
  • Page 14 18. SETTING OF THE SWITCHING TIME OF RELAYS MOBILUS C-ZR allows you to change the relay switching time. This operation is necessary, for example, for very high shutters. By default this time is 120 seconds. 1. Press MASTER at the same time and hold the STOP and UP buttons until the connected...

  • Page 15: Environmental Protection

    19. CHANGING THE MODULE OPERATING MODE The COSMO C-ZR module allows you to work in 3 modes. Set the appropriate operating mode depending on which tubular motor the module is connected to. By default, the module works in I mode. In order to change the operating mode, you must: 1.
  • Page 16 MOBILUS MOTOR Spółka z o.o. Wersja 1.1ENG, 170714 ul. Miętowa 37, 61-680 Poznań, PL tel. +48 61 825 81 11, fax +48 61 825 80 52 www.mobilus.pl VAT NO. PL9721078008...
