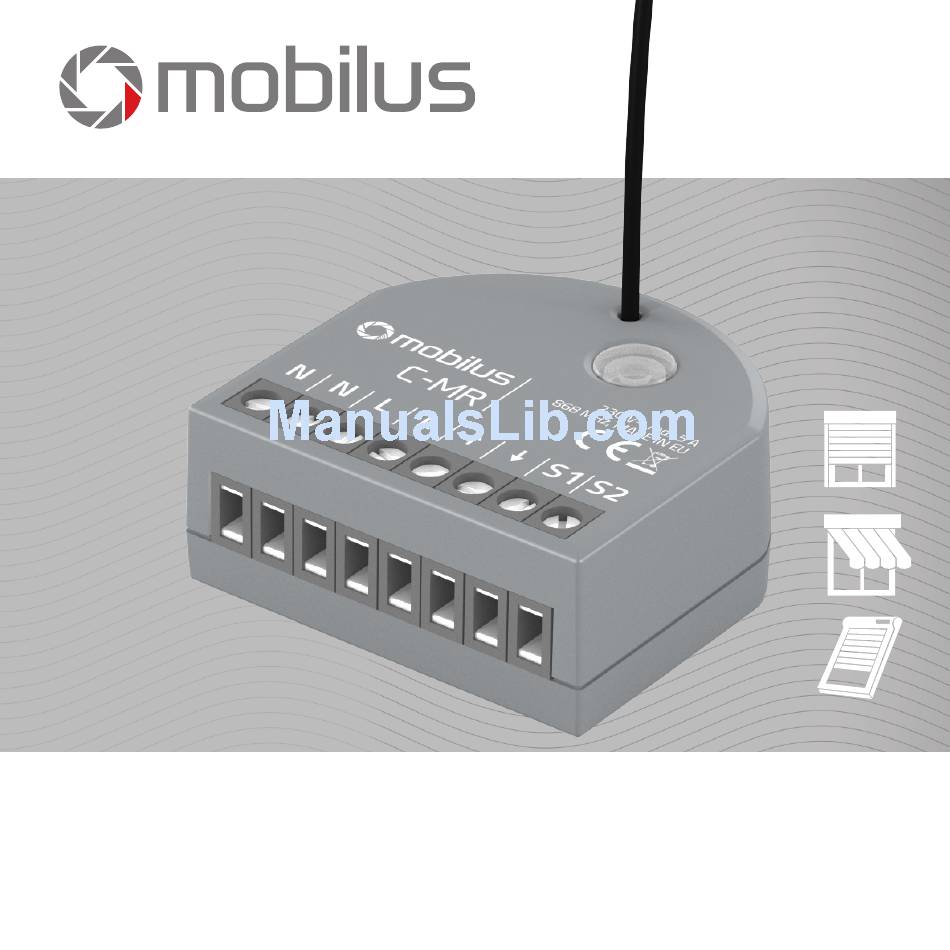

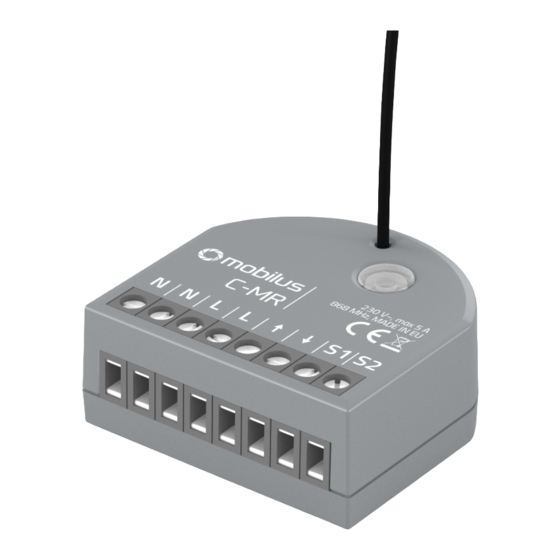

  • Page 1 User Manual of MOBILUS C-MR external receiver www.mobilus.pl...
  • Page 2 • MOBILUS C-MR module is designed to work with all COSMO / COSMO | 2WAY series remote controls. • The range of the radio control is limited by regulations for maximum power of the remote control and the conditions of the installation of the equipment.
  • Page 3 COSMO | C-MR modules remote controls will have common MASTER (shared channel). *MASTER - remote control or channel (in the case of a multi-channel remotes) loaded first into the memory of the MOBILUS C-MR module. Allows you to program further remote controls.
  • Page 4 4. PROGRAMMING OF THE SECOND AND EVERY OTHER REMOTE CONTROL 1. On the MASTER remote control, simultaneously press and hold the STOP and UP until the connected actuator executes one sequence of noticeable and audible micro movements down / up confirming the entrence of the receiver in the PROGRAMMING MODE Additionally in this - Fig.
  • Page 5 WARNING!!! RESTORATION OF FACTORY SETTINGS erases all programmed remotes from the MOBILUS C-MR module. 1. Enter the PROGRAMMING MODE for the MOBILUS C-MR module - Fig. 6a 2. In the PROGRAMMING MODE, press and hold the programming key above 5 seconds - Fig.
  • Page 6 CONTINUED 6. C-MR MODULE RESET - FACTORY SETTINGS Fig. 6 7. REMOVAL OF INDIVIDUAL REMOTES (CHANNELS) It is possible to delete only one of the programmed remotes (not for MASTER remote). To do this: 1. On the MASTER, press simultaneously and hold the STOP and UP buttons until the connected actuator executes one sequence of noticeable and audible micro movements down / up, confirming the receiver’s entrance into the programming mode...
  • Page 7 CONTINUED 7. REMOVAL OF INDIVIDUAL REMOTES (CHANNELS) WARNING! Repeat step 2 to proceed to remove the next remote control. However, if within 20 sec. no programming operation is started, the receiver automatically returns to operating mode. Return to operating mode can also be performed manually using the MASTER. In such a situation, simultaneously press and hold the STOP and MASTER buttons until the connected actuator executes one sequence of noticeable and audible micro movements down / up.
  • Page 8 CONTINUED 8. CONNECTING THE ADDITIONAL SWITCH / DRIVER 230V~ 50Hz Fig. 8.2 230V~ 50Hz Fig. 8.3...
  • Page 9 9. CHANGING THE OPERATION MODE OF CONTROL BUTTONS The MOBILUS C-MR module allows you to change the operating mode of the control buttons I. MODE WITH HOLD UP - Pressing the key causes the roller shutter to be lowered or raised.

  • Page 10: Repeater Function

    10. REPEATER FUNCTION SIGNAL REPEATER - This feature allows you to expand the radio control area. The MOBILUS C-MR module with the repeater function enabled receives signals from the controller or actuators and passes them forward. Thanks to the furthest located receivers which are not within the controller can receive and transmit information through modules located indirectly.
  • Page 11 11. CONTINUOUS MODE - ON / OFF SWITCH 1. Press and hold the programming button on the MOBILUS C-MR receiver until the connected actuator executes one sequence of noticeable and audible micro movements down / up confir- ming the receiver’s entry into the programming mode (every 1 sec the LED flashes).
  • Page 12 14. BI-DIRECTIONAL - OVERLOAD INFORMATION MOBILUS C-MR transmits information to remotes about overload - for example, it may be related to a housing lock occurring at the time of raising or lowering. Mode is factory-setted - it is possible to turn off.
  • Page 13 3. To stop the overload detection, repeat step 1. Then press the STOP button on the MASTER control and hold until the actuator connected to the MOBILUS C-MR module will perform 1 sequence of noticeable and audible micro moves down / up - Fig.
  • Page 14 CONTINUED 15. SETTING OF THE SWITCHING TIME OF RELAYS 2. On the MASTER, press the UP button . The blind will begin to rise. - Fig. 15b 3. At the moment when the user presses the STOP key, the new relay operating time is saved - Fig.
  • Page 15 17. CONTROL REMOTES - „COSMO” SERIES...
