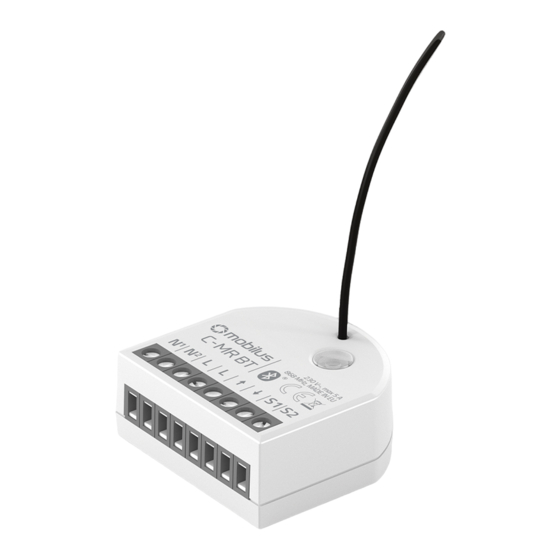

MOBILUS C-MR BT User Manual

External receiver
Hide thumbs

Advertisement

Quick Links

Download this manual
User Manual of MOBILUS C-MR BT
external receiver

Advertisement

loading
Need help?

Need help?

Do you have a question about the C-MR BT and is the answer not in the manual?

Questions and answers

Related Manuals for MOBILUS C-MR BT

Summary of Contents for MOBILUS C-MR BT

  • Page 1 User Manual of MOBILUS C-MR BT external receiver...
  • Page 2 1. CONNECTING THE ADDITIONAL SWITCH / DRIVER Wiring diagram of the module without a key switch . It is possible to connect an external - Fig. 1.1 keyboard connector (without support) , bell connector control via a controller with - Fig. 1.2 - Fig.
  • Page 3 CONT.1. CONNECTING THE ADDITIONAL SWITCH / DRIVER 230V~ 50Hz Fig. 1.3 230V~ 50Hz Fig. 1.4...
  • Page 4 MOBILUS BT modules within the Bluetooth range of your smartphone. 1. In the MOBILUS BT application, press on the device panel to open SETTINGS. 2. Select the SOFTWARE UPDATE item, and then check the availability of the new software version of...
  • Page 5 / up. 5. RESETOWANIE MODUŁU DO USTAWIEŃ FABRYCZNYCH 1. Enter the PROGRAMMING MODE for the MOBILUS C-MRBT module - Fig. 5a 2. In the PROGRAMMING MODE, press and hold the programming key above 5 seconds - Fig.
  • Page 6 6. CHANGE THE DIRECTION OF OPERATION OF THE ACTUATOR BY SWAPPING WIRES 1. If you press the UP direction button in the application, and the armor goes DOWN, you need to change the direction of rotation of the drive. To do this, swap the order of the UP and DOWN wires - Fig.
  • Page 7 Fig. 7 8. CHANGING THE MODE OF OPERATION OF THE CONTROL BUTTONS The MOBILUS C-MRBT module allows you to change the operating mode of the control buttons. I. MODE WITH HOLD UP - Pressing the key causes the roller shutter to be lowered or raised.
  • Page 8 9. ENABLE / DISABLE OVERLOAD DETECTION MOBILUS C-MRBT transmits information to remotes about overload - for example, it may be related to a housing lock occurring at the time of raising or lowering. Mode is factory-setted - it is possible to turn off.
  • Page 9 COSMO | C-MRBT modules remote controls will have common MASTER (shared channel). *MASTER - remote control or channel (in the case of a multi-channel remotes) loaded first into the memory of the MOBILUS C-MRBT module. Allows you to program further remote controls.
  • Page 10 2. PROGRAMMING OF THE SECOND AND EVERY OTHER REMOTE CONTROL 1. On the MASTER remote control, simultaneously press and hold the STOP and UP until the connected actuator executes one sequence of noticeable and audible micro movements down / up confirming the entrence of the receiver in the PROGRAMMING MODE - Fig.
  • Page 11 3. REMOVAL OF INDIVIDUAL REMOTES (CHANNELS) It is possible to delete only one of the programmed remotes (not for MASTER remote). To do this: 1. On the MASTER, press simultaneously and hold the STOP and UP buttons until the connected actuator executes one sequence of noticeable and audible micro movements down / up, confirming the receiver’s entrance into the programming mode - Fig.

  • Page 12: Repeater Function

    Fig. 4 5. REPEATER FUNCTION SIGNAL REPEATER - This feature allows you to expand the radio control area. The MOBILUS C-MRBT module with the repeater function enabled receives signals from the controller or actuators and passes them forward. Thanks to the furthest located receivers which are not within the controller can receive and transmit information through modules located indirectly.
  • Page 13 Fig. 5 6. BIDIRECTIONALITY MOBILUS C-MRBT with two-way communication with the remote control allows control of the state of shutter position ( eg. open, closed, intermediate level, overload detection ). Proper operation of bidirectional communication requires the use of pilots with bidirectional communication.
  • Page 14 8. BI-DIRECTIONAL - OVERLOAD INFORMATION MOBILUS C-MRBT transmits information to remotes about overload - for example, it may be related to a housing lock occurring at the time of raising or lowering. Mode is factory-setted - it is possible to turn off.

  • Page 15: Product Description

    • Read the operating manual carefully before use • MOBILUS C-MRBT module should be powered by 230 V ~, 50 Hz. Its installation should only be carried out by persons with electrical qualifications according to the enclosed electrical diagram in accordance with all applicable regulations.
  • Page 16 Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. MOBILUS MOTOR Spółka z o.o. Wersja 1.0ENG, 161124 ul. Miętowa 37, 61-680 Poznań, PL tel.
