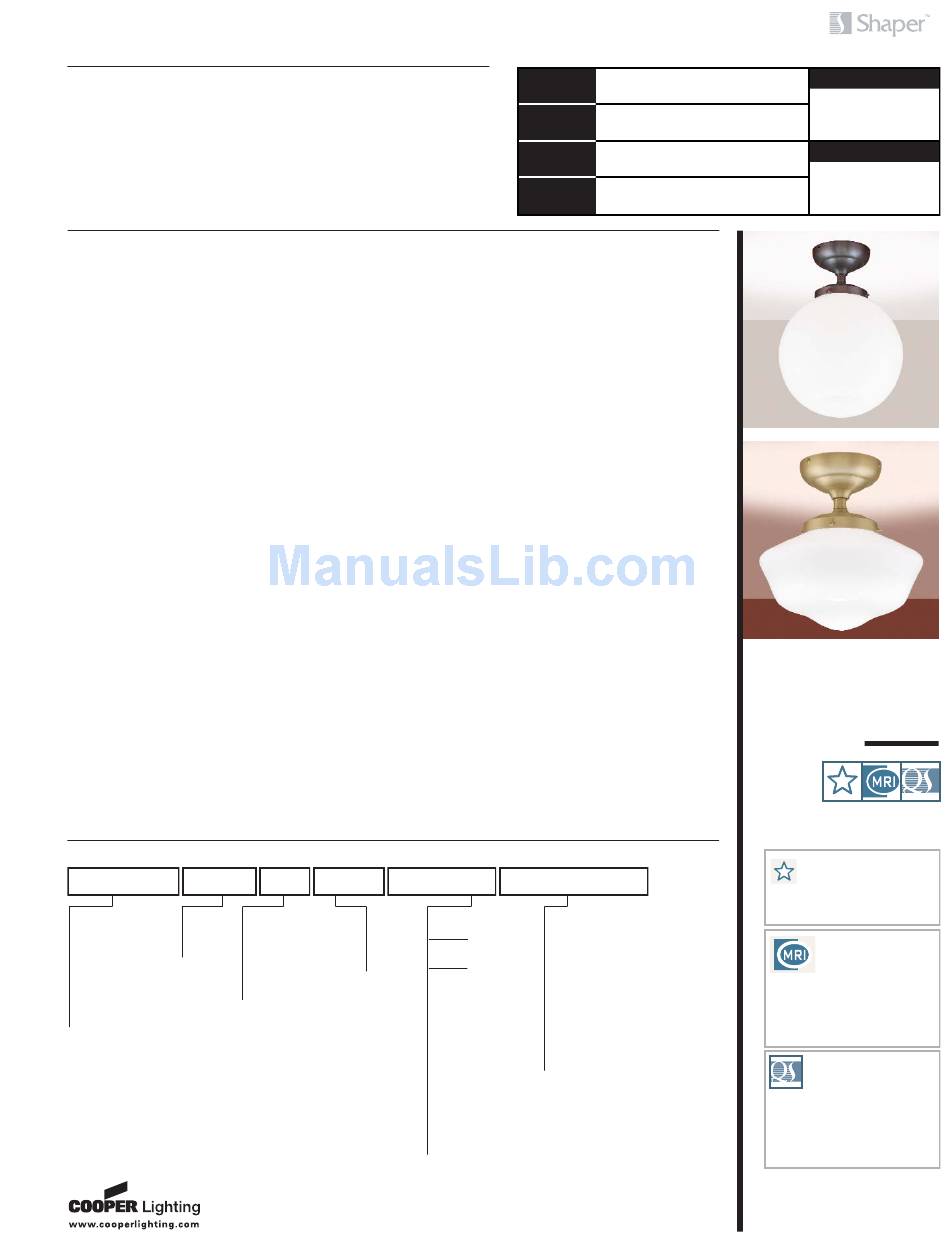

Cooper Lighting Shaper 233 SERIES Specification Sheet

D E S C R I P T I O N
233 "Schoolhouse" and "Sphere" feature classic glass globes and are
available in two sizes.
S P E C I F I C AT I O N F E AT U R E S
M a te ri a l
Painted or chrome plated cold
rolled steel or solid brass canopy
with a white opal glass globe.
F i n i s h
Standard: Matte White (MW).
Premium: Satin Brass (SB),
Polished Brass (PB), Polished
Chrome (PC), Polished Copper
(PCP), Satin Chrome (SC), Satin
Copper (SCP), Oxidized Brass
(OBRS), Satin Nickel (SN),
Polished Nickel (PN), Lacquered
Satin Nickel (SNL), Lacquered
Satin Chrome (SCL), or Custom
Color (CC).
O p t i c s
Refer to
www.shaperlighting.com for
complete photometrics.
B a l l a s t
Integral electronic HPF , multi-volt
120/277V (347V Canada),
thermally protected with end-of-
life circuitry to accommodate the
specified lamp wattage.
O R D E R I N G I N F O R M AT I O N
Sample Number: 233-SH-12-INC/1/100-120V-SNL
Series Size Lamp
12"
233-SP Sphere =
Globe
14"
Surface
Luminaire
233-SH Schoolhouse =
Globe
Surface
Luminaire
Notes:
1
Available in 18".
2
Available with C FL only.
3
Consult the factory f or available options.
4
S upplied by others.
5
Interior applications only.
L a m p / S o cke t
12"; One (1) or two (2) 26W or
32W (GX24q-3) 4-pin triple CFL
lamps or one (1) 100W A-19
lamp.
14": One (1) or two (2) 26W, 32W
(GX24q-3) or 42W (GX24q-4) 4-
pin triple CFL lamps or one (1)
100W A-19 lamp. CFL socket
injection molded plastic. INC
socket fired ceramic rated for
660W-250V. Lamps furnished by
others.
I n s t a l l a t i o n
Supplied with a universal
circular strap for a standard 4"
J-box or plaster ring.
O p t i o n s
CFL Dimming Ballast - Contact
the factory for ballast options
(DM), 16" High Impact
Polyethylene Schoolhouse Globe
(PS), Acrylic Sphere (AG),
Remote Emergency Battery -
Supplied by others (REM), Damp
Location (DL): All Painted
Finishes, Lacquered Satin Nickel
Voltage Finish
CFL/1 (26/32W-Triple) 120V
Standard
2
MW Matte White
CFL/1/42 277V
1
2
CFL/2 (26/32W-Triple) 347V
Premium
CC Custom Color
CFL/2/42
1
INC/1/100 PB Polished Brass
PC Polished Chrome
PCP Polished Copper
PN Polished Nickel
OBRS Oxidized Bras
SB Satin Brass
SC Satin Chrome
SCP Satin Copper
SN Satin Nickel
Specifications and dimensions subject to change without notice.
Consult your representative for additional options and finishes.
Catalog #
Project
Comments
Prepared by
(SNL) and Lacquered Satin
Chrome (SCL) finishes only.
Energy Star Rating - Contact
Factory. MRI Applications (INC
only) - Contact Factory.
L a b e l s
U.L. and C.U.L. approved for
indoor and damp location. See
options for damp location
finishing requirements.
M o d i f i c a t i o n s
Shaper's skilled craftspeople
with their depth of experience
offer the designer the flexibility
to modify standard surface
luminaires for project specific
solutions. Contact the factory
regarding scale options, unique
finishes, mounting, additional
materials/colors, or decorative
detailing.
Options
AG Acrylic Sphere =
=
PS High Impact =
Polyethylene
Schoolhouse
=
Globe
=
DL Damp Location =
=
DM CFL Dimming =
=
3
Ballast
=
REM Remote =
= Emergency
Battery
=
=
=
=
SCL Lacquered Satin Chrome =
SNL Lacquered Satin Nickel =
Shaper now offers a wide variety
of fixtures that can be provided
with an Energy Star Rating.
Lighting fixtures for MRI facilities are
specialized and unique, requiring non-
5
ferrous construction. Fluorescent fixtures
cannot be used due to the ferrous parts in
ballasts and lampholders. Modified incan-
descent fixtures meet the requirements.
4
Shaper's Quick Ship program features
over thirty-four fixtures with finish
options such as Satin Chrome, Natural
Aluminum and Satin Brass, and a wide
variety of lamp selections. All products
ship in five days from receipt of order.
Refer to the Icon Legend
Link on shaperlighting.com.
shaperlighting.com
Type
Date
233 SERIES
S u r f a c e L u m i n a i r e s
" S c h o o l h o u s e " a n d
" S p h e r e "
ENERGY
STAR
MAGNETIC
RESONANCE
IMAGING (MRI)
QUICK
SHIP
(QS)
