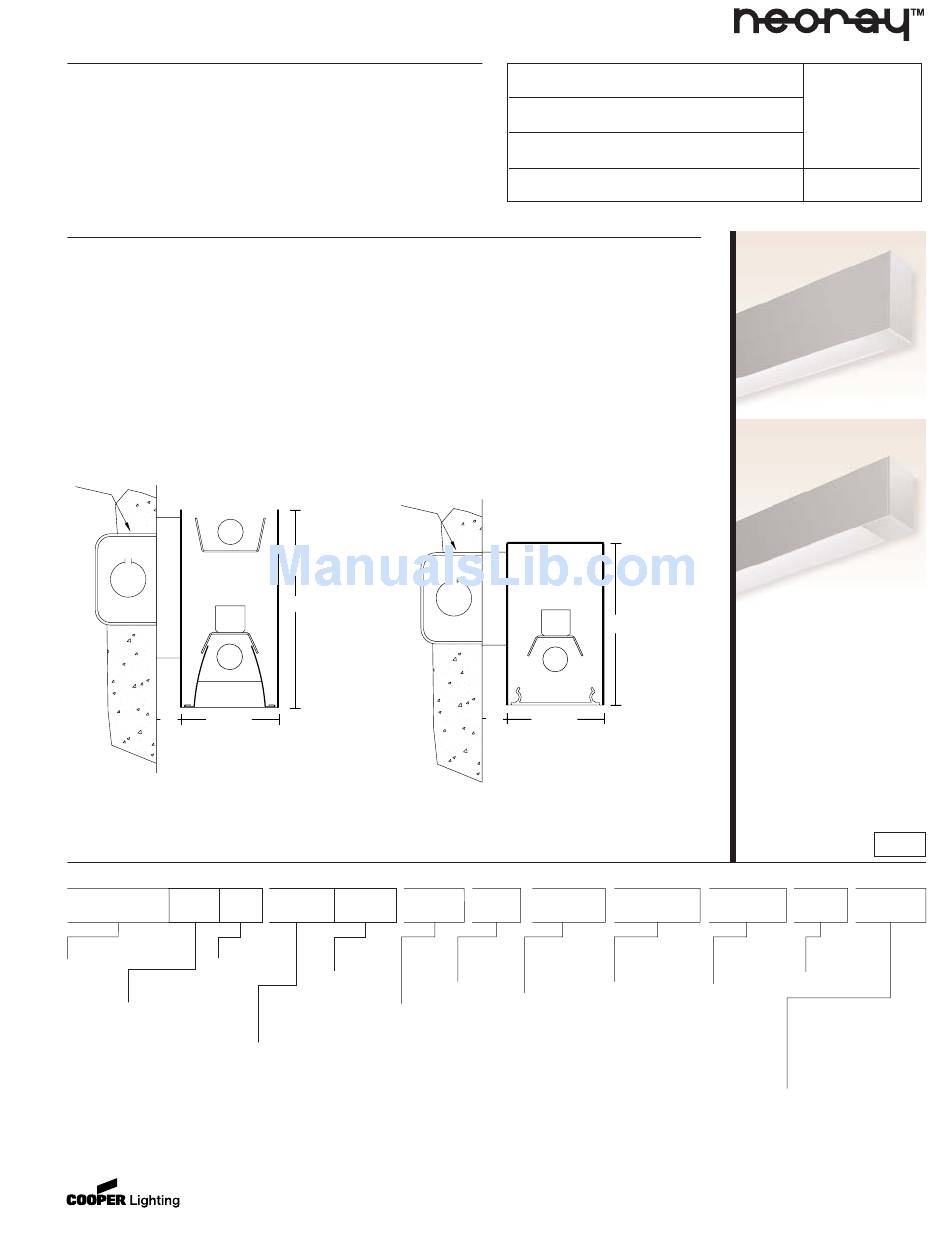

Cooper Lighting Neo-Ray's 22DIW Specification

D E S C R I P T I O N
A return to simplicity, elegance and minimalism...Slender lines of
unbroken light set in an architectural enviroment are what of
essence of Straight and Narrow is all about. Accommodates most
architectural lighting design applications.
Features:
- Straight and Narrow embodies Neo-Ray's critical attention to
architectural detail as well as lighting performance
- Continous and unbroken light
- Extruded aluminum housing offers precise in-line appearance
- Runs are provided to nearest foot
S P E C I F I C AT I O N F E AT U R E S
C o n s t r u c t i o n
Extruded aluminum housing.
Nominal 3', 4', 6' or 8'
illuminated sections.
S h i e l d i n g
Trimless, snap-in white high
transmission acrylic diffuser.
Snap-in high performance
semi-specular or white
parabolic louver.
Side
mounted
electrical box
and blocking
by others
2-3/8"
5/8"
22DIW 1x1 with high
performance louver (S91)
O R D E R I N G I N F O R M AT I O N
S A M P L E N U M B E R : S 2 2 D I W / 1 X 1 T 5 H O / 4 / 1 E B - S I - E M - G L R - S 9 1
W
22
Series Mounting
22=Straight & Narrow W=Wall
Light Output
DI=Direct-Indirect
D=Direct
1 Required voltage information
• For some electronic, dimming and EM battery pack ballast combinations fixture has space limitation (consult factory)
• Not all option combination available, please consult your COOPER Lighting representative for additional information
www.cooperlighting.com
E l e c t r i c a l
120, 277 or universal voltage,
electronic ballast. Fixtures and
electrical components certified
to UL and CUL standards.
F i n i s h
Durable, low gloss, white
powder coated acrylic. Optional
custom finish.
Side
mounted
electrical box
and blocking
by others
5-5/8"
Lamp Type Length
T5 3=3 ft
T5HO 4=4 ft
6=6 ft
8=8 ft
Number of Lamps
XX=Continuous Runs
(not included)
1x1=1 Lamp up/ 1 Lamp down
(DIW only)
1=1 Lamp (DW only)
NOTE: Specifications and dimensions are subject to change without notice.
Catalog #
Project
Comments
Prepared by
M o u n t i n g
Fixture mounts directly to
existing structure over a
standard electrical box (not
supplied by Neo-Ray). Blocking
provided by others.
A D A C o m p l i a n t
4"
2-3/8"
5/8"
22DW with satin
white lens (S92)
Voltage 1 Switching Options
Ballast
1=120V SI=Single Switching
EB=Electronic
2=277V DU=Dual Switching
Ballast (standard)
U=Universal (DIW only)
DB=Dimming
Ballast
Type
Date
Straight & Narrow
22DIW
22DW
T 5 o r T 5 H O
W A L L
D I R E C T- I N D I R E C T ( D I W )
D I R E C T ( D W )
A D A
C O M P L I A N T
Emergency Fusing
EM= Emergency GLR
Pack (consult GMF
1
factory)
Louver Options
S91=High performance louver
S91W=White louver
S91P=High performance
louver with acrylic overlay
S91WP=White louver with
acrylic overlay
S92=Satin white lens
ADN070412
