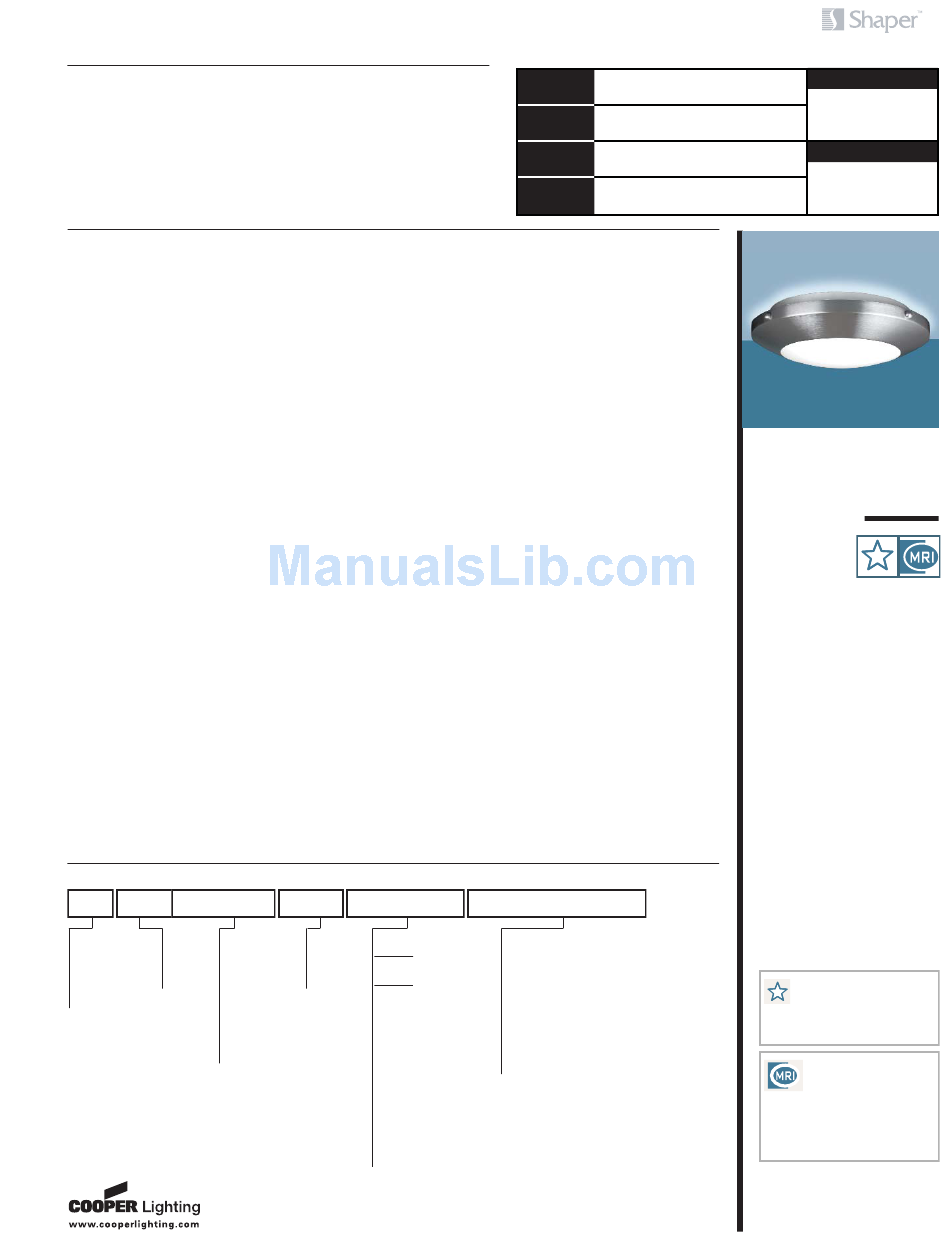

Cooper Lighting Shaper 230 Specification Sheet

D E S C R I P T I O N

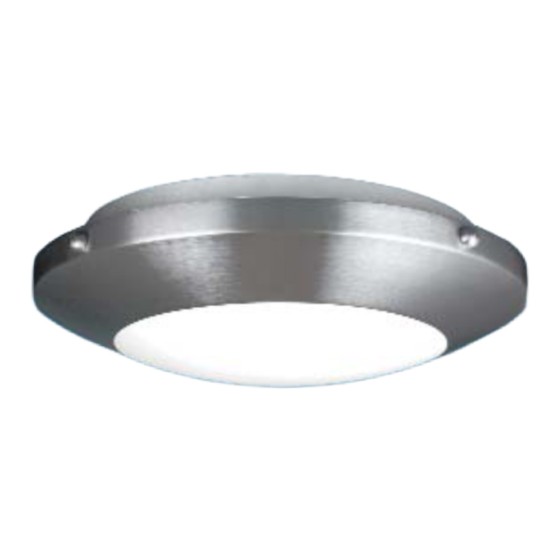

230 Shallow Bowl Surface Luminaire features direct/indirect
illumination with a trim ring.
S P E C I F I C AT I O N F E AT U R E S
M a te ri a l
Cold rolled steel trim and
mounting pan with a matte white
acrylic diffuser.
F i n i s h ( Tri m a n d M o u n t i n g
Pa n )
Standard: Matte White (MW).
Premium: Satin Chrome (SC),
Polished Chrome (PC), Satin
Brass (SB), Polished Brass (PB),
Oxidized Brass (OBRS), Satin
Nickel (SN), Polished Nickel (PN),
Polished Copper (PCP), Satin
Copper (SCP), Lacquered Satin
Nickel (SNL), Lacquered Satin
Chrome (SCL), or Custom Color
(CC).
O p t i c s
Refer to
www.shaperlighting.com for
complete photometrics.
B a l l a s t
Integral electronic HPF , multi-volt
120/277V (347V Canada),
thermally protected with end-of-
life circuitry to accommodate the
specified lamp wattage.
O R D E R I N G I N F O R M AT I O N
Sample Number: 230-30-CFL/2/42-277V-SNL
Series Size Lamp
16" CFL/2
230 Shallow =
(26/32W-
Bowl
24"
Triple)
Surface
30"
w/ Trim
CFL/2/13
Ring
CFL/2/26
CFL/2/42
INC/2/60
Notes:
INC/2/75
1
Available in 24".
2
Available in 30".
3
Available in 16".
4
Available with CFL only.
5
Consult factory for more patterns.
6
Not available in 13W.
7
C onsult the factory for available options.
8
Interior applications only.
L a m p / S o cke t
16": Two (2) 13W (2GX7) 4-pin
low wattage CFL lamps or two (2)
26W (G24q-3) 4-pin quad CFL
lamps or two (2) 60W A-19
lamps.
24": Two (2) 26W, 32W (GX24q-3)
4-pin CFL triple lamps or two (2)
75W A-19 lamps.
30": Two (2) 26W, 32W (GX24q-3)
or 42W (GX24q-4) 4-pin triple
CFL lamps, or two (2) 75W A-19
lamps. CFL socket injection
molded plastic. INC socket fired
ceramic rated for 660W-250V.
Lamps furnished by others.
I n s t a l l a t i o n
Supplied with a universal
circular strap for a standard 4"
J-box or plaster ring. Diffuser
and trim are key slotted for ease
of installation. Diffuser and trim
are key slotted ror
O p t i o n s
Hand Painted Faux Alabaster
Diffuser (FD), Hand Painted Faux
Linen Diffuser (LND), Accent
Balls (ACB), Damp Location (DL):
All Painted Finishes, Lacquered
Voltage Finish
120V
Standard
4
277V MW Matte White =
1, 2
4
347V
Premium
CC Custom Color =
3
OBRS Oxidized Brass =
3
2 PB Polished Brass =
3
PC Polished Chrome =
1, 2
PN Polished Nickel =
PCP Polished Copper =
SCP Satin Copper =
SB Satin Brass =
SC Satin Chrome =
SN Satin Nickel =
SNL Lacquered Satin Nickel =
SCL Lacquered Satin Chrome =
Specifications and dimensions subject to change without notice.
Consult your representative for additional options and finishes.
Catalog #
Project
Comments
Prepared by
Satin Nickel (SNL) and Lacquered
Stain Chrome (SCL) only,
Diamond Cut-Out (DC) - Contact
the factory for more patterns,
CFL Dimming Ballast (26, 32,
42W only) - Contact the factory
for ballast options (DM),
Modified Emergency Remote -
Refer to spec sheet for drawing
(MEM). MRI Applications (INC
only) - Contact Factory. Energy
Star Rating - Consult Factory.
L a b e l s
U.L. and C.U.L. approved for
indoor and damp location. See
options for damp location
finishing requirements.
M o d i f i c a t i o n s
Shaper's skilled craftspeople
with their depth of experience
offer the designer the flexibility
to modify standard surface
luminaires for project specific
solutions. Contact the factory
regarding scale options, unique
finishes, mounting, additional
materials/colors, or decorative
detailing.
Options
ACB Accent Balls =
8
DL Damp Location =
6, 7
DM CFL Dimming Ballast =
MEM Modified Integral
=
Emergency Battery
FD Hand Painted Faux =
Alabaster Diffuser
LND Hand Painted
=
Faux Linen Diffuser
shaperlighting.com
Type
Date
230 SERIES
S u r f a c e L u m i n a i r e
S h a l l o w B o w l
ENERGY
STAR
Shaper now offers a wide variety
of fixtures that can be provided
with an Energy Star Rating.
MAGNETIC
RESONANCE
IMAGING (MRI)
Lighting fixtures for MRI facilities are
specialized and unique, requiring non-
ferrous construction. Fluorescent fixtures
cannot be used due to the ferrous parts in
ballasts and lampholders. Modified incan-
descent fixtures meet the requirements.
Refer to the Icon Legend
Link on shaperlighting.com.
