D E S C R I P T I O N

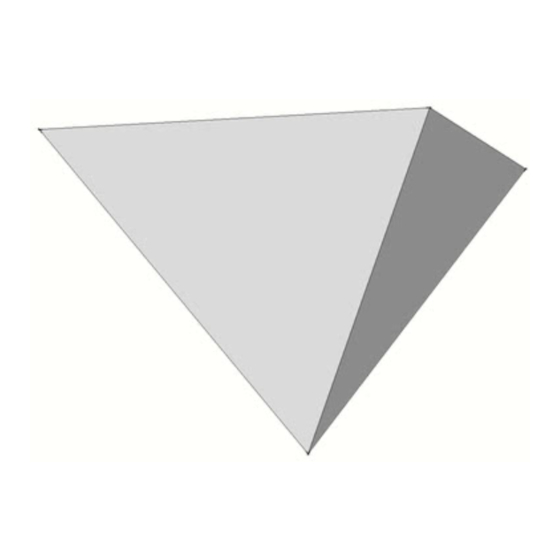

651 features a classic, Half Pyramid geometric with indirect
illumination and an optional open bottom version.
S P E C I F I C AT I O N F E AT U R E S
M a te ri a l
Painted or plated cold-rolled
steel, solid formed bronze for
OBZ finish.
F i n i s h
Standard: Matte White (MW) or
Matte Black (MB). Premium:
Satin Chrome (SC), Polished
Chrome (PC), Satin Brass (SB),
Polished Brass (PB), Oxidized
Bronze (OBZ), Satin Copper
(SCP), (NA) Natural Aluminum,
(SAL) Laquered Satin Aluminum,
Polished Copper (PCP), Satin
Nickel (SN), Polished Nickel (PN),
Laquered Satin Chrome (SCL),
Laquered Satin Nickel (SNL), or
Custom Color (CC).
O p t i c s
Refer to
www.shaperlighting.com for
complete photometrics.
B a l l a s t
Integral electronic HPF , multi-volt
120/277V (347V Canada),
thermally protected with end-of-
life circuitry to accommodate the
specified lamp wattage.
O R D E R I N G I N F O R M AT I O N
Sample Number: 651-CFL/1-277V-PCP
Series
Lamp
651 Half
=
CFL/1
Pyramid
(26/32/42W-Triple)
INC/1/75
Notes:
1
Available with CFL only.
2
Consult the factory for available options.
3
Supplied by others.
L a m p / S o cke t
One (1) 26W (GX24q-3), 32W
(GX24q-3) or 42W (GX24q-4)
4-pin triple tube CFL lamp or one
(1) 75W A-19 lamp. CFL socket
injection molded plastic. INC
socket fired ceramic rated for
660W/250V Lamps furnished by
others.
I n s t a l l a t i o n
Supplied with a universal
circular strap for a standard 4"
J-box or plaster ring.
O p t i o n s
Open Bottom Luminaire (OB),
Hexcel Louver (HL) - 1/4" painted
black aluminum, Decorative
Acrylic Panels (DAP), Luminous
Slots (LSL), Square Perforated
Band (SPB), Dimming Ballast -
Contact the factory for Ballast
Options (DM), Remote
Emergency Battery - supplied by
others (REM). MRI option -
contact factory. Damp Locations
(DL): All Painted finishes,
Laquered Satin Chrome (SCL)
and Laquered Satin Nickel (SNL)
finishes only.
Voltage
Finish
120V
OBZ Hand Oxidized Bronze
=
1
277V
Standard
1
347V
MB Matte Black
=
MW Matte White
=
Premium
CC Custom Color
=
PB Polished Brass
=
PC Polished Chrome
=
PCP Polished Copper
=
PN Polished Nickel
=
SB Satin Brass
=
SC Satin Chrome
=
SCL Lacquered Satin Chrome
=
SCP Satin Copper
=
SN Satin Nickel
=
SNL Lacquered Satin Nickel
=
Specifications and dimensions subject to change without notice.
Consult your representative for additional options and finishes.
Catalog #
Project
Comments
Prepared by
L a b e l s
U.L. and C.U.L approved for
indoor and damp location. See
options for damp location
finishing requirements.
M o d i f i c a t i o n s
Shaper's skilled craftspeople
with their depth of experience
offer the designer the flexibility
to modify standard wall
luminaires for project specific
solutions. Contact the factory
regarding scale options, unique
finishes, mounting, additional
materials/colors, or decorative
detailing.
Options
DAP Decorative Acrylic Panels
=
DL Damp Location
=
2
DM CFL Dimming Ballast
=
OB Open Bottom
=
REM Remote Emergency Battery
=
HL Hexcel Louver
=
shaperlighting.com
Type
Date
651 SERIES
I n t e r i o r W a l l L u m i n a i r e
H a l f P y r a m i d
SUSTAINABLE
DESIGN
Shaper has a long-standing history
of offering environmentally-friendly
fixtures. The copper and bronze alloys
used in our exterior luminaires feature
up to 98% recycled content, contribute
less undesirable air emissions compared
to painted aluminum and are easy to
recycle.
MAGNETIC
RESONANCE
IMAGING (MRI)
3
Lighting fixtures for MRI facilities are
specialized and unique, requiring non-
ferrous construction. Fluorescent fixtures
cannot be used due to the ferrous parts in
ballasts and lampholders. Modified incan-
descent fixtures meet the requirements.
ENERGY
STAR
Shaper now offers a wide variety of
fixtures that can be provided with an
Energy Star Rating.
Refer to the Icon Legend
Link on shaperlighting.com.
