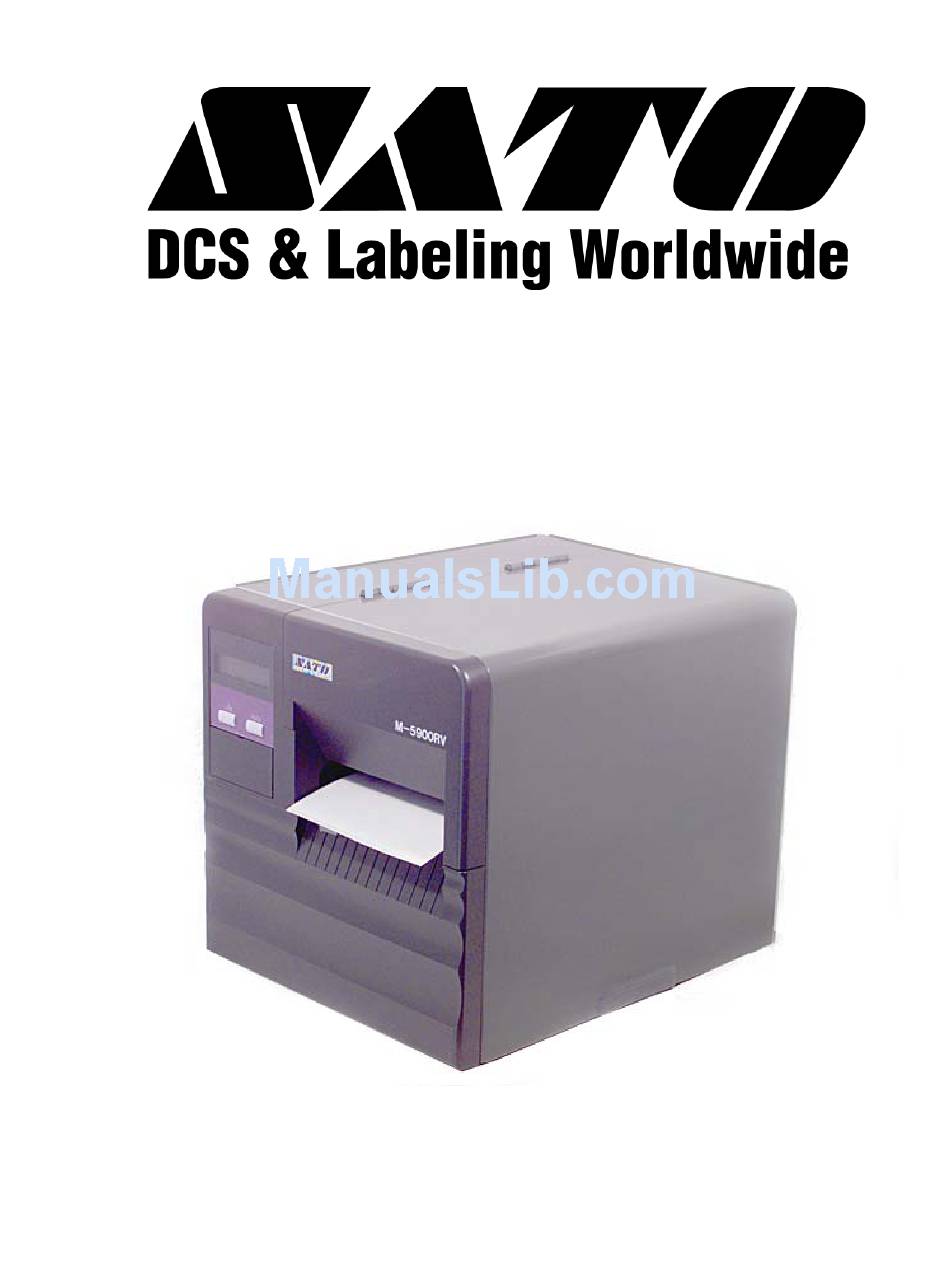

M5900RVe PRINTER

PARTS LIST

PN 9001121B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M5900RVe and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SATO M5900RVe

Summary of Contents for SATO M5900RVe

  • Page 1: Parts List

    M5900RVe PRINTER PARTS LIST PN 9001121B...
  • Page 2 SATO America, Inc. 10350A Nations Ford Road Charlotte, NC 28273 Main Phone: 704.644.1650 Technical Support Hotline: 704.644.1660 Technical Support Fax: 704.644.1662 E-Mail: satosales@satoamerica.com www.satoamerica.com...
  • Page 3 FRAME ASSEMBLY WITH DRIVE TRAIN Figure PL1a, Frame Assembly Figure PL1b, Frame Assembly SATO M5900RVe Parts List PN 9001121B Page 1...

  • Page 4: Part Description

    PAN HEAD SCREW W/NARROW FLAT & LOCK WASHER PR1520300 PLATEN ROLLER PA1680200 RETAINING CLAMP MD4300621 PAN HEAD SCREW W/LARGE FLAT & LOCK WASHER MD4300821 PAN HEAD SCREW W/LARGE FLAT & LOCK WASHER SATO M5900RVe Parts List PART DESCRIPTION PN 9001121B Page 2...
  • Page 5 HOUSING AND ELECTRONICS ASSEMBLIES SATO M5900RVe Parts List Figure PL2a, Housing Cover Assembly Figure PL2b, Housing Cover Assembly PN 9001121B Page 3...
  • Page 6 Figure PL2c, Housing cover Assembly Figure PL2d, Housing Cover Assembly SATO M5900RVe Parts List PN 9001121B Page 4...
  • Page 7 Figure PL2e, Housing Cover Assembly Figure PL2f, Housing Cover Assembly SATO M5900RVe Parts List PN 9001121B Page 5...
  • Page 8 PAN HEAD SCREW, P-TIGHT PH0520800 DIP SWITCH COVER, PLASTIC, GREY PH2520700 PANEL, CLEAR PLASTIC PE1520800 SWITCH BUTTON P00532000 FRONT HOUSING COVER (B), PLASTIC, GREY MH0300821 PAN HEAD SCREW, P-TIGHT PH1523500 RIGHT HOUSING COVER SATO M5900RVe Parts List PART DESCRIPTION PN 9001121B Page 6...
  • Page 9 MAIN CIRCUIT BOARD CJ058651A EEPROM RJ7770200 MEMORY CARD PA3739900 CONNECTOR LOCK PC9730100 LOCK SPRING CV617431A REAL-TIME CLOCK (OPTION) MD4300621 PAN HEAD SCREW RJ7770300 4MB MEMORY CARD (OPTION) RJ4770100 EXPANSION BOARD (OPTION) SATO M5900RVe Parts List PART DESCRIPTION PN 9001121B Page 7...

  • Page 10: Print Assembly

    PRINT ASSEMBLY Figure PL3a, Print Assembly Figure PL3b, Print Assembly SATO M5900RVe Parts List PN 9001121B Page 8...
  • Page 11 MD4300621 PAN HEAD SCREW W/LARGE FLAT & LOCK WASHERS MD4300821 PAN HEAD SCREW W/LARGE FLAT & LOCK WASHERS PE1520100 LEVER HANDLE, PLASTIC, GREEN QC6524200 ADHESIVE LABEL, CAUTION HOT SATO M5900RVe Parts List PRINT ASSEMBLY PART DESCRIPTION PN 9001121B Page 9...

  • Page 12: Dispenser Assembly

    DISPENSER ASSEMBLY Figure PL4a, Dispenser Assembly Figure PL4b, Dispenser Assembly SATO M5900RVe Parts List PN 9001121B Page 10...
  • Page 13 PRESSURE ROLLER SHAFT ND0040030 SNAP RING, TYPE E PA3523200 SENSOR BRACKET, METAL PE1570300 SENSOR BRACKET, PLASTIC, BLACK MH0250621 PAN HEAD SCREW, P-TIGHT RH1522900 DISPENSER SENSOR ASSEMBLY SATO M5900RVe Parts List Figure PL4c, Dispenser Assembly DISPENSER ASSEMBLY PART DESCRIPTION PN 9001121B Page 11...
  • Page 14 PAN HEAD SCREW W/LARGE FLAT & LOCK WASHERS PA3525401 TENSION BRACKET PA3525500 PLATE NUT PE3720100 TENSION ROLLER PB2720600 COLLAR, 4x6x9.2 MD4401621 PAN HEAD SCREW W/LARGE FLAT & LOCK WASHERS SATO M5900RVe Parts List DISPENSER ASSEMBLY PART DESCRIPTION PN 9001121B Page 12...

  • Page 15: Cutter Assembly

    PAN HEAD SCREW, S-TIGHT RJ4520100 CUTTER CIRCUIT BOARD MD4300621 PAN HEAD SCREW W/NARROW FLAT & LOCK WASHERS RH1683400 GROUND CABLE RH1522600 CUTTER WIRING HARNESS SATO M5900RVe Parts List Figure PL5, Cutter Assmbly CUTTER ASSEMBLY PART DESCRIPTION PN 9001121B Page 13...
